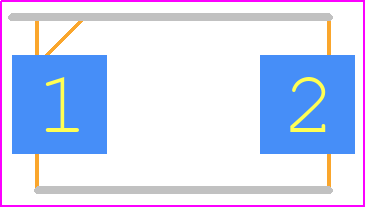

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for T495X476K035ATE230 by KEMET Corporation
Results Overview of T495X476K035ATE230 by KEMET Corporation
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
T495X476K035ATE230 Information
T495X476K035ATE230 by KEMET Corporation is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for T495X476K035ATE230
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y7437
|
Newark | Cap, 47Μf, 35V, 10%, Capacitance:47Μf, Voltage Rating:35V, Tantalum Capacitor Case:2917 [7343 Metric], Product Range:T495 Series, Capacitance Tolerance:± 10%, Operating Temperature Min:-55°C, Operating Temperature Max:125°C, Rohs Compliant: Yes |Kemet T495X476K035ATE230 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 4 |
|
$0.3320 | Buy Now |
|
DISTI #
14M3640
|
Newark | Capacitor, Tant, 47Uf, 35V, 2917, Capacitance:47Μf, Voltage(Dc):35V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 10%, Esr:0.23Ohm, Manufacturer Size Code:X, Product Length:7.3Mm, Product Width:4.3Mm Rohs Compliant: Yes |Kemet T495X476K035ATE230 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9750 / $1.3100 | Buy Now |
|
DISTI #
399-10510-1-ND
|
DigiKey | CAP TANT 47UF 10% 35V 2917 Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5402 In Stock |
|
$1.0613 / $2.6000 | Buy Now |
|
DISTI #
81Y7437
|
Avnet Americas | Surface Mount Tantalum Capacitor, MnO2, 47 ?F, 35 V, 2917 [7343 Metric], ? 10%, 0.23 ohm, X - Product that comes on tape, but is not reeled (Alt: 81Y7437) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 38 Weeks, 4 Days Container: Ammo Pack | 4 Partner Stock |
|
$1.7500 / $2.8400 | Buy Now |
|
DISTI #
T495X476K035ATE230
|
Avnet Americas | Surface Mount Tantalum Capacitor, MnO2, 47 ?F, 35 V, 2917 [7343 Metric], ? 10%, 0.23 ohm, X - Tape and Reel (Alt: T495X476K035ATE230) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.7904 / $0.8411 | Buy Now |
|
DISTI #
80-T495X476K35ATE230
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 35V 47uF 2917 10% ESR=230mOhms RoHS: Compliant | 18827 |
|
$1.0600 / $2.6000 | Buy Now |
|
DISTI #
E02:0323_07007758
|
Arrow Electronics | Cap Tant Solid 47uF 35V X CASE 10%( 7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.23 Ohm 125°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Date Code: 2509 | Europe - 18500 |
|
$1.0466 / $1.2185 | Buy Now |
|
DISTI #
V36:1790_07470217
|
Arrow Electronics | Cap Tant Solid 47uF 35V X CASE 10%( 7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.23 Ohm 125°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 14 Weeks Date Code: 2443 | Americas - 4500 |
|
$1.0263 / $1.1952 | Buy Now |
|
DISTI #
14007235
|
Verical | Cap Tant Solid 47uF 35V X CASE 10%( 7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.23 Ohm 125°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 18500 |
|
$1.0418 / $1.2129 | Buy Now |
|
DISTI #
87344999
|
Verical | Cap Tant Solid 47uF 35V X CASE 10%( 7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.23 Ohm 125°C T/R RoHS: Compliant Min Qty: 30 Package Multiple: 1 | Americas - 2067 |
|
$1.4000 / $1.9647 | Buy Now |
Part Details for T495X476K035ATE230
T495X476K035ATE230 CAD Models
T495X476K035ATE230 Part Data Attributes
|
|
T495X476K035ATE230
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
T495X476K035ATE230
KEMET Corporation
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Schedule B Code | 8532.21.00.50 | |
| Factory Lead Time | 38 Weeks, 4 Days | |
| Samacsys Description | T495, Tantalum, MnO2 Tantalum, Commercial Grade, 47 uF, 10%, 35 VDC, 125°C, -55°C, 85°C, SMD, MnO2, Molded, Low ESR, 8 % , 230 mOhms, 16.5 uA, 652.04 mg, 7343, 4mm, Height Max = 4.3mm, 500, 156 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Samacsys Modified On | 2023-03-07 09:15:55 | |
| Total Weight | 585.5 | |
| Category CO2 Kg | 3.5 | |
| CO2 | 2049.25 | |
| Compliance Temperature Grade | Military: -55C to +125C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2025-01-21 | |
| CAS Accounted for Wt | 98 | |
| CA Prop 65 Presence | YES | |
| CA Prop 65 CAS Numbers | 7440-02-0 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.22 | |
| Additional Feature | RIPPLE CURRENT AND ESR IS MEASURED AT 100KHZ | |
| Capacitance | 47 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 230 mΩ | |
| Height | 4 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.0165 mA | |
| Length | 7.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Polarity | POLARIZED | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 35 V | |
| Ripple Current | 135.6 mA | |
| Size Code | 2917 | |
| Surface Mount | YES | |
| Tan Delta | 0.08 | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | J BEND | |
| Width | 4.3 mm |
Alternate Parts for T495X476K035ATE230
This table gives cross-reference parts and alternative options found for T495X476K035ATE230. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T495X476K035ATE230, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| T495X476K035AGE185 | KEMET Corporation | $4.8792 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP | T495X476K035ATE230 vs T495X476K035AGE185 |
| T495X476K035AHE300 | KEMET Corporation | $5.3358 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP | T495X476K035ATE230 vs T495X476K035AHE300 |
| T495X476K035AHE200 | KEMET Corporation | $5.5124 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP | T495X476K035ATE230 vs T495X476K035AHE200 |
| T510X476K035AHE055 | KEMET Corporation | $6.4039 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP | T495X476K035ATE230 vs T510X476K035AHE055 |
| T510X476K035ATE065 | KEMET Corporation | $6.9255 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT | T495X476K035ATE230 vs T510X476K035ATE065 |
| T513X476K035AH6120 | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, 2917 | T495X476K035ATE230 vs T513X476K035AH6120 |
| 293D476X9035E2TE3 | Vishay Intertechnologies | Check for Price | Tantalum Capacitor, Tantalum (dry/solid), | T495X476K035ATE230 vs 293D476X9035E2TE3 |
| T491X476K035AG | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP | T495X476K035ATE230 vs T491X476K035AG |
| T491X476K035AH | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP, HALOGEN FREE EPOXY | T495X476K035ATE230 vs T491X476K035AH |
| T495X476K035AHE185 | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 2917, CHIP | T495X476K035ATE230 vs T495X476K035AHE185 |
T495X476K035ATE230 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the T495X476K035ATE230 is 260°C for a maximum of 10 seconds.
-
Yes, the T495X476K035ATE230 is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
-
The ESR of the T495X476K035ATE230 is 0.015 ohms at 100 kHz.
-
Yes, the T495X476K035ATE230 is designed to withstand high-vibration environments, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.
-
Yes, the T495X476K035ATE230 has a maximum operating temperature of 125°C, making it suitable for use in high-temperature applications.
