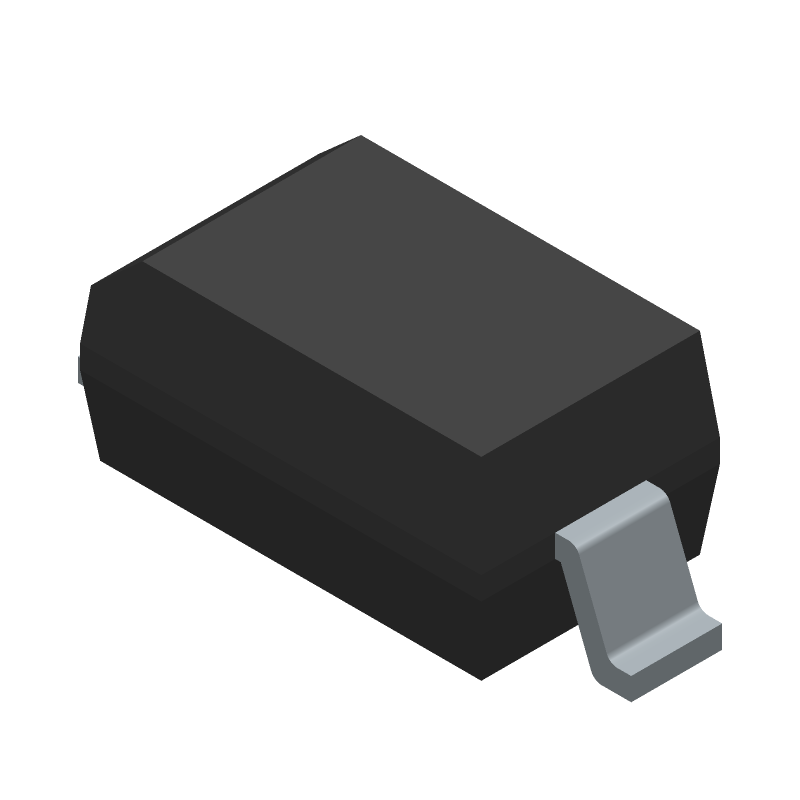

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SZMMSZ3V3T1G by onsemi
Results Overview of SZMMSZ3V3T1G by onsemi
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
SZMMSZ3V3T1G Information
SZMMSZ3V3T1G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for SZMMSZ3V3T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AC5200
|
Newark | Zener Diode, Aec-Q101, 3.3V, 0.5W, Sod123, Zener Voltage Nom:3.3V, Power Dissipation:500Mw, Diode Case Style:Sod-123, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Szmmszxxxt1G Seriesrohs Compliant: Yes |Onsemi SZMMSZ3V3T1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7844 |
|
$0.1380 / $0.3330 | Buy Now |
|
DISTI #
76T7685
|
Newark | Zen Sod123 Reg 0.5W Spcl/ Reel |Onsemi SZMMSZ3V3T1G RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0450 / $0.0630 | Buy Now |
|
DISTI #
SZMMSZ3V3T1GOSCT-ND
|
DigiKey | DIODE ZENER 3.3V 500MW SOD123 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7548 In Stock |
|
$0.0404 / $0.3100 | Buy Now |
|
DISTI #
SZMMSZ3V3T1G
|
Avnet Americas | Diode Zener Single 3.3V 5% 500mW 2-Pin SOD-123 T/R - Tape and Reel (Alt: SZMMSZ3V3T1G) RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.0399 / $0.0437 | Buy Now |
|
DISTI #
863-SZMMSZ3V3T1G
|
Mouser Electronics | Zener Diodes ZEN REG 0.5W SPCL RoHS: Compliant | 7678 |
|
$0.0400 / $0.3100 | Buy Now |
|
DISTI #
V79:2366_26240812
|
Arrow Electronics | Diode Zener Single 3.3V 5% 500mW 2-Pin SOD-123 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1824 | Americas - 112 |
|
$0.0386 / $0.0465 | Buy Now |
|
|
Onlinecomponents.com | SZMMSZ3V3T1G Zener Diode, 3.3V 5% 500 mW SMT 2-Pin SOD-123 RoHS: Compliant | 0 |
|
$0.0387 / $0.0461 | Buy Now |
|
DISTI #
SZMMSZ3V3T1G
|
TME | Diode: Zener, 0.5W, 3.3V, SMD, reel,tape, SOD123, single diode Min Qty: 1 | 0 |
|
$0.0501 / $0.4001 | RFQ |
|
DISTI #
SZMMSZ3V3T1G
|
Avnet Asia | Diode Zener Single 3.3V 5% 500mW 2-Pin SOD-123 T/R (Alt: SZMMSZ3V3T1G) RoHS: Compliant Min Qty: 18000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days | 0 |
|
$0.0380 / $0.0425 | Buy Now |
|
DISTI #
SZMMSZ3V3T1G
|
Avnet Silica | Diode Zener Single 33V 5 500mW 2Pin SOD123 TR (Alt: SZMMSZ3V3T1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for SZMMSZ3V3T1G
SZMMSZ3V3T1G CAD Models
SZMMSZ3V3T1G Part Data Attributes
|
|
SZMMSZ3V3T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
SZMMSZ3V3T1G
onsemi
500 mW; 5% Zener Diode Voltage Regulator 3.3 V, SOD-123 2 LEAD, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 425-04 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 95 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
SZMMSZ3V3T1G Frequently Asked Questions (FAQ)
-
The recommended land pattern for the SZMMSZ3V3T1G is a rectangular pad with a size of 0.6 mm x 0.3 mm, with a solder mask opening of 0.5 mm x 0.2 mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
-
The SZMMSZ3V3T1G has a thermal resistance of 250°C/W. To handle thermal considerations, ensure good thermal conduction by using a thermal pad or a heat sink, and keep the component away from heat sources. Also, ensure good airflow around the component to prevent overheating.
-
The recommended soldering profile for the SZMMSZ3V3T1G is a peak temperature of 240°C, with a dwell time of 30-60 seconds above 217°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
-
To ensure the reliability of the SZMMSZ3V3T1G in high-reliability applications, follow the recommended storage and handling procedures, and ensure that the component is operated within its specified ratings. Also, perform thorough testing and inspection during the manufacturing process to detect any defects or anomalies.
-
Yes, the SZMMSZ3V3T1G is AEC-Q101 qualified, making it suitable for use in automotive applications. However, ensure that the component is operated within its specified ratings and follows the recommended usage guidelines.
