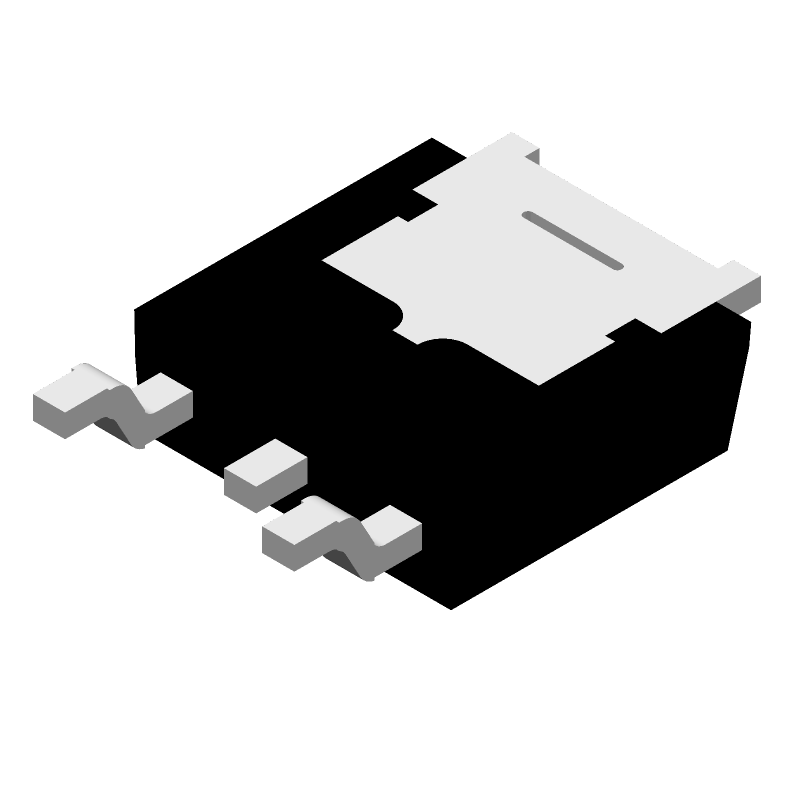

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SUD70090E-GE3 by Vishay Intertechnologies
Results Overview of SUD70090E-GE3 by Vishay Intertechnologies
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
SUD70090E-GE3 Information
SUD70090E-GE3 by Vishay Intertechnologies is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SUD70090E-GE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AJ0779
|
Newark | Mosfet, N-Ch, 100V, 50A, To-252 Rohs Compliant: Yes |Vishay SUD70090E-GE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3578 |
|
$1.4000 / $2.0400 | Buy Now |
|
DISTI #
SUD70090E-GE3
|
Avnet Americas | N-CHANNEL 100-V (D-S) MOSFET - Tape and Reel (Alt: SUD70090E-GE3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 28 Weeks, 0 Days Container: Reel | 0 |
|
$0.6106 / $0.6362 | Buy Now |
|
DISTI #
78-SUD70090E-GE3
|
Mouser Electronics | MOSFETs 100V Vds 20V Vgs DPAK (TO-252) RoHS: Compliant | 20622 |
|
$0.6610 / $1.2600 | Buy Now |
|
DISTI #
V72:2272_17583178
|
Arrow Electronics | Trans MOSFET N-CH 100V 50A 3-Pin(2+Tab) DPAK Min Qty: 1 Package Multiple: 1 Lead time: 28 Weeks Date Code: 2404 Container: Cut Strips | Americas - 1498 |
|
$0.6832 / $0.7667 | Buy Now |
|
DISTI #
77793310
|
Verical | Trans MOSFET N-CH 100V 50A 3-Pin(2+Tab) DPAK Min Qty: 9 Package Multiple: 1 Date Code: 2404 | Americas - 1498 |
|
$0.6832 / $0.7133 | Buy Now |
|
DISTI #
SUD70090E-GE3
|
TTI | MOSFETs 100V Vds 20V Vgs DPAK (TO-252) RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel |
Americas - 2000 In Stock |
|
$0.6350 / $0.6640 | Buy Now |
|
DISTI #
SUD70090E-GE3
|
TME | Transistor: N-MOSFET, TrenchFET®, unipolar, 100V, 50A, Idm: 120A Min Qty: 2000 | 0 |
|
$1.3200 | RFQ |
|
DISTI #
SUD70090E-GE3
|
IBS Electronics | N-CHANNEL 100 V 8.9 MOHM 125 W SMT THUNDERFET POWER MOSFET - TO-252 Min Qty: 2000 Package Multiple: 1 | 8000 |
|
$0.8580 / $0.8775 | Buy Now |
|
DISTI #
SUD70090E-GE3
|
Avnet Asia | N-CHANNEL 100-V (D-S) MOSFET (Alt: SUD70090E-GE3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 31 Weeks, 0 Days | 0 |
|
$0.9580 / $1.0794 | Buy Now |
|
DISTI #
SUD70090E-GE3
|
EBV Elektronik | NCHANNEL 100V DS MOSFET (Alt: SUD70090E-GE3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 29 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for SUD70090E-GE3
SUD70090E-GE3 CAD Models
SUD70090E-GE3 Part Data Attributes
|
|
SUD70090E-GE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
SUD70090E-GE3
Vishay Intertechnologies
Power Field-Effect Transistor, 50A I(D), 100V, 0.0089ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 28 Weeks | |
| Date Of Intro | 2016-05-01 | |
| Samacsys Manufacturer | Vishay | |
| Avalanche Energy Rating (Eas) | 80 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 100 V | |
| Drain Current-Max (ID) | 50 A | |
| Drain-source On Resistance-Max | 0.0089 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-252 | |
| JESD-30 Code | R-PSSO-G2 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 120 A | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
SUD70090E-GE3 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the SUD70090E-GE3 is a pad size of 5.5mm x 4.5mm with a 1.5mm x 1.5mm thermal pad in the center.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during soldering.
-
The maximum operating temperature range for the SUD70090E-GE3 is -40°C to 150°C, with a maximum junction temperature of 150°C.
-
To handle ESD protection, use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container. Avoid touching the device's pins or leads during handling.
-
The recommended storage condition for the SUD70090E-GE3 is in a dry, cool place with a relative humidity of 60% or less, and a temperature range of 20°C to 30°C.
