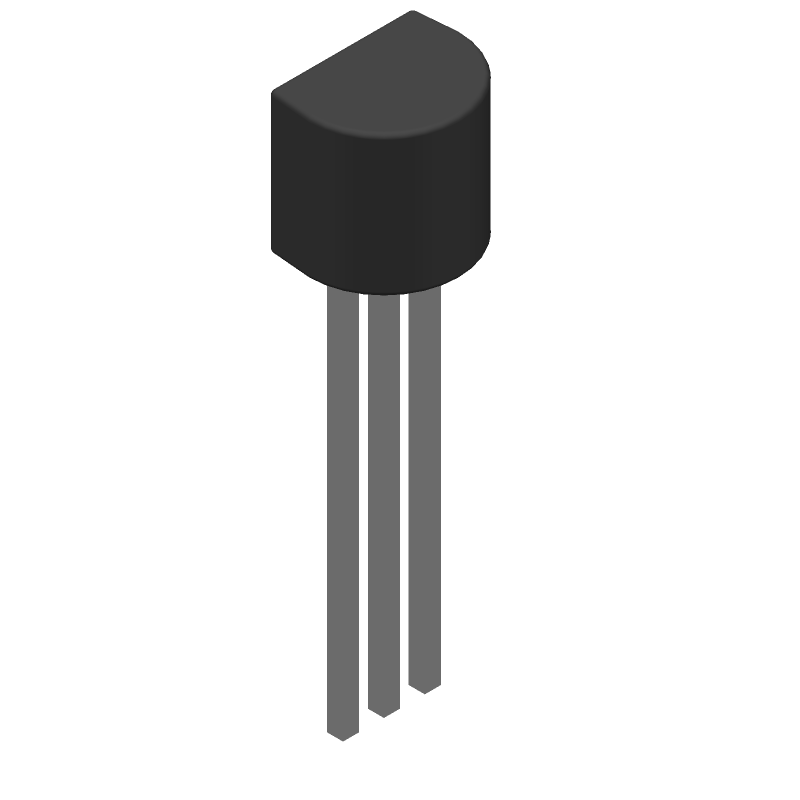

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STX93003 by STMicroelectronics
Results Overview of STX93003 by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STX93003 Information
STX93003 by STMicroelectronics is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STX93003
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41Y6027
|
Newark | Bipolar (Bjt) Single Transistor, Pnp, 400 V, 1.5 W, 500 Ma, 25 |Stmicroelectronics STX93003 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
497-12373-ND
|
DigiKey | TRANS PNP 400V 1A TO-92 Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
34871 In Stock |
|
$0.2035 / $0.9600 | Buy Now |
|
DISTI #
STX93003
|
Avnet Americas | Trans GP BJT PNP 400V 1A 3-Pin TO-92 Bag - Bag (Alt: STX93003) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Bag | 0 |
|
$0.1801 / $0.1915 | Buy Now |
|
|
STMicroelectronics | High voltage fast-switching PNP power transistor COO: China RoHS: Compliant Min Qty: 1 | 7364 |
|
$0.2900 / $0.8000 | Buy Now |
|
DISTI #
STX93003
|
Avnet Silica | Trans GP BJT PNP 400V 1A 3Pin TO92 Bag (Alt: STX93003) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STX93003
|
EBV Elektronik | Trans GP BJT PNP 400V 1A 3Pin TO92 Bag (Alt: STX93003) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for STX93003
STX93003 CAD Models
STX93003 Part Data Attributes
|
|
STX93003
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STX93003
STMicroelectronics
High voltage fast-switching PNP power transistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-92 | |
| Package Description | TO-92, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Emitter Voltage-Max | 400 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 4 | |
| JEDEC-95 Code | TO-92 | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 1.5 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
