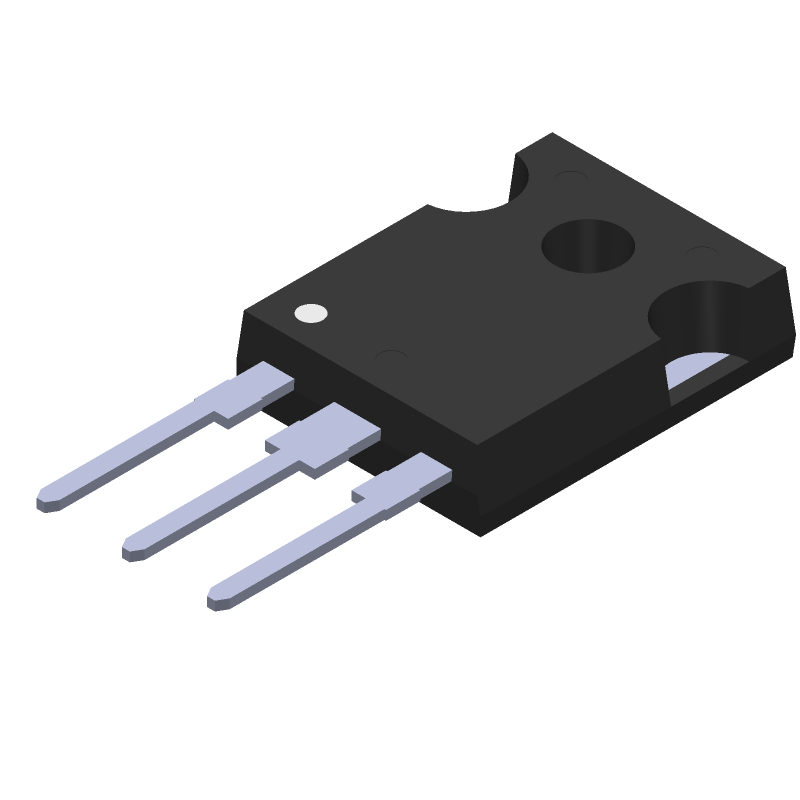

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STW9N150 by STMicroelectronics
Results Overview of STW9N150 by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
STW9N150 Information
STW9N150 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STW9N150
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94T3553
|
Newark | Mosfet Transistor, N Channel, 8 A, 1.5 Kv, 1.8 Ohm, 10 V, 4 V Rohs Compliant: Yes |Stmicroelectronics STW9N150 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 5373 |
|
$7.4700 / $11.9600 | Buy Now |
|
DISTI #
497-8465-5-ND
|
DigiKey | MOSFET N-CH 1500V 8A TO247-3 Min Qty: 1 Lead time: 16 Weeks Container: Tube |
210 In Stock |
|
$4.5625 / $9.3700 | Buy Now |
|
DISTI #
STW9N150
|
Avnet Americas | Power MOSFET, N Channel, 1.5 kV, 8 A, 2.5 Ohm, TO-247, 3 Pins, Through Hole - Rail/Tube (Alt: STW9N150) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 16 Weeks, 0 Days Container: Tube | 0 |
|
$4.3452 / $4.6203 | Buy Now |
|
DISTI #
511-STW9N150
|
Mouser Electronics | MOSFETs N-CH 1500V HI-VOLT PWRMESH PWR MOSFET RoHS: Compliant | 239 |
|
$4.5600 / $9.2700 | Buy Now |
|
DISTI #
E02:0323_00209583
|
Arrow Electronics | Trans MOSFET N-CH 1.5KV 8A 3-Pin(3+Tab) TO-247 Tube Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2515 | Europe - 11115 |
|
$4.7661 / $9.1775 | Buy Now |
|
|
STMicroelectronics | N-channel 1500 V, 1.8 Ohm typ., 8 A PowerMESH Power MOSFET in a TO-247 package RoHS: Compliant Min Qty: 1 | 238 |
|
$4.4800 / $9.1300 | Buy Now |
|
DISTI #
88210410
|
Verical | Trans MOSFET N-CH 1.5KV 8A 3-Pin(3+Tab) TO-247 Tube Min Qty: 2 Package Multiple: 1 Date Code: 2515 | Americas - 11115 |
|
$4.7721 / $9.1890 | Buy Now |
|
DISTI #
79925180
|
Verical | Trans MOSFET N-CH 1.5KV 8A 3-Pin(3+Tab) TO-247 Tube Min Qty: 5 Package Multiple: 1 | Americas - 1033 |
|
$5.2100 / $7.9800 | Buy Now |
|
|
Bristol Electronics | 2 |
|
RFQ | ||
|
|
Quest Components | POWER FIELD-EFFECT TRANSISTOR, 8A I(D), 1500V, 2.5OHM, 1-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, TO-247 | 1 |
|
$12.5000 / $15.0000 | Buy Now |
Part Details for STW9N150
STW9N150 CAD Models
STW9N150 Part Data Attributes
|
|
STW9N150
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STW9N150
STMicroelectronics
N-channel 1500 V, 1.8 Ohm typ., 8 A PowerMESH Power MOSFET in a TO-247 package
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-247 | |
| Package Description | ROHS COMPLIANT, PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Avalanche Energy Rating (Eas) | 720 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 1500 V | |
| Drain Current-Max (ID) | 8 A | |
| Drain-source On Resistance-Max | 2.5 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-247 | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 320 W | |
| Pulsed Drain Current-Max (IDM) | 32 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
STW9N150 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the STW9N150 is 150 kHz, but it can be operated up to 200 kHz with some derating of the output power.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and to keep the output voltage sensing lines as short as possible to minimize noise and oscillations.
-
The maximum input voltage that the STW9N150 can handle is 28V, but it is recommended to operate it within the specified input voltage range of 8-18V for optimal performance and reliability.
-
The STW9N150 has built-in overcurrent protection and thermal shutdown features. However, it is recommended to add external protection circuits, such as fuses or PTC resistors, to prevent damage from excessive current or temperature.
-
The STW9N150 is rated for operation up to 150°C, but its performance and reliability may degrade at high temperatures. It is recommended to derate the output power and ensure good thermal management to prevent overheating.
