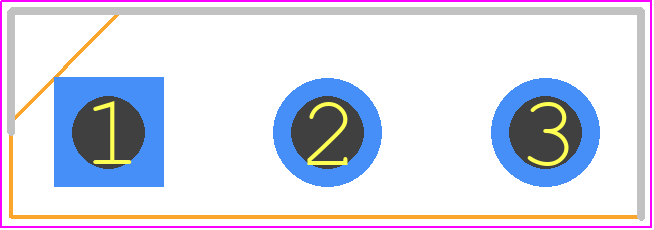

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STTH61W04SW by STMicroelectronics
Results Overview of STTH61W04SW by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STTH61W04SW Information
STTH61W04SW by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH61W04SW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97W3067
|
Newark | Rectifier Diode, Single, 400 V, 60 A, 1.35 V, 55 Ns, 500 A Rohs Compliant: Yes |Stmicroelectronics STTH61W04SW RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 412 |
|
$2.3700 / $4.7100 | Buy Now |
|
DISTI #
497-13398-ND
|
DigiKey | DIODE STANDARD 400V 60A TO247 Min Qty: 1 Lead time: 25 Weeks Container: Tube |
240 In Stock |
|
$1.4111 / $3.7700 | Buy Now |
|
DISTI #
STTH61W04SW
|
Avnet Americas | Diode Switching 400V 60A 3-Pin(3+Tab) TO-247 Tube - Rail/Tube (Alt: STTH61W04SW) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$1.4111 / $1.5052 | Buy Now |
|
DISTI #
511-STTH61W04SW
|
Mouser Electronics | Rectifiers Turbo 2 ultrafast 60A 400V 40ns 0.93VF RoHS: Compliant | 438 |
|
$1.4100 / $3.7300 | Buy Now |
|
DISTI #
E02:0323_06872238
|
Arrow Electronics | Diode Switching 400V 60A 3-Pin(3+Tab) TO-247 Tube Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2416 | Europe - 734 |
|
$1.4661 | Buy Now |
|
|
STMicroelectronics | 400 V, 60 A single 3-lead TO-247 Ultrafast Rectifier RoHS: Compliant Min Qty: 1 | 438 |
|
$1.4300 / $3.6600 | Buy Now |
|
DISTI #
87838158
|
Verical | Diode Switching 400V 60A 3-Pin(3+Tab) TO-247 Tube Min Qty: 4 Package Multiple: 1 Date Code: 2416 | Americas - 732 |
|
$1.4692 | Buy Now |
|
DISTI #
STTH61W04SW
|
TME | Diode: rectifying, THT, 400V, 60A, tube, Ifsm: 500A, TO247-3, 40ns Min Qty: 1 | 16 |
|
$2.3000 / $3.4500 | Buy Now |
|
|
ComSIT USA | TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER Rectifier Diode, 1 Phase, 1 Element, 400V V(RRM), Silicon, TO-247 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
STTH61W04SW
|
IBS Electronics | RECTIFIER DIODE SWITCHING 400V 60A 55NS 3-PIN(3+, TAB) TO-247 TUBE Min Qty: 600 Package Multiple: 1 | 25800 |
|
$1.6510 / $1.7030 | Buy Now |
Part Details for STTH61W04SW
STTH61W04SW CAD Models
STTH61W04SW Part Data Attributes
|
|
STTH61W04SW
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH61W04SW
STMicroelectronics
400 V, 60 A single 3-lead TO-247 Ultrafast Rectifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | SOFT FACTOR IS 0.3 | |
| Application | HIGH VOLTAGE ULTRA FAST RECOVERY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.35 V | |
| JEDEC-95 Code | TO-247 | |
| JESD-30 Code | R-PSFM-T3 | |
| Non-rep Pk Forward Current-Max | 500 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Rep Pk Reverse Voltage-Max | 400 V | |
| Reverse Current-Max | 20 µA | |
| Reverse Recovery Time-Max | 0.055 µs | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
STTH61W04SW Frequently Asked Questions (FAQ)
-
A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
-
Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink if necessary, and ensure good thermal contact between the device and the heat sink. Also, follow proper PCB design and layout guidelines to minimize thermal resistance.
-
A gate drive voltage of 10-15V is recommended for optimal switching performance. This ensures that the device is fully enhanced and minimizes switching losses.
-
Use a TVS (Transient Voltage Suppressor) diode to protect the device from overvoltage conditions. Also, implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
-
A dead time of 100-200 ns is recommended to minimize shoot-through current. This ensures that the high-side and low-side devices are not conducting simultaneously, reducing losses and improving efficiency.
