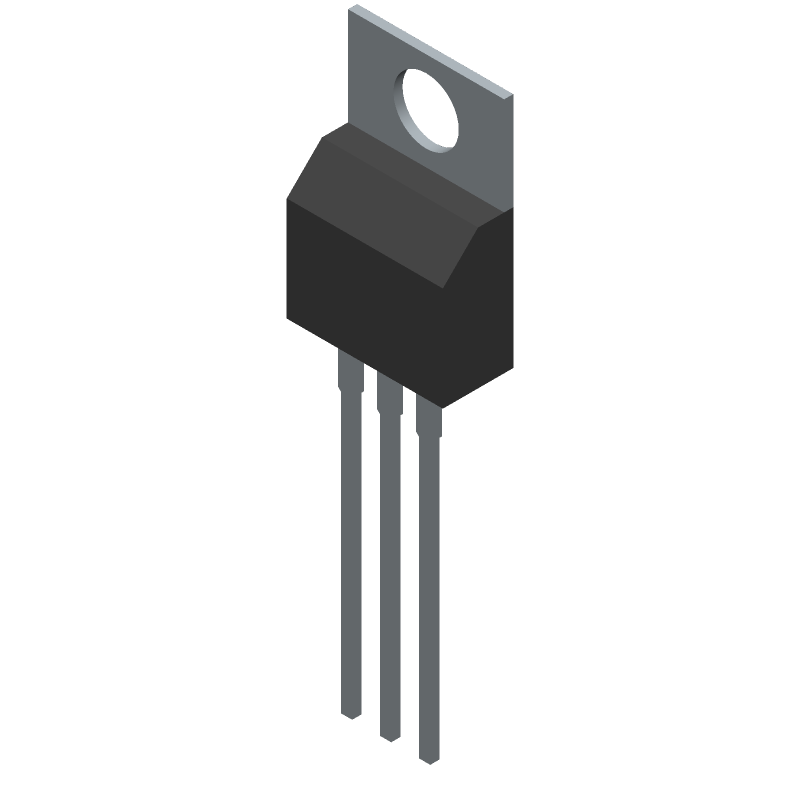

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STTH1602CT by STMicroelectronics
Results Overview of STTH1602CT by STMicroelectronics
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
STTH1602CT Information
STTH1602CT by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH1602CT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50M5131
|
Newark | Diode, Ultrafast, 2X8A, Repetitive Peak Reverse Voltage:200V, Average Forward Current:8A, Diode Configuration:Dual Common Cathode, Forward Voltage Max:1.1V, Reverse Recovery Time:21Ns, Forward Surge Current:80A, No. Of Pins:3 Pin Rohs Compliant: Yes |Stmicroelectronics STTH1602CT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3047 |
|
$0.7280 / $0.8270 | Buy Now |
|
DISTI #
82AC0162
|
Newark | Aid Rectifier Rohs Compliant: Yes |Stmicroelectronics STTH1602CT RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5300 | Buy Now |
|
DISTI #
497-3544-5-ND
|
DigiKey | DIODE ARRAY GP 200V 10A TO-220 Min Qty: 1 Lead time: 15 Weeks Container: Tube |
12249 In Stock |
|
$0.4045 / $0.5100 | Buy Now |
|
DISTI #
STTH1602CT
|
Avnet Americas | Fast / Ultrafast Diode, 200 V, 8 A, Dual Common Cathode, 1.1 V, 21 ns, 80 A - Rail/Tube (Alt: STTH1602CT) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.4045 / $0.4315 | Buy Now |
|
DISTI #
511-STTH1602CT
|
Mouser Electronics | Rectifiers 2x10 Amp 200 Volt RoHS: Compliant | 2698 |
|
$0.4240 / $1.2500 | Buy Now |
|
DISTI #
E54:1762_15516290
|
Arrow Electronics | Diode Switching 200V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2425 | Europe - 9914 |
|
$0.4008 / $0.4227 | Buy Now |
|
DISTI #
E02:0323_00212619
|
Arrow Electronics | Diode Switching 200V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2424 | Europe - 89 |
|
$0.4233 | Buy Now |
|
|
STMicroelectronics | High Efficiency Ultrafast Diode RoHS: Compliant Min Qty: 1 | 2693 |
|
$0.4100 / $0.5900 | Buy Now |
|
DISTI #
87628026
|
Verical | Diode Switching 200V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 12 Package Multiple: 1 Date Code: 2425 | Americas - 9912 |
|
$0.4008 / $0.4227 | Buy Now |
|
DISTI #
30993109
|
Verical | Diode Switching 200V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 63 Package Multiple: 1 | Americas - 2789 |
|
$0.3700 / $0.3790 | Buy Now |
Part Details for STTH1602CT
STTH1602CT CAD Models
STTH1602CT Part Data Attributes
|
|
STTH1602CT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH1602CT
STMicroelectronics
200 V, 16 A dual Ultrafast Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | FREE WHEELING DIODE, LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.89 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 80 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Recovery Time-Max | 0.026 µs | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for STTH1602CT
This table gives cross-reference parts and alternative options found for STTH1602CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STTH1602CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SPR602C | Diotec Electronics Corp | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 6A, 200V V(RRM), Silicon, TO-220AB, PLASTIC, ITO-220AB, 3 PIN | STTH1602CT vs SPR602C |
| STPR620CT | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 6A, 200V V(RRM), Silicon, TO-220AB, | STTH1602CT vs STPR620CT |
| FEP16DT | EIC Semiconductor Inc | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 8A, 200V V(RRM), Silicon, TO-220AB, | STTH1602CT vs FEP16DT |
| FEPF16DT-E3/45 | Vishay Intertechnologies | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 8A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN | STTH1602CT vs FEPF16DT-E3/45 |
| FEPF16CT | Sensitron Semiconductors | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 16A, 150V V(RRM), Silicon, PLASTIC, ITO-220, FULL PACK-3 | STTH1602CT vs FEPF16CT |
