Part Details for STTH12010TV1 by STMicroelectronics
Results Overview of STTH12010TV1 by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
Electronic Manufacturing
STTH12010TV1 Information
STTH12010TV1 by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH12010TV1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-16209-5-ND
|
DigiKey | DIODE MODULE GP 1000V 60A ISOTOP Min Qty: 1 Lead time: 25 Weeks Container: Tube |
52 In Stock |
|
$16.1100 / $26.4400 | Buy Now |
|
DISTI #
STTH12010TV1
|
Avnet Americas | Diode Switching 1KV 60A 4-Pin ISOTOP Tube - Rail/Tube (Alt: STTH12010TV1) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$16.1100 / $17.1840 | Buy Now |
|
DISTI #
511-STTH12010TV1
|
Mouser Electronics | Rectifiers high voltage diode RoHS: Compliant | 94 |
|
$16.1100 / $26.2200 | Buy Now |
|
|
STMicroelectronics | Ultrafast recovery - high voltage diode RoHS: Compliant Min Qty: 1 | 93 |
|
$15.7900 / $25.7900 | Buy Now |
|
DISTI #
STTH12010TV1
|
TME | Module: diode, double independent, 1kV, If: 60Ax2, ISOTOP, screw Min Qty: 1 | 0 |
|
$28.4200 / $35.7000 | RFQ |
|
DISTI #
STTH12010TV1
|
IBS Electronics | STTH12010TV1 FAST RECOVERY RECTIFIER DIODE SWITCHING 60 A MAX 1000 V 115 NS D Min Qty: 100 Package Multiple: 1 | 0 |
|
$20.5270 / $21.0990 | Buy Now |
|
DISTI #
STTH12010TV1
|
Avnet Silica | Diode Switching 1KV 60A 4Pin ISOTOP Tube (Alt: STTH12010TV1) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 17 Weeks, 0 Days | Silica - 70 |
|
Buy Now | |
|
DISTI #
STTH12010TV1
|
EBV Elektronik | Diode Switching 1KV 60A 4Pin ISOTOP Tube (Alt: STTH12010TV1) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 26 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 79 |
|
RFQ |
Part Details for STTH12010TV1

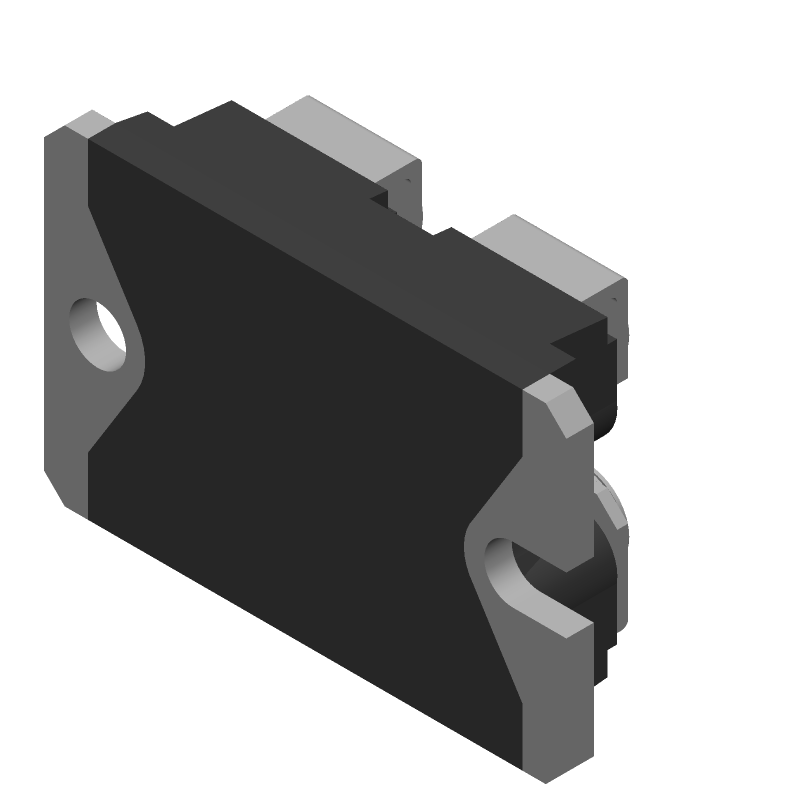

STTH12010TV1 CAD Models
STTH12010TV1 Part Data Attributes
|
|
STTH12010TV1
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH12010TV1
STMicroelectronics
1200 V, 120 A dual Ultrafast Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | ISOTOP | |
| Package Description | PLASTIC, ISOTOP-4 | |
| Pin Count | 4 | |
| Manufacturer Package Code | ISOTOP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE, HIGH RELIABILITY | |
| Application | HIGH VOLTAGE ULTRA FAST SOFT RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.7 V | |
| JESD-30 Code | R-PUFM-X4 | |
| Non-rep Pk Forward Current-Max | 400 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 60 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 200 µA | |
| Reverse Recovery Time-Max | 0.115 µs | |
| Reverse Test Voltage | 1000 V | |
| Surface Mount | NO | |
| Terminal Finish | Nickel (Ni) | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UPPER | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for STTH12010TV1
This table gives cross-reference parts and alternative options found for STTH12010TV1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STTH12010TV1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BYT261PI-1000 | STMicroelectronics | Check for Price | 60A, 1000V, SILICON, RECTIFIER DIODE | STTH12010TV1 vs BYT261PI-1000 |
