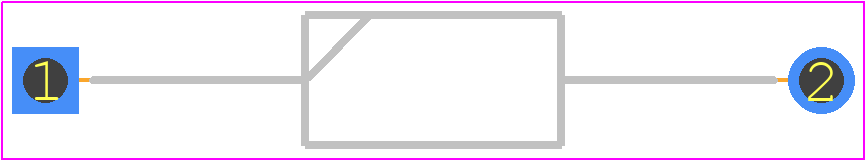

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STRVS241X02E by STMicroelectronics
Results Overview of STRVS241X02E by STMicroelectronics
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STRVS241X02E Information
STRVS241X02E by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STRVS241X02E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-13726-3-ND
|
DigiKey | TVS DIODE 171VWM 241VC DO204AC Min Qty: 5000 Lead time: 11 Weeks Container: Tape & Box (TB) |
356 In Stock |
|
$0.1484 | Buy Now |
|
DISTI #
V79:2366_17783816
|
Arrow Electronics | Diode TVS Single Uni-Dir 171V 2-Pin DO-15 T/R Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1324 | Americas - 4087 |
|
$0.1341 | Buy Now |
|
DISTI #
26114157
|
Verical | Diode TVS Single Uni-Dir 171V 2-Pin DO-15 T/R Min Qty: 43 Package Multiple: 1 Date Code: 1324 | Americas - 4087 |
|
$0.1341 | Buy Now |
|
DISTI #
STRVS241X02E
|
Avnet Silica | Diode TVS Single UniDir 171V 2Pin DO15 Ammo Pack (Alt: STRVS241X02E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STRVS241X02E
|
EBV Elektronik | Diode TVS Single UniDir 171V 2Pin DO15 Ammo Pack (Alt: STRVS241X02E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for STRVS241X02E
STRVS241X02E CAD Models
STRVS241X02E Part Data Attributes
|
|
STRVS241X02E
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STRVS241X02E
STMicroelectronics
ST Repetitive Voltage Suppressor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
