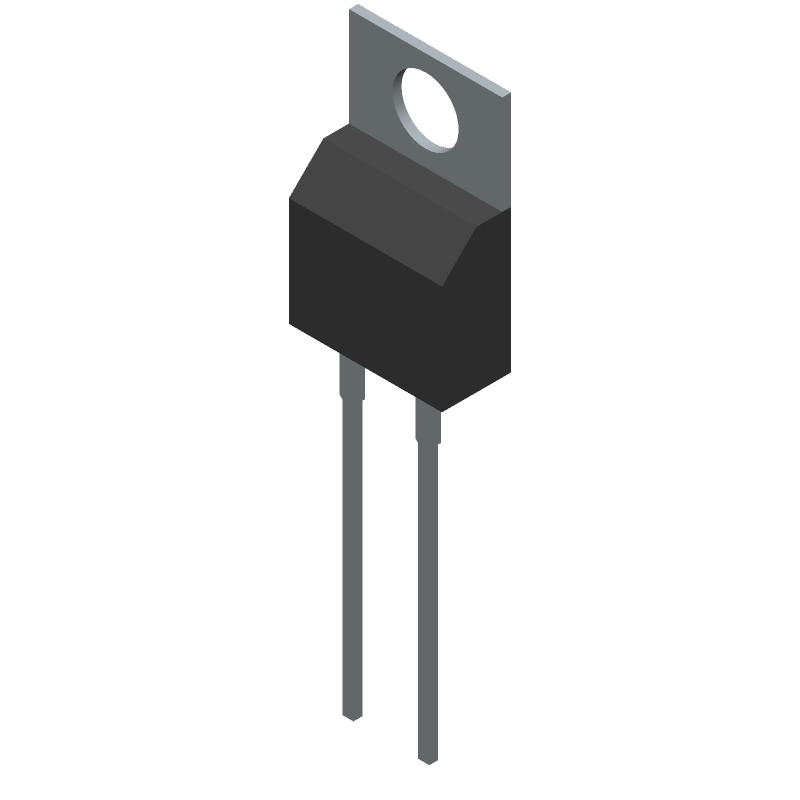

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPSC20H12DY by STMicroelectronics
Results Overview of STPSC20H12DY by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
STPSC20H12DY Information
STPSC20H12DY by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPSC20H12DY
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2723359
|
Farnell | SIC SCHOTTKY DIODE, AEC-Q101, TO220AC RoHS: Compliant Min Qty: 1 Lead time: 39 Weeks, 1 Days Container: Each | 993 |
|
$5.8445 / $11.4367 | Buy Now |
|
DISTI #
497-17163-ND
|
DigiKey | DIODE SIL CARB 1200V 20A TO220AC Min Qty: 1 Lead time: 25 Weeks Container: Tube |
950 In Stock |
|
$6.1120 / $10.5600 | Buy Now |
|
|
STMicroelectronics | Automotive 1200 V, 20 A Silicon Carbide Diode COO: China RoHS: Compliant Min Qty: 1 | 1000 |
|
$6.0000 / $10.7400 | Buy Now |
|
DISTI #
STPSC20H12DY
|
Avnet Silica | AID RECTIFIER (Alt: STPSC20H12DY) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 850 |
|
Buy Now | |
|
DISTI #
STPSC20H12DY
|
EBV Elektronik | AID RECTIFIER (Alt: STPSC20H12DY) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | TO-220-2 SiC Diodes ROHS | 1 |
|
$15.0281 / $15.4762 | Buy Now |
Part Details for STPSC20H12DY
STPSC20H12DY CAD Models
STPSC20H12DY Part Data Attributes
|
|
STPSC20H12DY
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPSC20H12DY
STMicroelectronics
Automotive 1200 V, 20 A Silicon Carbide Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Date Of Intro | 2017-01-30 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Application | POWER | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON CARBIDE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.5 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| Non-rep Pk Forward Current-Max | 140 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 20 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Reverse Current-Max | 120 µA | |
| Reverse Test Voltage | 1200 V | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
STPSC20H12DY Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
-
Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal pad to maintain a low junction temperature. Monitor the device's thermal resistance (RthJA) and ensure it is within the specified range.
-
A gate drive circuit with a low impedance output stage and a high current capability (e.g., TC4420 or similar) is recommended. The gate drive voltage should be set to 12V to ensure proper switching.
-
Use a voltage regulator or a TVS diode to protect the device from overvoltage. Implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
-
A dead time of 100-200 ns is recommended to ensure proper switching and to prevent shoot-through currents. The dead time can be adjusted based on the specific application requirements.
