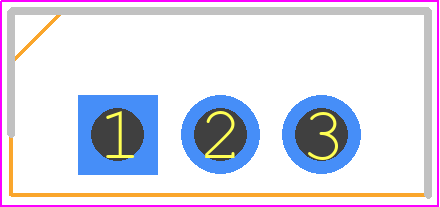

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPSC12H065CT by STMicroelectronics
Results Overview of STPSC12H065CT by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
STPSC12H065CT Information
STPSC12H065CT by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPSC12H065CT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2376475
|
Farnell | SIC SCHOTTKY DIODE, 650V, 12A, TO-220AB RoHS: Compliant Min Qty: 1 Lead time: 39 Weeks, 1 Days Container: Each | 2144 |
|
$5.3425 / $5.4089 | Buy Now |
|
|
STMicroelectronics | 650 V, 12 A dual High Surge Silicon Carbide Power Schottky Diode RoHS: Compliant Min Qty: 1 | 188 |
|
$1.9100 / $4.4500 | Buy Now |
|
DISTI #
STPSC12H065CT
|
TME | Diode: Schottky rectifying, SiC, THT, 650V, 6Ax2, TO220AB, tube Min Qty: 1 | 0 |
|
$4.7900 / $6.7000 | RFQ |
|
DISTI #
STPSC12H065CT
|
IBS Electronics | STPSC12H065C 650 V 12 A POWER SCHOTTKY SILICON CARBIDE DIODE - TO-220AB Min Qty: 1000 Package Multiple: 1 | 0 |
|
$3.0680 / $3.2110 | Buy Now |
|
DISTI #
STPSC12H065CT
|
Avnet Silica | Diode Schottky 650V 12A 3Pin TO220AB Tube (Alt: STPSC12H065CT) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STPSC12H065CT
|
EBV Elektronik | Diode Schottky 650V 12A 3Pin TO220AB Tube (Alt: STPSC12H065CT) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 600 |
|
Buy Now |
Part Details for STPSC12H065CT
STPSC12H065CT CAD Models
STPSC12H065CT Part Data Attributes
|
|
STPSC12H065CT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPSC12H065CT
STMicroelectronics
650 V, 12 A dual High Surge Silicon Carbide Power Schottky Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | TO-220AB, 3 PIN | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | POWER | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON CARBIDE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.75 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Non-rep Pk Forward Current-Max | 52 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Rep Pk Reverse Voltage-Max | 650 V | |
| Reverse Current-Max | 60 µA | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for STPSC12H065CT
This table gives cross-reference parts and alternative options found for STPSC12H065CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STPSC12H065CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ESAC63-004R | Fuji Electric Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 45V V(RRM), Silicon, TO-220AB, PLASTIC, TO-220, 3 PIN | STPSC12H065CT vs ESAC63-004R |
| PBYR25-25CT | NXP Semiconductors | Check for Price | 15A, 25V, SILICON, RECTIFIER DIODE, TO-220AB | STPSC12H065CT vs PBYR25-25CT |
| NP16KT | General Instrument Corp | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 16A, 800V V(RRM), Silicon, TO-220AB, TO-220CT, 3 PIN | STPSC12H065CT vs NP16KT |
| SDUR1020CT | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 200V V(RRM), Silicon, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3 | STPSC12H065CT vs SDUR1020CT |
| ISR2045A | Rectron Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, TO-220AB, PLASTIC, ITO-220, 3 PIN | STPSC12H065CT vs ISR2045A |
| SR3030CT | Daco Semiconductor Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 30V V(RRM), Silicon, TO-220AB, | STPSC12H065CT vs SR3030CT |
| SB25100CT | Promax-Johnton Electronic Corporation | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 25A, 100V V(RRM), Silicon, TO-220AB, PLASTIC, TO-220AB, 3 PIN | STPSC12H065CT vs SB25100CT |
| TST10H100CWC0G | Taiwan Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 100V V(RRM), Silicon, TO-220AB, | STPSC12H065CT vs TST10H100CWC0G |
| 6240 | NTE Electronics Inc | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 20A, Silicon, TO-220AB, TO-220, 3 PIN | STPSC12H065CT vs 6240 |
| 12R1/220 | Solid State Devices Inc (SSDI) | Check for Price | Rectifier Diode, 1 Phase, 2 Element, 3A, 125V V(RRM), Silicon, TO-220AB, TO-220, 3 PIN | STPSC12H065CT vs 12R1/220 |
STPSC12H065CT Frequently Asked Questions (FAQ)
-
STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material to reduce thermal resistance.
-
The maximum allowed voltage on the gate driver output is 20V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
Yes, the STPSC12H065CT is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout and decoupling to minimize electromagnetic interference (EMI).
-
Use external protection circuits such as overcurrent protection (OCP) and overvoltage protection (OVP) to prevent damage to the device. Additionally, consider using a fuse or a current limiter to prevent excessive current.
