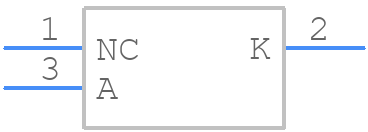

Part Symbol
-
Footprint
-

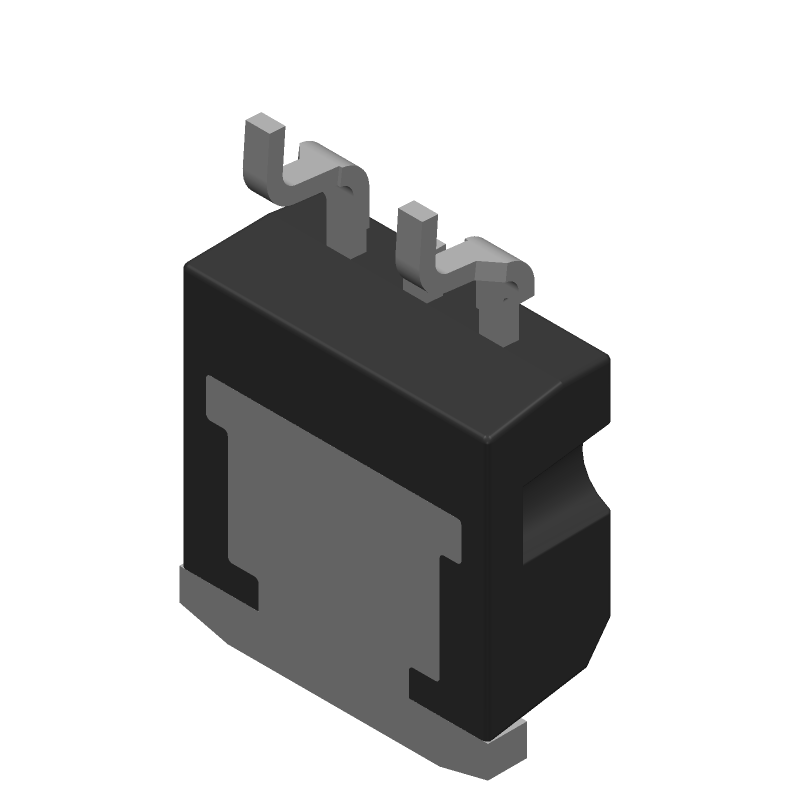

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPS8H100G-TR by STMicroelectronics
Results Overview of STPS8H100G-TR by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Robotics and Drones
STPS8H100G-TR Information
STPS8H100G-TR by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPS8H100G-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01X0054
|
Newark | Small Signal Diode, 100 V, 8 A, 710 Mv, 250 A, 175 C Rohs Compliant: Yes |Stmicroelectronics STPS8H100G-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3544 |
|
$0.6150 / $1.4400 | Buy Now |
|
DISTI #
497-7571-1-ND
|
DigiKey | DIODE SCHOTTKY 100V 8A D2PAK Min Qty: 1 Lead time: 25 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
20552 In Stock |
|
$0.3820 / $1.2200 | Buy Now |
|
DISTI #
STPS8H100G-TR
|
Avnet Americas | Schottky Rectifier, 100 V, 8 A, Single, TO-263 (D2PAK), 3 Pins, 710 mV - Tape and Reel (Alt: STPS8H100G-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days Container: Reel | 0 |
|
$0.5306 / $0.5660 | Buy Now |
|
DISTI #
511-STPS8H100G-TR
|
Mouser Electronics | Schottky Diodes & Rectifiers 8.0 Amp 100 Volt RoHS: Compliant | 2268 |
|
$0.3820 / $1.1600 | Buy Now |
|
DISTI #
V72:2272_06565339
|
Arrow Electronics | Diode Schottky 100V 8A 3-Pin(2+Tab) D2PAK T/R Automotive AEC-Q101 Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2222 Container: Cut Strips | Americas - 1084 |
|
$0.3502 / $0.6322 | Buy Now |
|
DISTI #
E02:0323_00211860
|
Arrow Electronics | Diode Schottky 100V 8A 3-Pin(2+Tab) D2PAK T/R Automotive AEC-Q101 Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks Date Code: 2511 | Europe - 1000 |
|
$0.3418 / $0.3775 | Buy Now |
|
|
STMicroelectronics | High Voltage Power Schottky Rectifier COO: Singapore RoHS: Compliant Min Qty: 1 | 2318 |
|
$0.4800 / $1.1400 | Buy Now |
|
DISTI #
62835817
|
Verical | Diode Schottky 100V 8A 3-Pin(2+Tab) D2PAK T/R Automotive AEC-Q101 Min Qty: 17 Package Multiple: 1 Date Code: 2222 | Americas - 1084 |
|
$0.3504 / $0.5398 | Buy Now |
|
DISTI #
88051965
|
Verical | Diode Schottky 100V 8A 3-Pin(2+Tab) D2PAK T/R Automotive AEC-Q101 Min Qty: 1000 Package Multiple: 1000 Date Code: 2511 | Americas - 1000 |
|
$0.3357 / $0.3705 | Buy Now |
|
|
Bristol Electronics | 20 |
|
RFQ |
Part Details for STPS8H100G-TR
STPS8H100G-TR CAD Models
STPS8H100G-TR Part Data Attributes
|
|
STPS8H100G-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPS8H100G-TR
STMicroelectronics
100 V, 8A TO-220 D2PAK Power Schottky rectifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-263 | |
| Package Description | ROHS COMPLIANT, PLASTIC, D2PAK-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | HIGH VOLTAGE POWER | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.81 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 250 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
