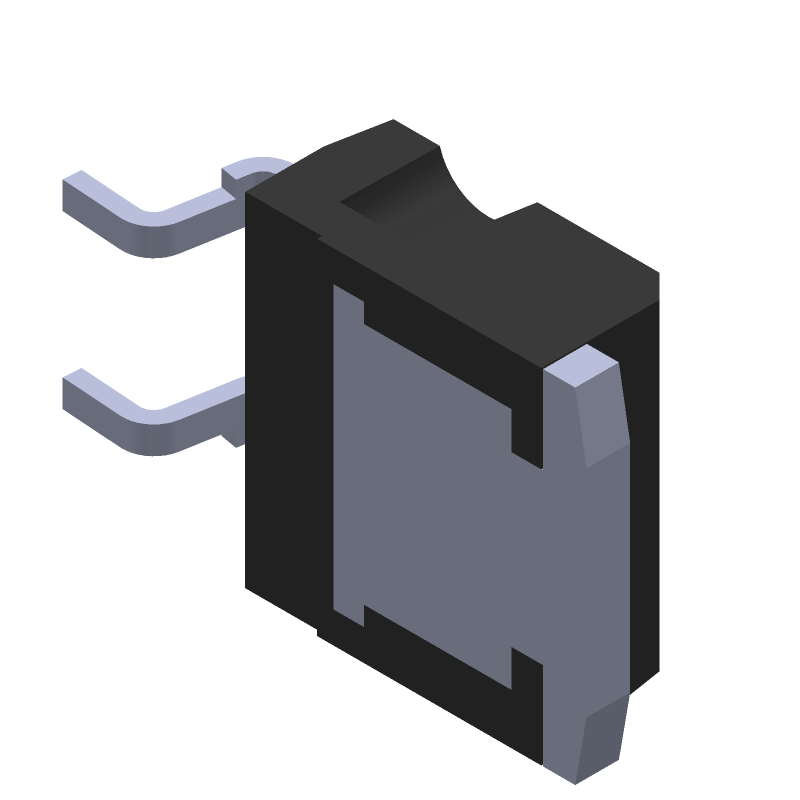

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPS41L30CG-TR by STMicroelectronics
Results Overview of STPS41L30CG-TR by STMicroelectronics
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
STPS41L30CG-TR Information
STPS41L30CG-TR by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPS41L30CG-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06X0879
|
Newark | Rectifier Diode, Dual Common Cathode, 30 V, 40 A, 570 Mv, 220 A, 150 C Rohs Compliant: Yes |Stmicroelectronics STPS41L30CG-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1279 |
|
$1.4200 / $1.7600 | Buy Now |
|
DISTI #
497-8037-1-ND
|
DigiKey | DIODE ARRAY SCHOTT 30V 20A D2PAK Min Qty: 1 Lead time: 25 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1075 In Stock |
|
$0.8561 / $1.0500 | Buy Now |
|
DISTI #
STPS41L30CG-TR
|
Avnet Americas | Diode Schottky 30V 40A 3-Pin(2+Tab) D2PAK T/R - Tape and Reel (Alt: STPS41L30CG-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days Container: Reel | 0 |
|
$0.8551 / $0.9121 | Buy Now |
|
DISTI #
511-STPS41L30CG-TR
|
Mouser Electronics | Schottky Diodes & Rectifiers 2X20 Amp 30 Volt RoHS: Compliant | 4812 |
|
$0.8550 / $0.9600 | Buy Now |
|
DISTI #
E02:0323_00210305
|
Arrow Electronics | Diode Schottky 30V 40A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks Date Code: 2514 | Europe - 73000 |
|
$0.8892 | Buy Now |
|
DISTI #
V36:1790_06565289
|
Arrow Electronics | Diode Schottky 30V 40A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks Date Code: 2349 | Americas - 2000 |
|
$0.8006 / $0.8203 | Buy Now |
|
DISTI #
V72:2272_06565289
|
Arrow Electronics | Diode Schottky 30V 40A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2246 Container: Cut Strips | Americas - 3 |
|
$0.8773 | Buy Now |
|
|
STMicroelectronics | Low Drop Power Schottky Rectifier RoHS: Compliant Min Qty: 1 | 4812 |
|
$0.8800 / $0.9400 | Buy Now |
|
DISTI #
88156404
|
Verical | Diode Schottky 30V 40A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Date Code: 2514 | Americas - 73000 |
|
$1.0232 / $1.0266 | Buy Now |
|
DISTI #
78403429
|
Verical | Diode Schottky 30V 40A 3-Pin(2+Tab) D2PAK T/R Min Qty: 1000 Package Multiple: 1000 Date Code: 2349 | Americas - 2000 |
|
$0.8006 / $0.8011 | Buy Now |
Part Details for STPS41L30CG-TR
STPS41L30CG-TR CAD Models
STPS41L30CG-TR Part Data Attributes
|
|
STPS41L30CG-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPS41L30CG-TR
STMicroelectronics
30 A, 40 A dual Low Drop Power Schottky Rectifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-263 | |
| Package Description | D2PAK-3/2 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | POWER | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.38 V | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 220 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Output Current-Max | 20 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
STPS41L30CG-TR Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the PCB is designed to minimize thermal resistance.
-
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
-
The recommended soldering conditions for the STPS41L30CG-TR are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. Ensure that the device is not exposed to temperatures above 260°C for more than 10 seconds.
-
During storage and shipping, handle the device by the body, avoiding touching the pins or leads. Store the device in its original packaging or in a protective container to prevent mechanical stress and electrostatic discharge (ESD). Avoid exposing the device to extreme temperatures, humidity, or physical shock.
-
When handling the STPS41L30CG-TR, take ESD protection measures such as wearing an anti-static wrist strap or using an anti-static mat. Ensure that the workspace is ESD-protected, and handle the device by the body, avoiding touching the pins or leads. Use ESD-protected packaging and storage materials.
