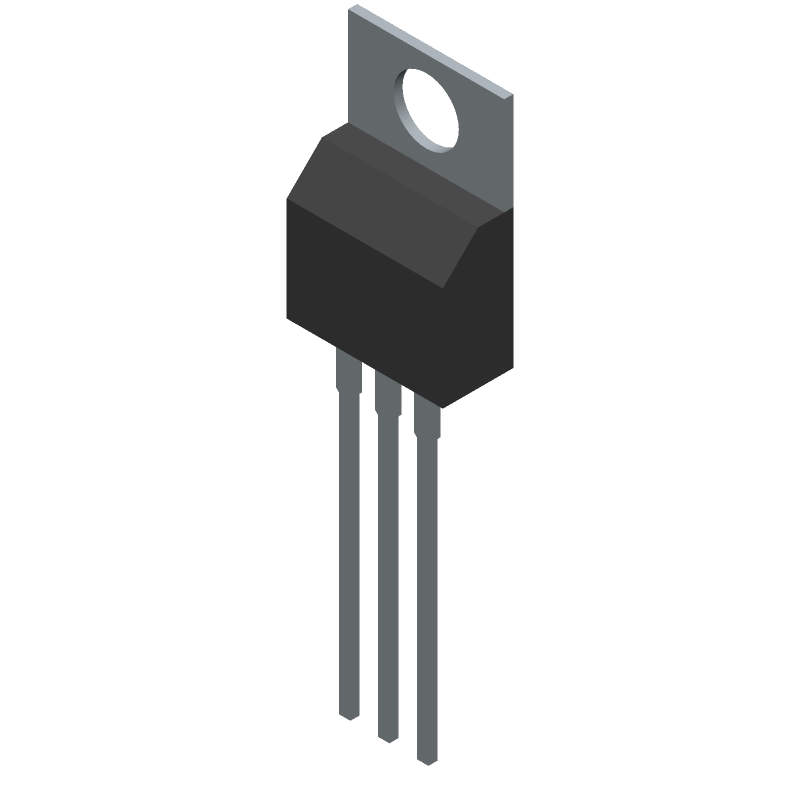

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPS20S100CT by STMicroelectronics
Results Overview of STPS20S100CT by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
STPS20S100CT Information
STPS20S100CT by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPS20S100CT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7661
|
Newark | Schottky Rectifier, 100V, 20A, To-220Ab, Repetitive Peak Reverse Voltage:100V, Average Forward Current:20A, Diode Configuration:Dual Common Cathode, Diode Case Style:To-220Ab, No. Of Pins:3Pins, Forward Voltage Max:940Mv Rohs Compliant: Yes |Stmicroelectronics STPS20S100CT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 8 |
|
$0.5210 / $0.5690 | Buy Now |
|
DISTI #
497-12300-ND
|
DigiKey | DIODE ARR SCHOTT 100V 10A TO-220 Min Qty: 1 Lead time: 15 Weeks Container: Tube |
1338 In Stock |
|
$0.4855 / $1.6000 | Buy Now |
|
DISTI #
45AC7661
|
Avnet Americas | Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220AB Tube - Bulk (Alt: 45AC7661) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 8 Partner Stock |
|
$0.7150 / $1.4400 | Buy Now |
|
DISTI #
STPS20S100CT
|
Avnet Americas | Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220AB Tube - Rail/Tube (Alt: STPS20S100CT) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.4855 / $0.5179 | Buy Now |
|
DISTI #
511-STPS20S100CT
|
Mouser Electronics | Schottky Diodes & Rectifiers 100V 20A Power Schottky 0.71V Vf RoHS: Compliant | 1611 |
|
$0.4850 / $1.5800 | Buy Now |
|
DISTI #
V36:1790_06565112
|
Arrow Electronics | Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks Date Code: 2404 | Americas - 5995 |
|
$0.4780 / $0.5373 | Buy Now |
|
DISTI #
V79:2366_17784407
|
Arrow Electronics | Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1833 | Americas - 14 |
|
$0.3276 | Buy Now |
|
|
STMicroelectronics | 100 V, 2 x 10A Low Leakage Power schottky Rectifier COO: Singapore RoHS: Compliant Min Qty: 1 | 1611 |
|
$0.5800 / $1.5500 | Buy Now |
|
DISTI #
84428486
|
Verical | Diode Schottky 100V 20A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Date Code: 2404 | Americas - 5000 |
|
$0.4780 / $0.5373 | Buy Now |
|
DISTI #
STPS20S100CT
|
TME | Diode: Schottky rectifying, THT, 100V, 10Ax2, TO220AB, Ufmax: 0.94V Min Qty: 1 | 46 |
|
$0.5420 / $1.1240 | Buy Now |
Part Details for STPS20S100CT
STPS20S100CT CAD Models
STPS20S100CT Part Data Attributes
|
|
STPS20S100CT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPS20S100CT
STMicroelectronics
100 V, 2 x 10A Low Leakage Power schottky Rectifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | TO-220AB, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | POWER | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.61 V | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 180 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for STPS20S100CT
This table gives cross-reference parts and alternative options found for STPS20S100CT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STPS20S100CT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR20100CT-G1 | Diodes Incorporated | $0.3573 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-220AB, GREEN, PLASTIC, TO-220, 3 PIN | STPS20S100CT vs MBR20100CT-G1 |
| MBR20H100CTG | onsemi | Check for Price | Schottky Barrier Rectifier, H-Series, 100 V, 20 A, TO-220 3 LEAD STANDARD, 50-TUBE | STPS20S100CT vs MBR20H100CTG |
STPS20S100CT Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the STPS20S100CT is -40°C to 150°C.
-
To ensure reliability, it's essential to follow the recommended derating curves for voltage and current, and to ensure proper thermal management, such as using a heat sink or thermal interface material.
-
The recommended soldering profile for the STPS20S100CT is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
Yes, the STPS20S100CT is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the device's switching losses and ensure proper thermal management.
-
To protect the STPS20S100CT from ESD, it's essential to follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats, and ensuring that the device is properly grounded during assembly.
