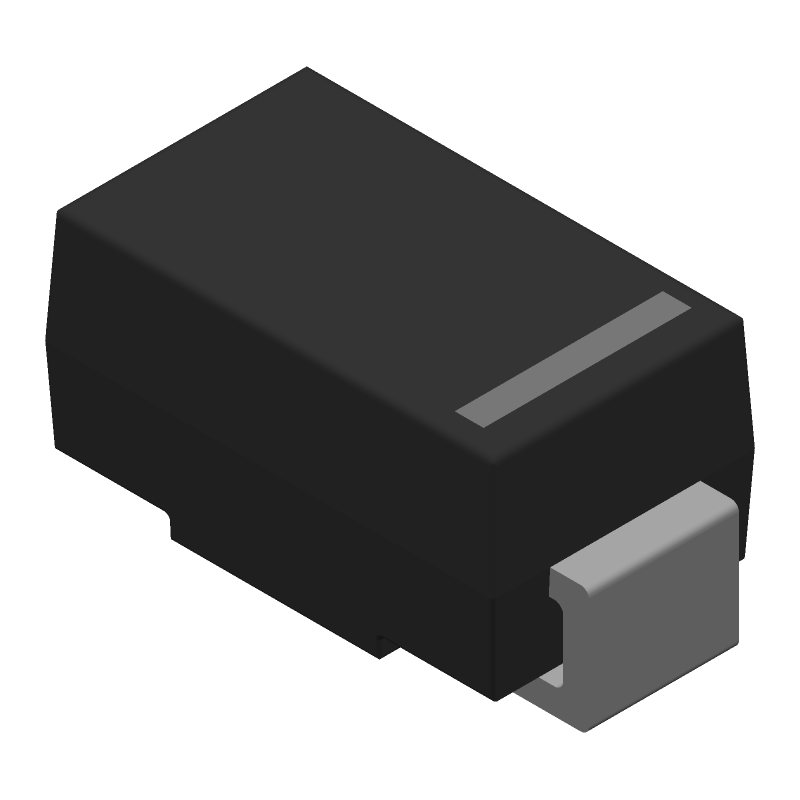

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPS1L60A by STMicroelectronics
Results Overview of STPS1L60A by STMicroelectronics
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STPS1L60A Information
STPS1L60A by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPS1L60A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
06X0865
|
Newark | Rectifier Diode, Single, 60 V, 1 A, Do-214Ac, 2, 570 Mv Rohs Compliant: Yes |Stmicroelectronics STPS1L60A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 177 |
|
$0.1620 / $0.4050 | Buy Now |
|
DISTI #
07X1955
|
Newark | Rectifier Diode, Single, 60 V, 1 A, Do-214Ac, 2, 570 Mv Rohs Compliant: Yes |Stmicroelectronics STPS1L60A RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0840 / $0.0970 | Buy Now |
|
DISTI #
497-2463-1-ND
|
DigiKey | DIODE SCHOTTKY 60V 1A DO214AC Min Qty: 1 Lead time: 15 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
22135 In Stock |
|
$0.0587 / $0.3500 | Buy Now |
|
DISTI #
STPS1L60A
|
Avnet Americas | Schottky Rectifier, 60 V, 1 A, Single, DO-214AC (SMA), 2 Pins, 570 mV - Tape and Reel (Alt: STPS1L60A) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Container: Reel | 45000 |
|
$0.0343 / $0.0367 | Buy Now |
|
DISTI #
STPS1L60A
|
Avnet Americas | Schottky Rectifier, 60 V, 1 A, Single, DO-214AC (SMA), 2 Pins, 570 mV - Tape and Reel (Alt: STPS1L60A) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.0343 / $0.0367 | Buy Now |
|
DISTI #
511-STPS1L60A
|
Mouser Electronics | Schottky Diodes & Rectifiers 1.0 Amp 60 Volt RoHS: Compliant | 18188 |
|
$0.0580 / $0.3500 | Buy Now |
|
DISTI #
V36:1790_06565063
|
Arrow Electronics | Diode Schottky 60V 1A 2-Pin SMA T/R Min Qty: 10000 Package Multiple: 5000 Lead time: 15 Weeks Date Code: 2319 | Americas - 350000 |
|
$0.0501 | Buy Now |
|
DISTI #
E02:0323_00209889
|
Arrow Electronics | Diode Schottky 60V 1A 2-Pin SMA T/R Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks Date Code: 2511 | Europe - 265000 |
|
$0.0472 / $0.0649 | Buy Now |
|
DISTI #
E21:3489_00209889
|
Arrow Electronics | Diode Schottky 60V 1A 2-Pin SMA T/R Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks | Europe - 4000 |
|
$0.0474 / $0.3439 | Buy Now |
|
|
STMicroelectronics | 60 V, 1 A Low Drop Power Schottky Rectifier RoHS: Compliant Min Qty: 1 | 18188 |
|
$0.1200 / $0.3400 | Buy Now |
Part Details for STPS1L60A
STPS1L60A CAD Models
STPS1L60A Part Data Attributes
|
|
STPS1L60A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPS1L60A
STMicroelectronics
60 V, 1 A Low Drop Power Schottky Rectifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DO-214AC | |
| Package Description | SMA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Application | POWER | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.75 V | |
| JEDEC-95 Code | DO-214AC | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 40 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 50 µA | |
| Reverse Test Voltage | 60 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
STPS1L60A Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the STPS1L60A is -40°C to 150°C.
-
To ensure proper biasing, connect the gate to a voltage source through a resistor (e.g., 1 kΩ) and ensure the drain-source voltage is within the recommended range (typically 10-30 V).
-
The recommended gate drive voltage for the STPS1L60A is between 10-15 V, with a maximum gate-source voltage of ±20 V.
-
Use a voltage regulator or a zener diode to limit the voltage, and consider adding a current sense resistor and a fuse to protect against overcurrent.
-
The maximum allowable power dissipation for the STPS1L60A is 150 W, but this can be increased with proper heat sinking and thermal management.
