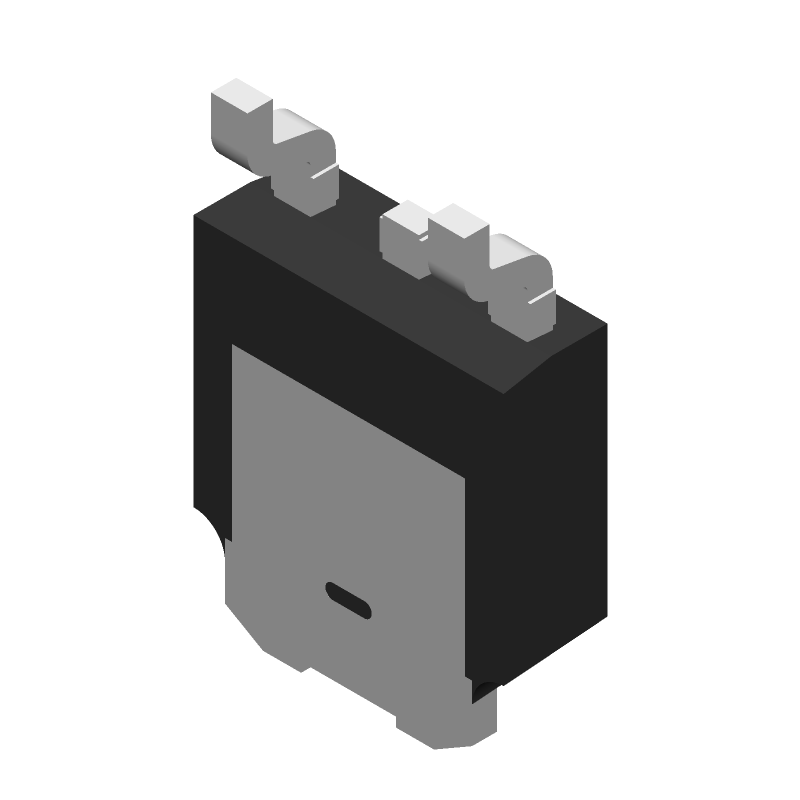

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPS15L60CB-TR by STMicroelectronics
Results Overview of STPS15L60CB-TR by STMicroelectronics
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STPS15L60CB-TR Information
STPS15L60CB-TR by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPS15L60CB-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2344053RL
|
Farnell | DIODE, SCHOTTKY, 2X7.5A, 60V, DPAK RoHS: Compliant Min Qty: 100 Lead time: 17 Weeks, 1 Days Container: Reel | 20092 |
|
$0.3020 / $0.5301 | Buy Now |
|
DISTI #
2344053
|
Farnell | DIODE, SCHOTTKY, 2X7.5A, 60V, DPAK RoHS: Compliant Min Qty: 1 Lead time: 17 Weeks, 1 Days Container: Cut Tape | 20092 |
|
$0.3020 / $1.0364 | Buy Now |
|
DISTI #
497-6576-1-ND
|
DigiKey | DIODE ARRAY SCHOTT 60V 7.5A DPAK Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3985 In Stock |
|
$0.2636 / $0.9500 | Buy Now |
|
DISTI #
STPS15L60CB-TR
|
Avnet Americas | Schottky Rectifier, 60 V, 15 A, Dual Common Cathode, TO-252 (DPAK), 3 Pins, 820 mV - Tape and Reel (Alt: STPS15L60CB-TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Reel | 7500 |
|
$0.1578 / $0.1685 | Buy Now |
|
DISTI #
511-STPS15L60CB-TR
|
Mouser Electronics | Schottky Diodes & Rectifiers 2X7.5 Amp 60 Volt RoHS: Compliant | 2864 |
|
$0.2630 / $0.9400 | Buy Now |
|
DISTI #
E02:0323_00211824
|
Arrow Electronics | Diode Schottky 60V 15A 3-Pin(2+Tab) DPAK T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks Date Code: 2513 | Europe - 85000 |
|
$0.2017 | Buy Now |
|
DISTI #
V36:1790_06565035
|
Arrow Electronics | Diode Schottky 60V 15A 3-Pin(2+Tab) DPAK T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks Date Code: 2420 | Americas - 5000 |
|
$0.2247 | Buy Now |
|
|
STMicroelectronics | Low Drop Power Schottky Rectifier RoHS: Compliant Min Qty: 1 | 2854 |
|
$0.3800 / $0.9200 | Buy Now |
|
DISTI #
88805615
|
Verical | Diode Schottky 60V 15A 3-Pin(2+Tab) DPAK T/R Min Qty: 2500 Package Multiple: 2500 Date Code: 2513 | Americas - 85000 |
|
$0.4717 | Buy Now |
|
DISTI #
82026981
|
Verical | Diode Schottky 60V 15A 3-Pin(2+Tab) DPAK T/R Min Qty: 2500 Package Multiple: 2500 Date Code: 2420 | Americas - 5000 |
|
$0.2247 | Buy Now |
Part Details for STPS15L60CB-TR
STPS15L60CB-TR CAD Models
STPS15L60CB-TR Part Data Attributes
|
|
STPS15L60CB-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPS15L60CB-TR
STMicroelectronics
60 V, 15 A dual Low Drop Power Schottky Rectifier
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | DPAK | |
| Package Description | DPAK-3/2 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | POWER | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.82 V | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 75 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Output Current-Max | 7.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 200 µA | |
| Reverse Test Voltage | 60 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
STPS15L60CB-TR Frequently Asked Questions (FAQ)
-
The maximum operating junction temperature of the STPS15L60CB-TR is 150°C.
-
To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
-
The recommended gate resistor value for the STPS15L60CB-TR is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
-
Yes, the STPS15L60CB-TR is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the device's switching losses and thermal management.
-
To protect the STPS15L60CB-TR, use a voltage regulator or a voltage clamp to prevent overvoltage, and consider adding overcurrent protection using a fuse or a current sense resistor.
