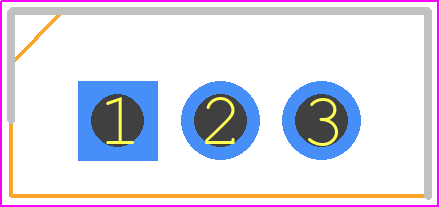

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STP6N95K5 by STMicroelectronics
Results Overview of STP6N95K5 by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
STP6N95K5 Information
STP6N95K5 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STP6N95K5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2807305
|
Farnell | MOSFET, N-CH, 950V, 9A, TO-220AB RoHS: Compliant Min Qty: 1 Lead time: 16 Weeks, 1 Days Container: Each | 838 |
|
$1.1268 / $2.0754 | Buy Now |
|
DISTI #
497-12865-5-ND
|
DigiKey | MOSFET N-CH 950V 9A TO220-3 Min Qty: 1 Lead time: 14 Weeks Container: Tube |
754 In Stock |
|
$0.9484 / $1.4200 | Buy Now |
|
DISTI #
STP6N95K5
|
Avnet Americas | Power MOSFET, N Channel, 950 V, 9 A, 1.25 Ohm, TO-220, 3 Pins, Through Hole - Rail/Tube (Alt: STP6N95K5) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Tube | 0 |
|
$0.9032 / $0.9604 | Buy Now |
|
DISTI #
511-STP6N95K5
|
Mouser Electronics | MOSFETs N-Ch 950V 1 Ohm 9A Zener MDmesh K5 RoHS: Compliant | 918 |
|
$0.9480 / $1.3900 | Buy Now |
|
DISTI #
V79:2366_17780494
|
Arrow Electronics | Trans MOSFET N-CH 950V 9A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1222 | Americas - 1 |
|
$1.0966 | Buy Now |
|
|
STMicroelectronics | N-channel 950 V, 1 Ohm typ., 9 A MDmesh K5 Power MOSFET in a TO-220 package RoHS: Compliant Min Qty: 1 | 918 |
|
$1.0700 / $1.4100 | Buy Now |
|
DISTI #
87285444
|
Verical | Trans MOSFET N-CH 950V 9A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 6 Package Multiple: 1 Date Code: 2441 | Americas - 2800 |
|
$0.9890 / $1.1225 | Buy Now |
|
DISTI #
83641605
|
Verical | Trans MOSFET N-CH 950V 9A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 30 Package Multiple: 1 | Americas - 1000 |
|
$0.9740 / $1.0000 | Buy Now |
|
|
Bristol Electronics | 60 |
|
RFQ | ||
|
|
Future Electronics | STP6N95K5 Series 950 V 1.25 Ohm 9 A N-Channel MDmesh� K5 Power Mosfet - TO-220-3 Min Qty: 1000 Package Multiple: 1000 |
4950 null |
|
$0.9200 / $0.9500 | Buy Now |
Part Details for STP6N95K5
STP6N95K5 CAD Models
STP6N95K5 Part Data Attributes
|
|
STP6N95K5
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STP6N95K5
STMicroelectronics
N-channel 950 V, 1 Ohm typ., 9 A MDmesh K5 Power MOSFET in TO-220 package
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Avalanche Energy Rating (Eas) | 90 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 950 V | |
| Drain Current-Max (ID) | 9 A | |
| Drain-source On Resistance-Max | 1.25 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 90 W | |
| Pulsed Drain Current-Max (IDM) | 36 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for STP6N95K5
This table gives cross-reference parts and alternative options found for STP6N95K5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STP6N95K5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STP20N95K5 | STMicroelectronics | $4.2752 | N-channel 950 V, 0.275 Ohm typ., 17.5 A MDmesh K5 Power MOSFET in a TO-220 package | STP6N95K5 vs STP20N95K5 |
| IRFSL4127PBF | Infineon Technologies AG | Check for Price | Power Field-Effect Transistor, 72A I(D), 200V, 0.022ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-262AA, LEAD FREE, TO-262, 3 PIN | STP6N95K5 vs IRFSL4127PBF |
| STP8NM60N | STMicroelectronics | Check for Price | 7A, 600V, 0.65ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN | STP6N95K5 vs STP8NM60N |
| STP95N2LH5 | STMicroelectronics | Check for Price | 95A, 25V, 0.007ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN | STP6N95K5 vs STP95N2LH5 |
| STP78N75F4 | STMicroelectronics | Check for Price | 78A, 75V, 0.011ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN | STP6N95K5 vs STP78N75F4 |
| STP6N120K3 | STMicroelectronics | Check for Price | N-channel 1200 V, 1.95 Ohm, 6 A Zener-protected SuperMESH3(TM) Power MOSFET in TO-220 package | STP6N95K5 vs STP6N120K3 |
| STP10NM50N | STMicroelectronics | Check for Price | 7A, 500V, 0.63ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN | STP6N95K5 vs STP10NM50N |
| STP11NM50N | STMicroelectronics | Check for Price | 9A, 500V, 0.47ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN | STP6N95K5 vs STP11NM50N |
| STP27N3LH5 | STMicroelectronics | Check for Price | N-channel 30 V, 0.014 Ohm, 27 A, TO-220 STripFET (TM) V Power MOSFET | STP6N95K5 vs STP27N3LH5 |
| STP11NM60N | STMicroelectronics | Check for Price | 10A, 600V, 0.45ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, ROHS COMPLIANT, TO-220, 3 PIN | STP6N95K5 vs STP11NM60N |
STP6N95K5 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the STP6N95K5 is 100 kHz.
-
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, decouple the VCC pin with a 10uF capacitor to reduce noise and ensure stable operation.
-
The maximum current rating of the STP6N95K5 is 6A. However, it's recommended to derate the current to 4A for continuous operation to ensure reliability and prevent overheating.
-
To protect the STP6N95K5 from overvoltage and overcurrent, use a voltage regulator to regulate the input voltage, and consider adding overcurrent protection devices such as fuses or PTC thermistors.
-
The thermal resistance of the STP6N95K5 is 2.5°C/W (junction-to-ambient) and 1.5°C/W (junction-to-case). Proper heat sinking and thermal management are crucial to ensure reliable operation.
