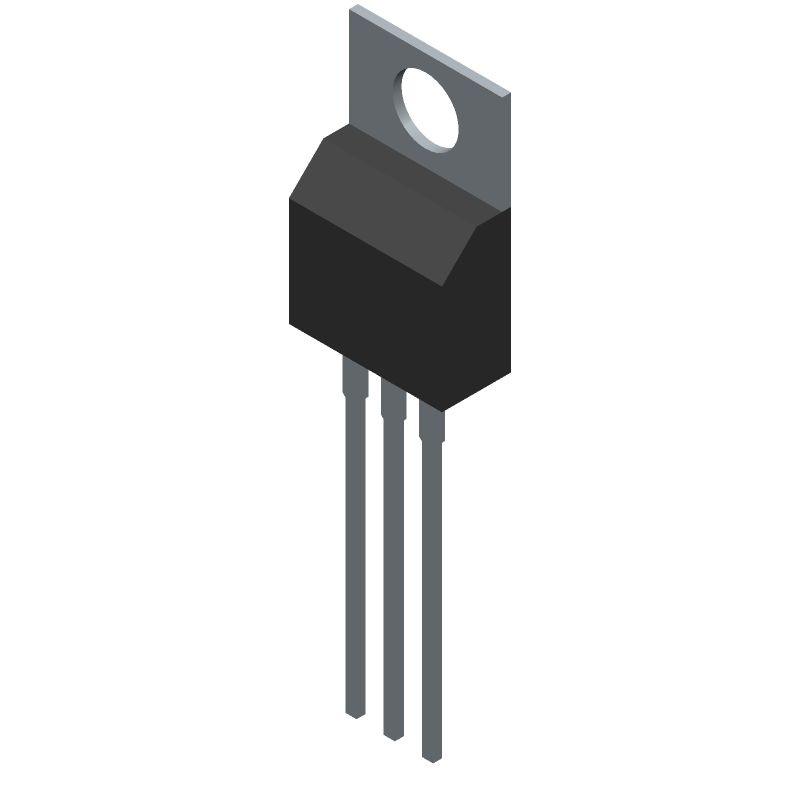

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STP65NF06 by STMicroelectronics
Results Overview of STP65NF06 by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
STP65NF06 Information
STP65NF06 by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STP65NF06
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
E02:0323_00211679
|
Arrow Electronics | Trans MOSFET N-CH 60V 60A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2511 | Europe - 20499 |
|
$0.4343 / $0.4911 | Buy Now |
|
|
STMicroelectronics | N-channel 60 V, 0.0115 Ohm, 60 A, TO-220 STripFET(TM) II Power MOSFET RoHS: Compliant Min Qty: 1 | 4 |
|
$1.4900 / $2.5100 | Buy Now |
|
DISTI #
87993942
|
Verical | Trans MOSFET N-CH 60V 60A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 13 Package Multiple: 1 Date Code: 2511 | Americas - 20488 |
|
$0.4358 / $0.4706 | Buy Now |
|
|
Bristol Electronics | 267 |
|
RFQ | ||
|
DISTI #
STP65NF06
|
IBS Electronics | N-CHANNEL 60 V 0.0115 OHM 60 A TO-220 STRIPFET(TM) II POWER MOSFET Min Qty: 1900 Package Multiple: 1 | 1150 |
|
$0.4485 / $0.4680 | Buy Now |
|
DISTI #
STP65NF06
|
Avnet Silica | Power MOSFET N Channel 60 V 60 A 14 Milliohms TO220 3 Pins Through Hole (Alt: STP65NF06) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days | Silica - 61700 |
|
Buy Now | |
|
|
Cytech Systems Limited | MOSFET N-CH 60V 60A TO220AB | 70000 |
|
RFQ | |
|
DISTI #
STP65NF06
|
EBV Elektronik | Power MOSFET N Channel 60 V 60 A 14 Milliohms TO220 3 Pins Through Hole (Alt: STP65NF06) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days | EBV - 750 |
|
Buy Now | |
|
|
Vyrian | Transistors | 3158 |
|
RFQ | |
|
|
Win Source Electronics | MOSFET N-CH 60V 60A TO-220 | 10000 |
|
$0.6507 / $0.9759 | Buy Now |
Part Details for STP65NF06
STP65NF06 CAD Models
STP65NF06 Part Data Attributes
|
|
STP65NF06
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STP65NF06
STMicroelectronics
N-channel 60 V, 0.0115 Ohm, 60 A, TO-220 STripFET(TM) II Power MOSFET
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-220AB | |
| Package Description | ROHS COMPLIANT, TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Avalanche Energy Rating (Eas) | 390 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 60 A | |
| Drain-source On Resistance-Max | 0.014 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 110 W | |
| Pulsed Drain Current-Max (IDM) | 240 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
STP65NF06 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the STP65NF06 is -55°C to 150°C.
-
To ensure proper biasing, connect the gate to a voltage source through a resistor (e.g., 1 kΩ) and ensure the drain-source voltage is within the recommended range (typically 10-20 V).
-
The maximum current rating for the STP65NF06 is 65 A, but this can be affected by the PCB design, thermal management, and other factors.
-
Use a voltage regulator or overvoltage protection circuit to prevent excessive voltage, and consider adding a current sense resistor and a fuse or current limiter to prevent overcurrent conditions.
-
The recommended gate drive voltage for the STP65NF06 is typically between 10-15 V, but this can vary depending on the specific application and requirements.
