STP2NK90Z by: STMicroelectronics

N-channel 900 V, 5 Ohm typ., 2.1 A SuperMESH Power MOSFET in a TO-220 package

Part Details for STP2NK90Z by STMicroelectronics

Results Overview of STP2NK90Z by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

STP2NK90Z Information

STP2NK90Z by STMicroelectronics is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for STP2NK90Z

Part # Distributor Description Stock Price Buy
DISTI # 38K7922
Newark Mosfet Transistor, N Channel, 2.1 A, 900 V, 6.5 Ohm, 10 V, 3.75 V Rohs Compliant: Yes |Stmicroelectronics STP2NK90Z RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 618
  • 1 $2.1000
  • 10 $1.7900
  • 100 $1.3600
  • 500 $1.1600
  • 1,000 $1.0700
  • 2,500 $0.8880
  • 10,000 $0.8470
$0.8470 / $2.1000 Buy Now
DISTI # 497-4378-5-ND
DigiKey MOSFET N-CH 900V 2.1A TO220AB Min Qty: 1 Lead time: 13 Weeks Container: Tube 357
In Stock
  • 1 $2.2600
  • 50 $1.2138
  • 100 $1.1860
  • 500 $0.9544
  • 1,000 $0.8799
  • 2,000 $0.8173
  • 5,000 $0.7837
$0.7837 / $2.2600 Buy Now
DISTI # STP2NK90Z
Avnet Americas Trans MOSFET N-CH 900V 2.1A 3-Pin(3+Tab) TO-220 Tube - Rail/Tube (Alt: STP2NK90Z) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Tube 0
  • 2,000 $0.5720
  • 4,000 $0.5684
  • 6,000 $0.5579
  • 10,000 $0.5478
  • 20,000 $0.5380
$0.5380 / $0.5720 Buy Now
DISTI # 511-STP2NK90Z
Mouser Electronics MOSFETs N-Ch 900 Volt 2.1Amp Zener SuperMESH RoHS: Compliant 940
  • 1 $2.1800
  • 10 $1.6500
  • 25 $1.2200
  • 100 $1.1900
  • 500 $1.0400
  • 1,000 $0.8790
  • 2,000 $0.8170
  • 5,000 $0.7830
$0.7830 / $2.1800 Buy Now
DISTI # E02:0323_00212233
Arrow Electronics Trans MOSFET N-CH 900V 2.1A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2444 Europe - 26637
  • 1 $1.2077
  • 50 $1.1375
  • 100 $1.1261
  • 500 $0.9200
  • 1,000 $0.8453
  • 2,000 $0.6626
  • 5,000 $0.6549
$0.6549 / $1.2077 Buy Now
DISTI # V36:1790_06564679
Arrow Electronics Trans MOSFET N-CH 900V 2.1A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks Date Code: 2435 Americas - 6000
  • 1,000 $0.7996
  • 2,000 $0.6483
  • 5,000 $0.6419
$0.6419 / $0.7996 Buy Now
STMicroelectronics N-channel 900 V, 5 Ohm typ., 2.1 A SuperMESH Power MOSFET in a TO-220 package COO: Singapore RoHS: Compliant Min Qty: 1 940
  • 1 $2.1300
  • 10 $1.5700
  • 25 $1.2000
  • 100 $1.1700
  • 250 $1.1700
  • 500 $1.0200
$1.0200 / $2.1300 Buy Now
DISTI # 87899012
Verical Trans MOSFET N-CH 900V 2.1A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 16 Package Multiple: 1 Date Code: 2444 Americas - 26624
  • 16 $1.1860
  • 50 $1.1263
  • 100 $1.1151
  • 500 $0.9010
  • 1,000 $0.8300
  • 2,000 $0.6504
  • 5,000 $0.6429
$0.6429 / $1.1860 Buy Now
DISTI # 86942281
Verical Trans MOSFET N-CH 900V 2.1A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Date Code: 2435 Americas - 6000
  • 1,000 $0.7996
  • 2,000 $0.6483
  • 5,000 $0.6419
$0.6419 / $0.7996 Buy Now
Bristol Electronics   92
RFQ
DISTI # STP2NK90Z
TME Transistor: N-MOSFET, unipolar, 900V, 1.3A, 70W, TO220-3, ESD Min Qty: 1 70
  • 1 $1.9000
  • 10 $1.0600
  • 50 $1.0300
  • 100 $0.9400
  • 250 $0.8800
  • 500 $0.7800
  • 1,000 $0.7200
  • 2,000 $0.7000
$0.7000 / $1.9000 Buy Now
DISTI # STP2NK90Z
Avnet Silica Trans MOSFET NCH 900V 21A 3Pin3Tab TO220 Tube (Alt: STP2NK90Z) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days Silica - 4250
Buy Now
DISTI # STP2NK90Z
EBV Elektronik Trans MOSFET NCH 900V 21A 3Pin3Tab TO220 Tube (Alt: STP2NK90Z) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now
LCSC 900V 2.1A 70W 6.510V1.05A 4.5V 1 N-channel TO-220 MOSFETs ROHS 44
  • 1 $1.5926
  • 10 $1.2653
  • 30 $1.1251
  • 100 $0.9501
  • 500 $0.8721
  • 1,000 $0.8254
$0.8254 / $1.5926 Buy Now

Part Details for STP2NK90Z

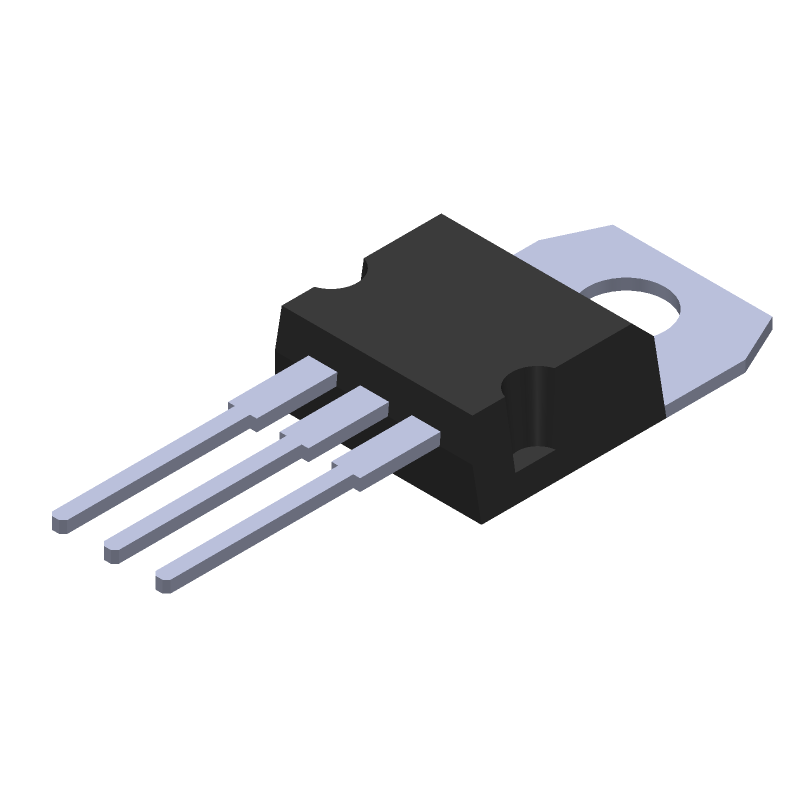

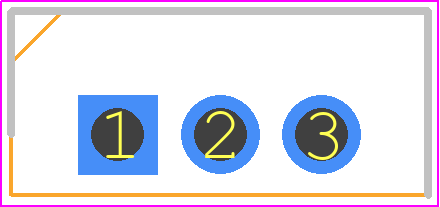

STP2NK90Z CAD Models
