STMM-108-01-T-D by: Samtec Inc

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,

Part Details for STMM-108-01-T-D by Samtec Inc

Results Overview of STMM-108-01-T-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

STMM-108-01-T-D Information

STMM-108-01-T-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for STMM-108-01-T-D

Part # Distributor Description Stock Price Buy
DISTI # 83P2537
Newark Header, 2.0Mm, Boxed, 2X8 Position, Connector Systems:Board-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:16Contacts, Contact Termination Type:Through Hole, Product Range:Stmm Series, Connector Shroud:Shrouded Rohs Compliant: Yes |Samtec STMM-108-01-T-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $3.9200
  • 50 $3.3100
  • 100 $2.6900
  • 500 $1.7800
  • 1,000 $1.3600
$1.3600 / $3.9200 Buy Now
DISTI # 3937-STMM-108-01-T-D-ND
DigiKey CONN HEADER VERT 16POS 2MM Min Qty: 1 Lead time: 6 Weeks Container: Tube MARKETPLACE PRODUCT 181
In Stock
  • 1 $16.0400
$16.0400 Buy Now
DISTI # STMM-108-01-T-D-ND
DigiKey CONN HEADER VERT 16POS 2MM Min Qty: 1 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 26 $2.9400
$2.9400 Buy Now
DISTI # STMM-108-01-T-D
Avnet Americas Conn Shrouded Header HDR 16 POS 2mm Solder ST Thru-Hole Tube - Rail/Tube (Alt: STMM-108-01-T-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Tube 0
  • 1 $2.8812
  • 10 $2.5311
  • 30 $1.7654
  • 50 $1.7563
  • 100 $1.7472
$1.7472 / $2.8812 Buy Now
DISTI # 200-STMM10801TD
Mouser Electronics Headers & Wire Housings 2.00 mm Shrouded Terminal Strip RoHS: Compliant 0
  • 1 $2.9400
  • 52 $2.3900
  • 104 $2.0300
  • 520 $1.8100
  • 1,014 $1.3500
  • 2,002 $1.2000
  • 5,018 $0.8900
  • 10,010 $0.5800
$0.5800 / $2.9400 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 10 $2.5960
  • 100 $2.1090
  • 250 $2.0150
  • 500 $1.9570
  • 1,000 $1.3840
  • 2,500 $1.2600
  • 5,000 $0.9330
  • 7,500 $0.9090
$0.9090 / $2.5960 Buy Now
DISTI # STMM10801TD
TTI Headers & Wire Housings RoHS: Compliant pbFree: Pb-Free Min Qty: 26 Package Multiple: 26 Container: Tube Americas - 0
  • 26 $1.8600
  • 52 $1.8200
  • 104 $1.7800
  • 520 $1.7500
  • 1,014 $1.3500
  • 2,002 $1.2000
  • 5,018 $0.8900
$0.8900 / $1.8600 Buy Now
DISTI # 5cd92090cd7c1c4c387a270f
Samtec 2.00 mm Shrouded Terminal Strip, Cable Mate RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 3 Days Container: Tube 0
  • 1 $2.9400
  • 50 $2.3900
  • 100 $2.0300
  • 500 $1.8100
  • 1,000 $1.3500
  • 2,000 $1.2000
  • 5,000 $0.8900
  • 10,000 $0.5800
$0.5800 / $2.9400 Buy Now
DISTI # 000000000000154480
Sager Headers & Wire Housings 2.00 mm Shrouded Terminal Strip, Cable Mate Min Qty: 1 0
  • 1 $2.9400
  • 50 $2.3900
  • 100 $2.0300
  • 500 $1.8100
  • 1,000 $1.3500
  • 2,000 $1.2000
$1.2000 / $2.9400 Buy Now
DISTI # STMM-108-01-T-D
Avnet Abacus Pin Header BoardtoBoard 2 mm 2 Rows 16 Contacts Through Hole STMM Series (Alt: STMM-108-01-T-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # STMM-108-01-T-D
Avnet Abacus Pin Header BoardtoBoard 2 mm 2 Rows 16 Contacts Through Hole STMM Series (Alt: STMM-108-01-T-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 10 $2.5960
  • 100 $2.1090
  • 250 $2.0150
  • 500 $1.9570
  • 1,000 $1.3840
  • 2,500 $1.2600
  • 5,000 $0.9330
  • 7,500 $0.9090
$0.9090 / $2.5960 Buy Now

Part Details for STMM-108-01-T-D

STMM-108-01-T-D CAD Models

  • Part Symbol

    Part Symbol

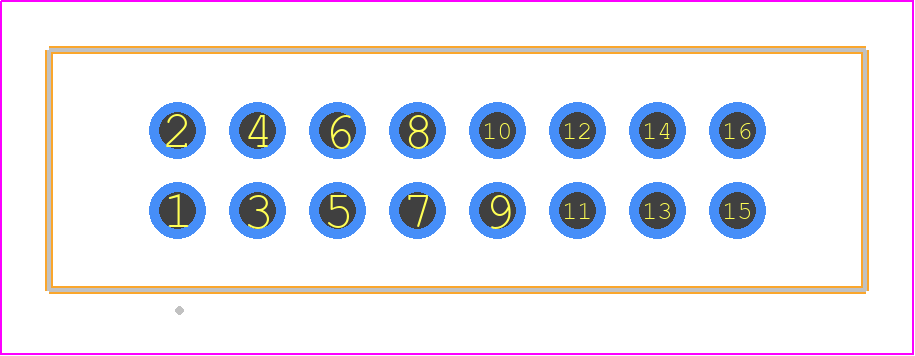

  • Footprint
