Microcontrollers and Processors / Microcontrollers / STM8S207RBT6C
Datasheets
STM8S207RBT6C by: STMicroelectronics

Mainstream Performance line 8-bit MCU with 128 Kbytes Flash, 24 MHz CPU, integrated EEPROM

Part Details for STM8S207RBT6C by STMicroelectronics

Results Overview of STM8S207RBT6C by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities Automotive

STM8S207RBT6C Information

STM8S207RBT6C by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM8S207RBT6C

Part # Distributor Description Stock Price Buy
DISTI # 497-11589-ND
DigiKey IC MCU 8BIT 128KB FLASH 64LQFP Min Qty: 1 Lead time: 10 Weeks Container: Tray 536
In Stock
  • 1 $4.4600
  • 10 $3.3840
  • 24 $3.1258
  • 90 $2.8383
  • 270 $2.6685
  • 450 $2.6057
  • 990 $2.5248
  • 2,430 $2.4521
$2.4521 / $4.4600 Buy Now
DISTI # STM8S207RBT6C
Avnet Americas MCU 8-bit STM8S STM8 CISC 128KB Flash 3.3V/5V 64-Pin LQFP Tray - Trays (Alt: STM8S207RBT6C) RoHS: Compliant Min Qty: 540 Package Multiple: 540 Lead time: 10 Weeks, 0 Days Container: Tray 0
  • 540 $2.2819
  • 1,080 $2.2675
  • 2,160 $2.2256
  • 3,240 $2.1970
  • 4,320 $2.1857
$2.1857 / $2.2819 Buy Now
DISTI # 511-STM8S207RBT6C
Mouser Electronics 8-bit Microcontrollers - MCU Performance line 24 MHz 8-bit MCU RoHS: Compliant 355
  • 1 $3.1200
  • 10 $2.2900
$2.2900 / $3.1200 Buy Now
DISTI # E02:0323_01814753
Arrow Electronics MCU 8-bit STM8 CISC 128KB Flash 3.3V/5V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2431 Europe - 1115
  • 1 $2.8385
  • 10 $2.3704
$2.3704 / $2.8385 Buy Now
STMicroelectronics Mainstream Performance line 8-bit MCU with 128 Kbytes Flash, 24 MHz CPU, integrated EEPROM RoHS: Compliant Min Qty: 1 355
  • 1 $3.0600
  • 10 $2.2200
  • 25 $2.2200
  • 100 $2.2200
  • 250 $2.2200
$2.2200 / $3.0600 Buy Now
DISTI # 86929715
Verical MCU 8-bit STM8 CISC 128KB Flash 3.3V/5V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2431 Americas - 1113
  • 3 $2.8600
  • 10 $2.3929
$2.3929 / $2.8600 Buy Now
Quest Components MICROCONTROLLER, 8-BIT, FLASH, STM8 CPU, 24MHZ, CMOS, PQFP64 612
  • 1 $5.8500
  • 69 $2.5350
  • 198 $2.3400
$2.3400 / $5.8500 Buy Now
DISTI # STM8S207RBT6C
Avnet Silica MCU 8bit STM8S STM8 CISC 128KB Flash 33V5V 64Pin LQFP Tray (Alt: STM8S207RBT6C) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 11 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM8S207RBT6C
EBV Elektronik MCU 8bit STM8S STM8 CISC 128KB Flash 33V5V 64Pin LQFP Tray (Alt: STM8S207RBT6C) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now
LCSC STM8 24MHz LQFP-64(14x14) Microcontrollers (MCU/MPU/SOC) ROHS 330
  • 1 $3.0853
  • 10 $2.6523
  • 30 $2.3943
  • 100 $2.1348
  • 500 $2.0141
  • 1,000 $1.9598
$1.9598 / $3.0853 Buy Now
Vyrian Peripheral ICs 648
RFQ
Win Source Electronics IC MCU 8BIT 128KB FLASH 64LQFP 1902
  • 14 $4.2857
  • 33 $3.5165
  • 51 $3.4066
  • 71 $3.2968
  • 91 $3.1868
  • 122 $2.8572
$2.8572 / $4.2857 Buy Now

Part Details for STM8S207RBT6C

STM8S207RBT6C CAD Models

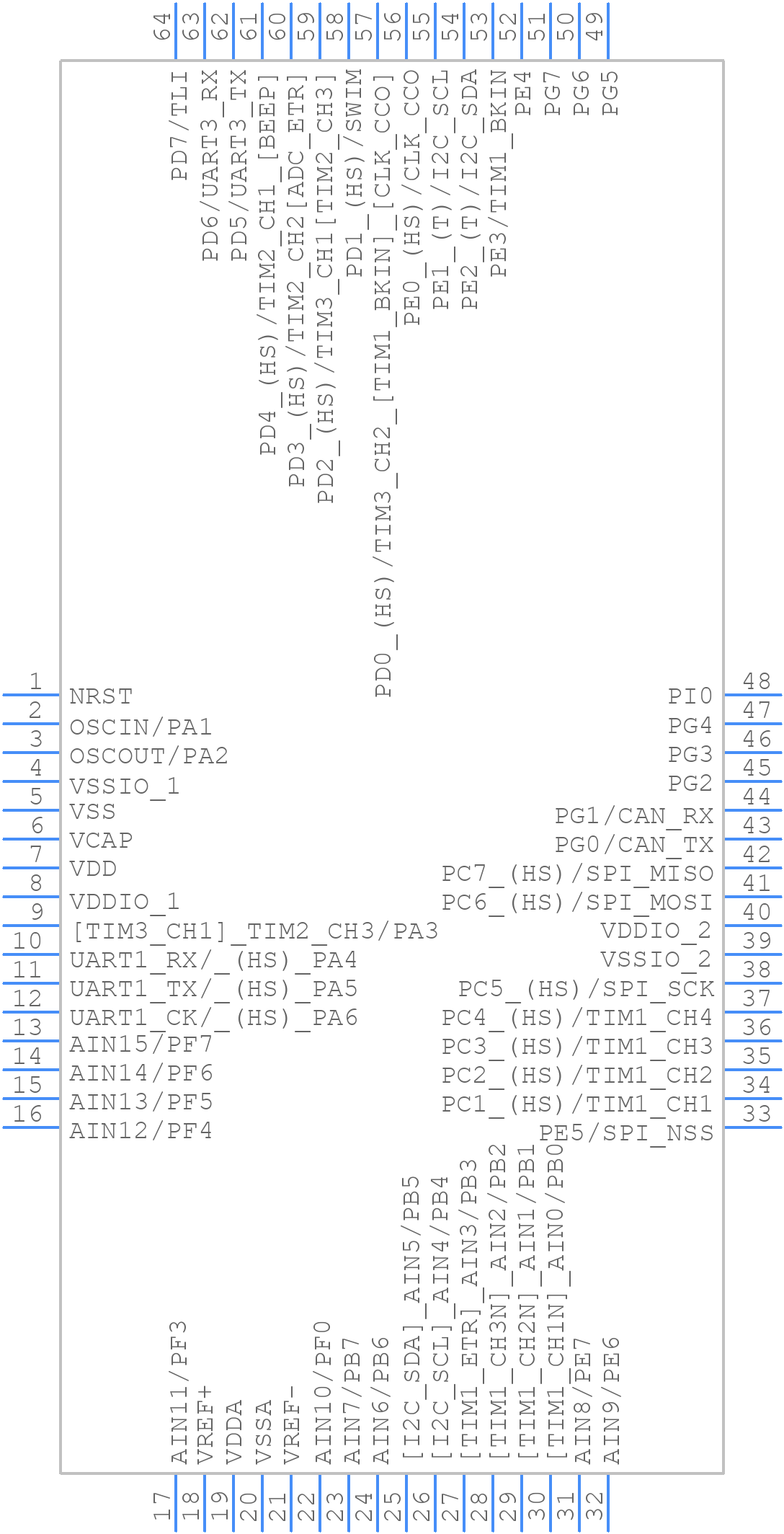

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

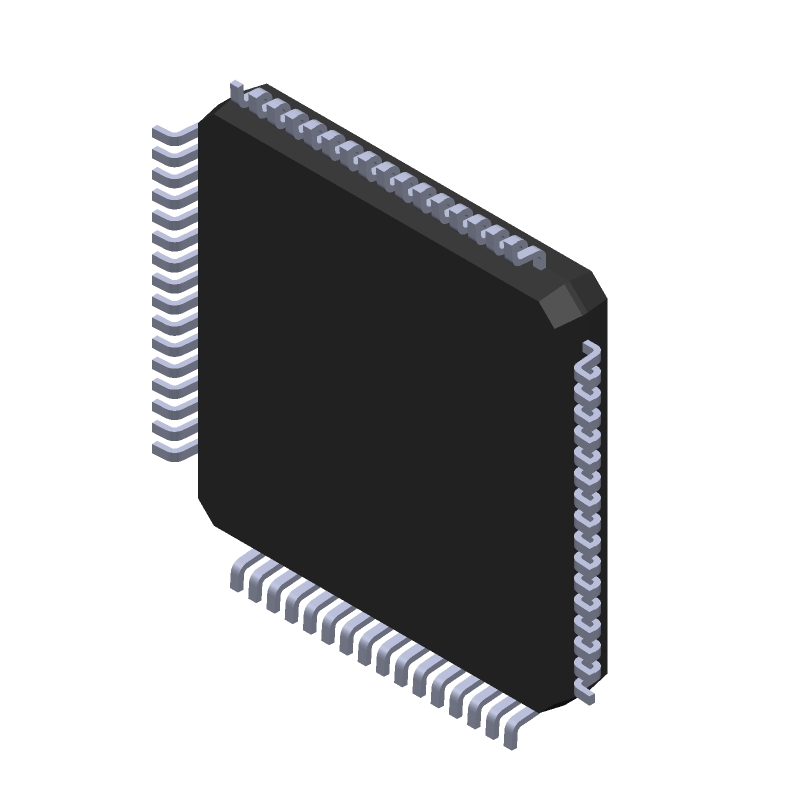

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM8S207RBT6C Part Data Attributes

Parametric Data
STM8S207RBT6C STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM8S207RBT6C STMicroelectronics Mainstream Performance line 8-bit MCU with 128 Kbytes Flash, 24 MHz CPU, integrated EEPROM
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description 14 X 14 MM, ROHS COMPLIANT, LQFP-64
Pin Count 64
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 10 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Additional Feature WHEN TEMPERATURE IS GREATER THAN 105 DEGREE CELCIUS, MICROCONTROLLER SPEED WILL BE REDUCED TO 16 MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family STM8
Clock Frequency-Max 24 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G64
JESD-609 Code e1
Length 14 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of External Interrupts 36
Number of I/O Lines 52
Number of Terminals 64
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP64,.63SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 6144
RAM (words) 6144
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 24 MHz
Supply Current-Max 18 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

STM8S207RBT6C Related Parts

STM8S207RBT6C Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM8S207RBT6C is 24 MHz, but it can be overclocked to 32 MHz with a reduced voltage supply.

  • The clock source can be configured using the Clock Security System (CSS) and the Clock Control Register (CKR). The internal RC oscillator can be used as the clock source, or an external clock source can be used.

  • The NPOR (Non-Programmable Option Register) and NPIWE (Non-Programmable Internal Weak Pull-up Enable) bits are used to configure the internal pull-up resistors on the I/O pins. NPOR sets the pull-up resistors to be enabled or disabled, while NPIWE sets the weak pull-up resistors to be enabled or disabled.

  • The WDT can be enabled or disabled using the WDTE (Watchdog Timer Enable) bit in the WDT Control Register (WDTCR). The WDT timeout period can be set using the WDTP (Watchdog Timer Prescaler) bits in the WDTCR.

  • The BOR feature resets the microcontroller when the supply voltage falls below a certain threshold (typically 1.9V). This helps prevent the microcontroller from operating erratically or unpredictably during power-on or power-down sequences.
