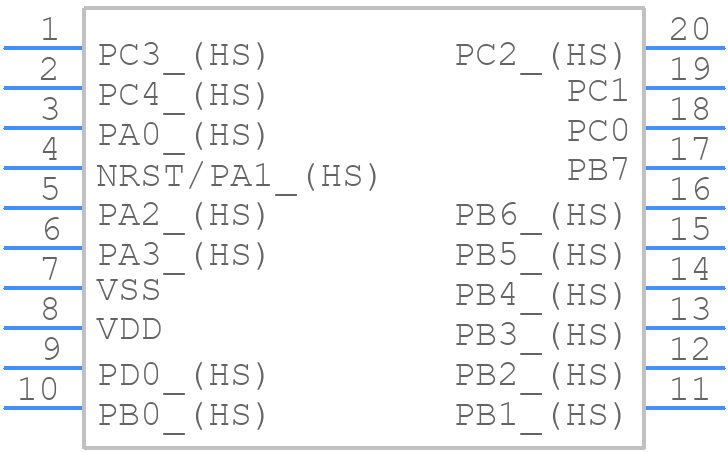

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM8L101F3P3 by STMicroelectronics
Results Overview of STM8L101F3P3 by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Industrial Automation
Smart Cities
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
STM8L101F3P3 Information
STM8L101F3P3 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM8L101F3P3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-18971-ND
|
DigiKey | IC MCU 8BIT 8KB FLASH 20TSSOP Min Qty: 1 Lead time: 10 Weeks Container: Tray | Temporarily Out of Stock |
|
$0.8616 / $1.7500 | Buy Now |
|
DISTI #
STM8L101F3P3
|
Avnet Americas | MCU 8-bit STM8L STM8 CISC 8KB ROM 1.8V/2.5V 20-Pin TSSOP Tray - Rail/Tube (Alt: STM8L101F3P3) RoHS: Compliant Min Qty: 1480 Package Multiple: 1480 Lead time: 10 Weeks, 0 Days Container: Tube | 0 |
|
$0.8357 / $0.8530 | Buy Now |
|
DISTI #
511-STM8L101F3P3
|
Mouser Electronics | 8-bit Microcontrollers - MCU 8-bit Ultralow MCU 8kb TSSOP 20 pin RoHS: Compliant | 0 |
|
$0.8390 / $0.8800 | Order Now |
|
DISTI #
STM8L101F3P3
|
TME | IC: STM8 microcontroller, 16MHz, TSSOP20, 1.65÷3.6VDC, Cmp: 2 Min Qty: 1 | 0 |
|
$0.9200 / $1.3100 | RFQ |
|
DISTI #
STM8L101F3P3
|
Avnet Silica | MCU 8bit STM8L STM8 CISC 8KB ROM 18V25V 20Pin TSSOP Tray (Alt: STM8L101F3P3) RoHS: Compliant Min Qty: 74 Package Multiple: 74 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM8L101F3P3
|
EBV Elektronik | MCU 8bit STM8L STM8 CISC 8KB ROM 18V25V 20Pin TSSOP Tray (Alt: STM8L101F3P3) RoHS: Compliant Min Qty: 74 Package Multiple: 74 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for STM8L101F3P3
STM8L101F3P3 CAD Models
STM8L101F3P3 Part Data Attributes
|
|
STM8L101F3P3
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM8L101F3P3
STMicroelectronics
Ultra-low-power 8-bit MCU with 8 Kbytes Flash, 16 MHz CPU, up to 2-Kbyte of EEPROM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TSSOP | |
| Package Description | ROHS COMPLIANT, TSSOP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | NO | |
| Address Bus Width | ||
| Bit Size | 8 | |
| CPU Family | ST8 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 18 | |
| Number of Terminals | 20 | |
| Number of Timers | 6 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP2 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 1536 | |
| ROM (words) | 6144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 16 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.65 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
