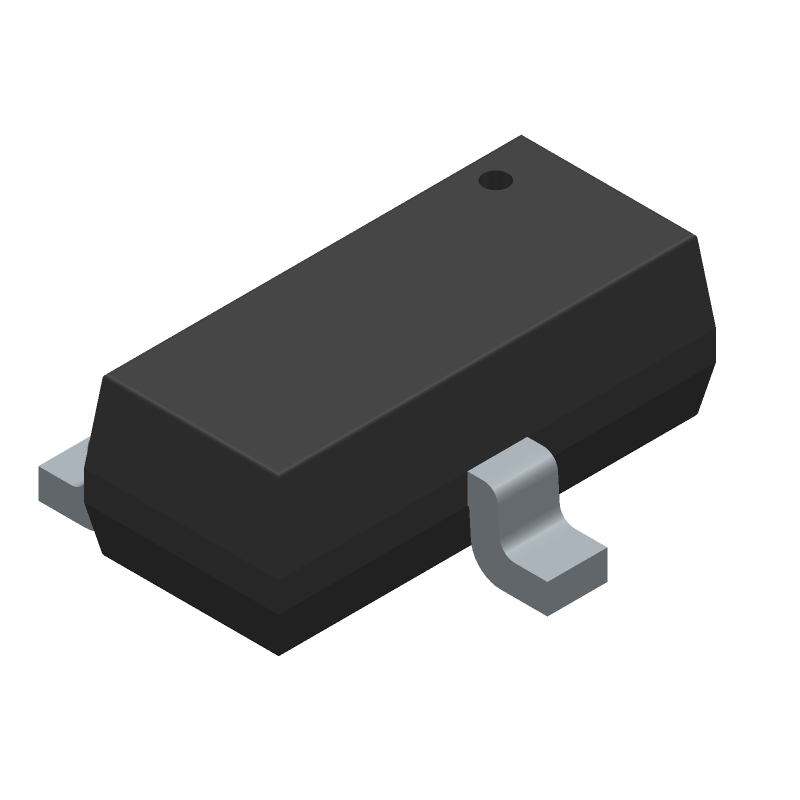

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM810TWX6F by STMicroelectronics
Results Overview of STM810TWX6F by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Telecommunications
Automotive
STM810TWX6F Information
STM810TWX6F by STMicroelectronics is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for STM810TWX6F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97J2746
|
Newark | Mpu Supervisor/Monitor, -40 To 85Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:3.08V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1.2V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Stmicroelectronics STM810TWX6F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3611 |
|
$0.2330 / $0.5700 | Buy Now |
|
DISTI #
497-3344-1-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-3 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3046 In Stock |
|
$0.2350 / $0.5700 | Buy Now |
|
DISTI #
97J2746
|
Avnet Americas | Processor Supervisor 3.08V 3V/3.3V/5V 3-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 97J2746) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 890 Partner Stock |
|
$0.3050 / $0.5900 | Buy Now |
|
DISTI #
STM810TWX6F
|
Avnet Americas | Processor Supervisor 3.08V 3V/3.3V/5V 3-Pin SOT-23 T/R - Tape and Reel (Alt: STM810TWX6F) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.1968 / $0.2009 | Buy Now |
|
DISTI #
511-STM810TWX6F
|
Mouser Electronics | Supervisory Circuits 3.08V Reset 140ms RoHS: Compliant | 3476 |
|
$0.2290 / $0.5700 | Buy Now |
|
|
STMicroelectronics | Reset circuit RoHS: Compliant Min Qty: 1 | 3076 |
|
$0.2700 / $0.5600 | Buy Now |
|
|
Bristol Electronics | Min Qty: 9 | 4982 |
|
$0.1521 / $0.5850 | Buy Now |
|
|
Bristol Electronics | 2930 |
|
RFQ | ||
|
|
Quest Components | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3 | 3985 |
|
$0.1950 / $0.7800 | Buy Now |
|
|
Quest Components | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3 | 1034 |
|
$0.2673 / $0.6414 | Buy Now |
Part Details for STM810TWX6F
STM810TWX6F CAD Models
STM810TWX6F Part Data Attributes
|
|
STM810TWX6F
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM810TWX6F
STMicroelectronics
Reset circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOT-23 | |
| Package Description | LEAD FREE, SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Current-Max (Isup) | 0.015 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +3.08V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 mm |
Alternate Parts for STM810TWX6F
This table gives cross-reference parts and alternative options found for STM810TWX6F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM810TWX6F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| STM810TWX6 | STMicroelectronics | Check for Price | IC,VOLT DETECTOR,FIXED,+3.08V,TO-236,3PIN,PLASTIC | STM810TWX6F vs STM810TWX6 |
STM810TWX6F Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the STM810TWX6F is 1.7V to 3.6V.
-
The STM810TWX6F can be configured for I2C or SPI communication by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations.
-
The maximum clock frequency supported by the STM810TWX6F is 400 kHz for I2C mode and 10 MHz for SPI mode.
-
Interrupts generated by the STM810TWX6F can be handled by connecting the INT pin to a microcontroller or other interrupt-capable device, and then writing interrupt service routines to handle the interrupts.
-
The typical current consumption of the STM810TWX6F is 1.5 mA in active mode and 1.5 μA in standby mode.
