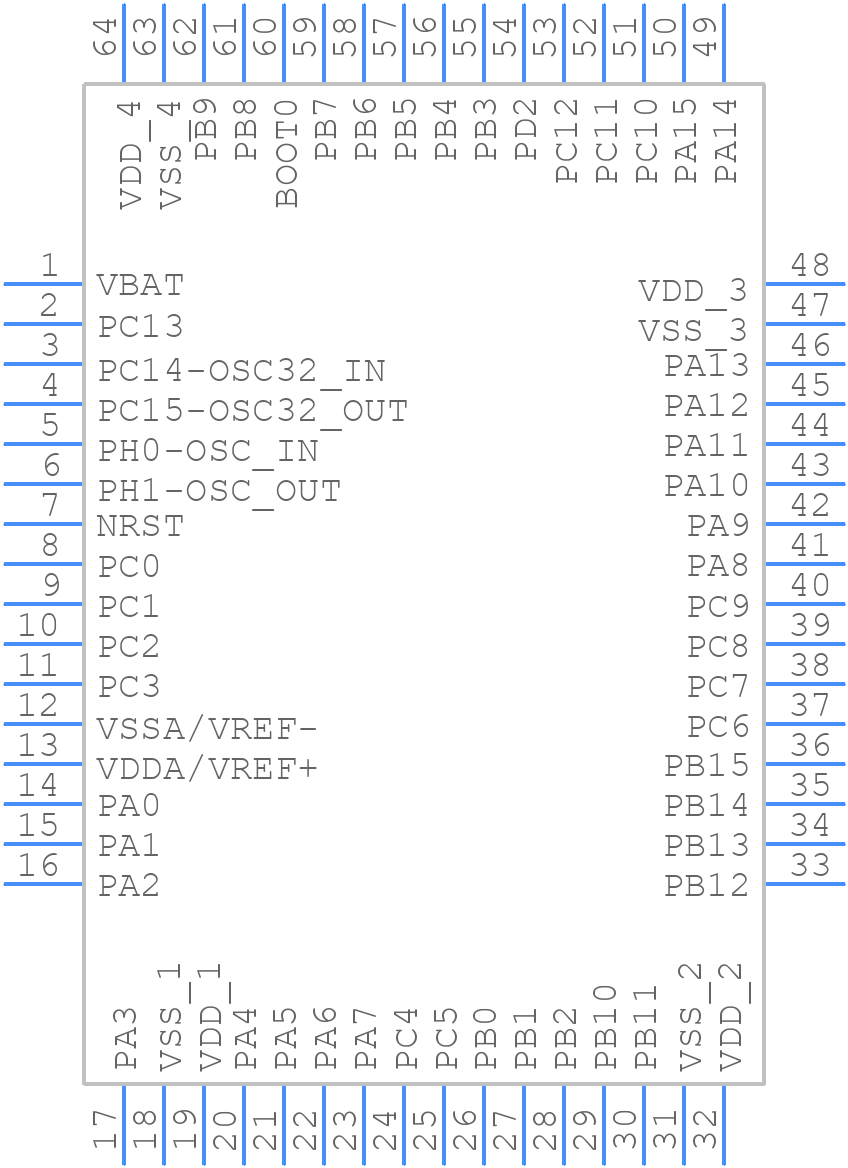

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32L471RGT6 by STMicroelectronics
Results Overview of STM32L471RGT6 by STMicroelectronics
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32L471RGT6 Information
STM32L471RGT6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L471RGT6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AC9579
|
Newark | Mcu, Arm Cortex-M4F, 80Mhz, Lqfp-64, Product Range:Stm32 Family Stm32L4 Series Microcontrollers, Device Core:Arm Cortex-M4F, Data Bus Width:32 Bit, Operating Frequency Max:80Mhz, Program Memory Size:1Mb, No. Of Pins:64Pins Rohs Compliant: Yes |Stmicroelectronics STM32L471RGT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1147 |
|
$5.5400 / $9.0100 | Buy Now |
|
DISTI #
23AC9981
|
Newark | 16/32-Bits Micros |Stmicroelectronics STM32L471RGT6 RoHS: Not Compliant Min Qty: 160 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.5400 / $6.0400 | Buy Now |
|
DISTI #
497-16387-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 64LQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray |
902 In Stock |
|
$5.2804 / $8.8500 | Buy Now |
|
DISTI #
STM32L471RGT6
|
Avnet Americas | ARM MCU, Ultra Low Power, STM32 Family STM32L4 Series Microcontrollers, ARM Cortex-M4F, 32 bit - Trays (Alt: STM32L471RGT6) RoHS: Compliant Min Qty: 160 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tray | 2682 |
|
$4.5355 / $4.8190 | Buy Now |
|
DISTI #
51AC9579
|
Avnet Americas | ARM MCU, Ultra Low Power, STM32 Family STM32L4 Series Microcontrollers, ARM Cortex-M4F, 32 bit - Bulk (Alt: 51AC9579) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 1 Days Container: Bulk | 1147 Partner Stock |
|
$5.5800 / $9.7600 | Buy Now |
|
DISTI #
STM32L471RGT6
|
Avnet Americas | ARM MCU, Ultra Low Power, STM32 Family STM32L4 Series Microcontrollers, ARM Cortex-M4F, 32 bit - Trays (Alt: STM32L471RGT6) RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 111 Weeks, 0 Days Container: Tray | 0 |
|
RFQ | |
|
DISTI #
511-STM32L471RGT6
|
Mouser Electronics | ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 1 Mbyte of Flash , DFSDM RoHS: Compliant | 2076 |
|
$5.1700 / $8.8500 | Buy Now |
|
|
STMicroelectronics | Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 1 Mbyte of Flash memory, DFSDM RoHS: Compliant Min Qty: 1 | 2076 |
|
$5.1900 / $8.6700 | Buy Now |
|
|
Future Electronics | STM32L Series 1 MB Flash 128 kB RAM 80 MHz 32-Bit Microcontroller - LQFP-64 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Tray | 2Tray |
|
$4.2800 / $4.6200 | Buy Now |
|
DISTI #
30607676
|
Verical | MCU 32-bit ARM Cortex M4 RISC 1MB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 6 Package Multiple: 1 | Americas - 845 |
|
$7.4300 | Buy Now |
Part Details for STM32L471RGT6
STM32L471RGT6 CAD Models
STM32L471RGT6 Part Data Attributes
|
|
STM32L471RGT6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L471RGT6
STMicroelectronics
Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 1 Mbyte of Flash memory, DFSDM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | 10 X 10 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Clock Frequency-Max | 48 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| Length | 10 mm | |
| Number of I/O Lines | 51 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 80 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
STM32L471RGT6 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L471RGT6 is 80 MHz.
-
The STM32L471RGT6 has 1 MB of flash memory.
-
The power consumption of the STM32L471RGT6 in low-power mode (Stop mode) is approximately 1.3 μA/MHz.
-
Yes, the STM32L471RGT6 has a built-in USB 2.0 full-speed interface.
-
Yes, the STM32L471RGT6 can operate at a voltage range of 1.71V to 3.6V, including 1.8V.
