Microcontrollers and Processors / Microcontrollers / STM32L471RET6TR
Datasheets
STM32L471RET6TR by: STMicroelectronics

Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 512 Kbytes of Flash memory, DFSDM

Part Details for STM32L471RET6TR by STMicroelectronics

Results Overview of STM32L471RET6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM32L471RET6TR Information

STM32L471RET6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L471RET6TR

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32L471RET6TR-ND
DigiKey IC MCU 32BIT 512KB FLASH 64LQFP Min Qty: 1000 Lead time: 12 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $4.1935
$4.1935 Buy Now
DISTI # STM32L471RET6TR
Avnet Americas MCU 32-Bit STM32 ARM Cortex M4 RISC 512KB Flash 1.8V/2.5V/3.3V 64-Pin LQFP T/R - Tape and Reel (Alt: STM32L471RET6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 1,000 $3.7925
  • 2,000 $3.7000
  • 4,000 $3.6554
  • 6,000 $3.6119
  • 8,000 $3.5694
$3.5694 / $3.7925 Buy Now
DISTI # 511-STM32L471RET6TR
Mouser Electronics ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 512 Kbytes of Flash , DFSDM RoHS: Compliant 0
  • 1,000 $4.1400
$4.1400 Order Now
STMicroelectronics Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 512 Kbytes Flash, DFSDM RoHS: Compliant Min Qty: 1 0
  • 1 $8.6100
  • 10 $6.4600
  • 25 $6.1600
  • 50 $6.1600
  • 100 $5.3500
  • 250 $5.1100
  • 500 $4.7700
$4.7700 / $8.6100 Buy Now
DISTI # 65766876
Verical MCU 32-bit ARM Cortex M4 RISC 512KB Flash 2.5V/3.3V 64-Pin LQFP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 1097
  • 2 $6.6987
$6.6987 Buy Now
DISTI # STM32L471RET6TR
IBS Electronics MCU 32-BIT STM32 ARM CORTEX M4 RISC 512KB FLASH 1.8V/2.5V/3.3V 64-PIN LQFP T/R Min Qty: 1000 Package Multiple: 1 0
  • 1,000 $4.6410
$4.6410 Buy Now
DISTI # STM32L471RET6TR
Avnet Silica MCU 32Bit STM32 ARM Cortex M4 RISC 512KB Flash 18V25V33V 64Pin LQFP TR (Alt: STM32L471RET6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited IC MCU 32BIT 512KB FLASH 64LQFP 15000
RFQ
DISTI # STM32L471RET6TR
EBV Elektronik MCU 32Bit STM32 ARM Cortex M4 RISC 512KB Flash 18V25V33V 64Pin LQFP TR (Alt: STM32L471RET6TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days EBV - 46000
Buy Now
LCSC ARM-M4 80MHz LQFP-64(10x10) Microcontrollers (MCU/MPU/SOC) ROHS 5
  • 1 $3.4423
  • 10 $3.3608
  • 30 $3.3050
  • 100 $3.2507
$3.2507 / $3.4423 Buy Now
MacroQuest Electronics STOCK 1920
  • 1 $5.9300
  • 100 $5.3900
  • 1,000 $4.9000
  • 1,920 $4.4600
$4.4600 / $5.9300 Buy Now
Vyrian Peripheral ICs 25364
RFQ
Win Source Electronics IC MCU 32BIT 512KB FLASH 64LQFP / ARM® Cortex®-M4 STM32L4 Microcontroller IC 32-Bit Single-Core 80MHz 512KB (512K x 8) FLASH 64-LQFP (10x10) 21000
  • 15 $3.9651
  • 36 $3.2536
  • 55 $3.1518
  • 76 $3.0501
  • 98 $2.9485
  • 132 $2.6435
$2.6435 / $3.9651 Buy Now

Part Details for STM32L471RET6TR

STM32L471RET6TR CAD Models

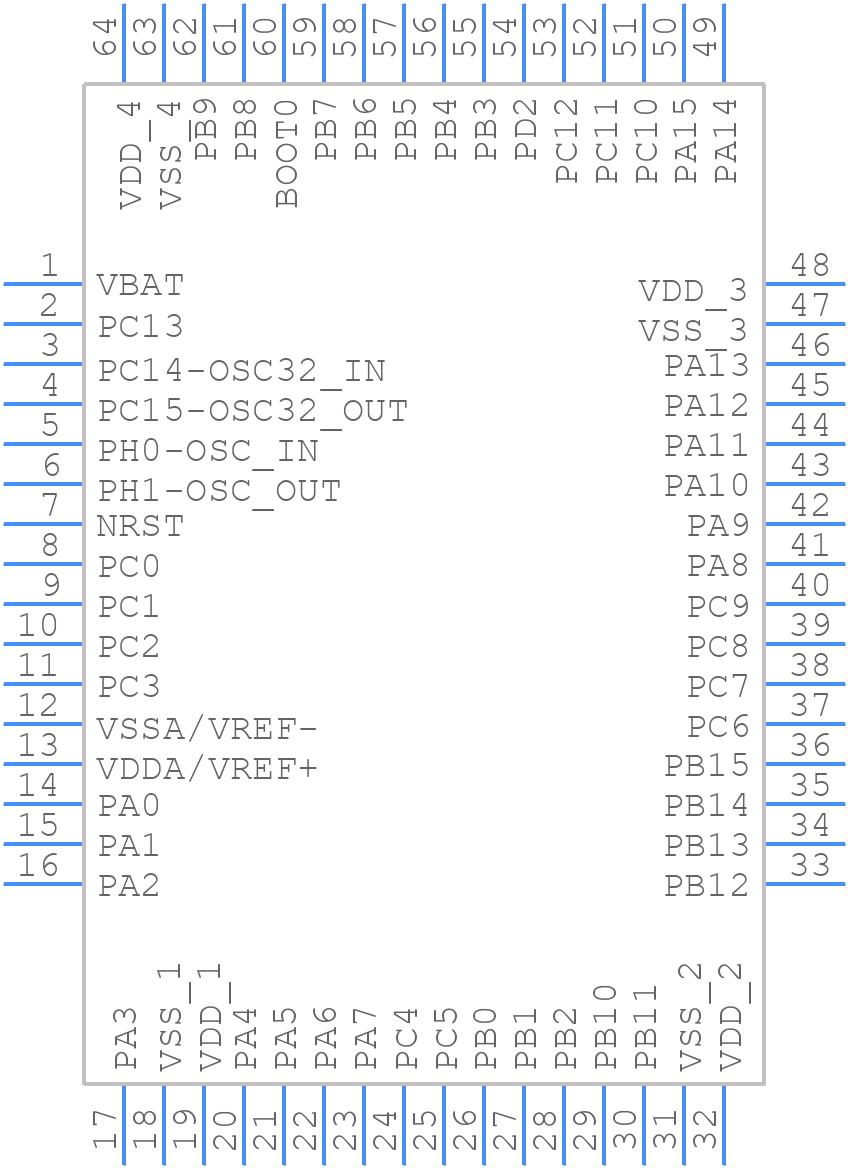

  • Part Symbol

    Part Symbol

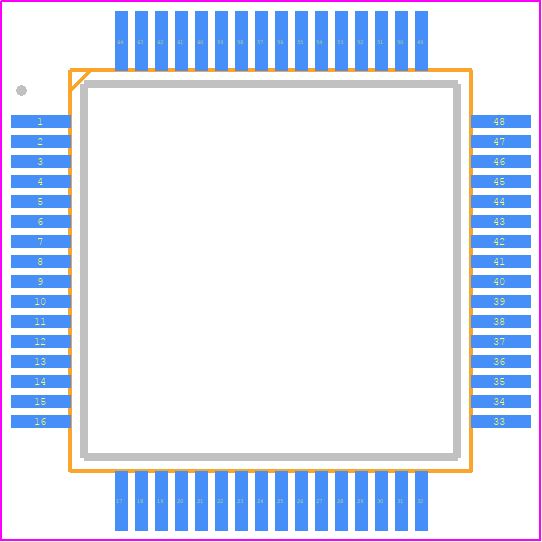

  • Footprint

    footprint

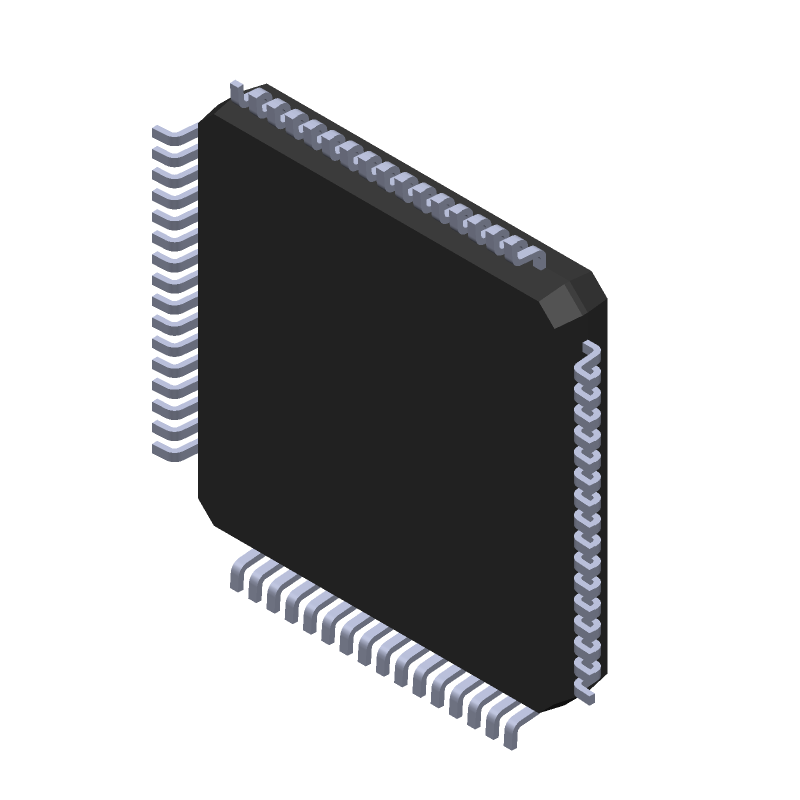

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L471RET6TR Part Data Attributes

Parametric Data
STM32L471RET6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L471RET6TR STMicroelectronics Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 512 Kbytes of Flash memory, DFSDM
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description LQFP-64
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 12 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width 26
Bit Size 32
Clock Frequency-Max 48 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width 16
JESD-30 Code S-PQFP-G64
Length 10 mm
Number of I/O Lines 51
Number of Terminals 64
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
RAM (bytes) 131072
ROM (words) 524288
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 80 MHz
Supply Voltage-Max 3.6 V
Supply Voltage-Min 1.8 V
Supply Voltage-Nom 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

STM32L471RET6TR Related Parts

STM32L471RET6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L471RET6TR is 80 MHz.

  • The STM32L471RET6TR has 1 MB of flash memory.

  • The power consumption of the STM32L471RET6TR in low-power mode (Stop mode) is approximately 350 nA/MHz.

  • Yes, the STM32L471RET6TR has a built-in USB 2.0 full-speed interface.

  • Yes, the STM32L471RET6TR can operate at a voltage range of 1.71V to 3.6V, including 1.8V.
