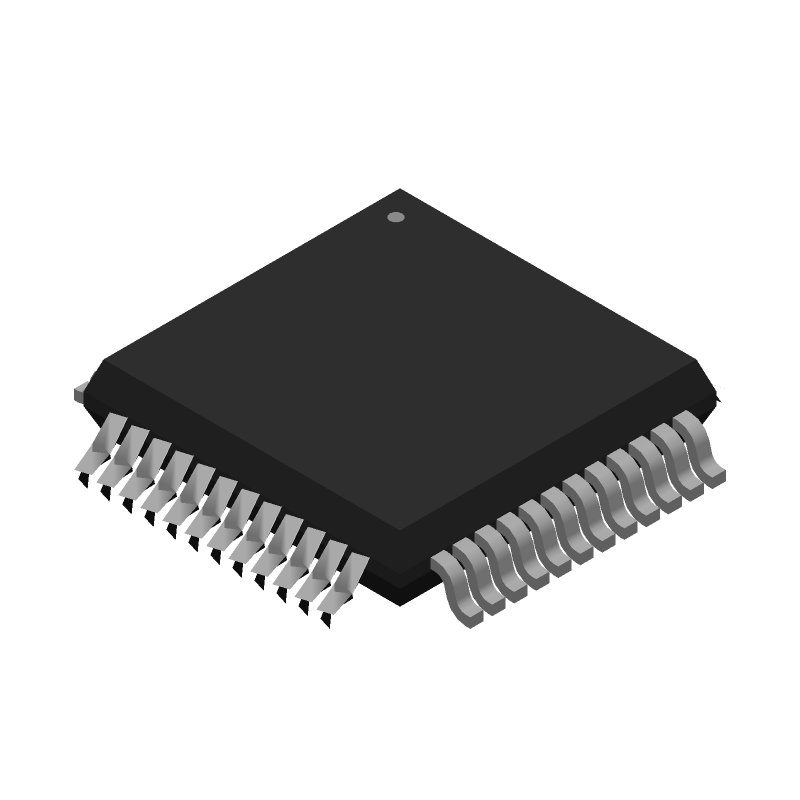

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32L433CCT3TR by STMicroelectronics
Results Overview of STM32L433CCT3TR by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32L433CCT3TR Information
STM32L433CCT3TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L433CCT3TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-STM32L433CCT3TR-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 48LQFP Min Qty: 2400 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.2899 | Buy Now |
|
DISTI #
STM32L433CCT3TR
|
Avnet Americas | MCU 32-Bit STM32L433 ARM Cortex-M4F RISC 256KB Flash 1.71V to 3.6V 48-Pin LQFP T/R - Tape and Reel (Alt: STM32L433CCT3TR) RoHS: Not Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$3.1583 / $3.2241 | Buy Now |
|
DISTI #
511-STM32L433CCT3TR
|
Mouser Electronics | ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 256 Kbytes Flash memory, LCD, USB RoHS: Compliant | 0 |
|
$3.2200 | Order Now |
|
|
STMicroelectronics | Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 256 Kbytes of Flash memory, LCD, USB RoHS: Compliant Min Qty: 1 | 0 |
|
$4.0800 / $6.5100 | Buy Now |
|
DISTI #
STM32L433CCT3TR
|
Avnet Silica | MCU 32Bit STM32L433 ARM CortexM4F RISC 256KB Flash 171V to 36V 48Pin LQFP TR (Alt: STM32L433CCT3TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM32L433CCT3TR
|
EBV Elektronik | MCU 32Bit STM32L433 ARM CortexM4F RISC 256KB Flash 171V to 36V 48Pin LQFP TR (Alt: STM32L433CCT3TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days | EBV - 2400 |
|
Buy Now |
Part Details for STM32L433CCT3TR
STM32L433CCT3TR CAD Models
STM32L433CCT3TR Part Data Attributes
|
|
STM32L433CCT3TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L433CCT3TR
STMicroelectronics
Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 256 Kbytes of Flash memory, LCD, USB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M4 | |
| Clock Frequency-Max | 48 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G48 | |
| Length | 7 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 14 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 38 | |
| Number of Terminals | 48 | |
| Number of Timers | 11 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| RAM (bytes) | 65536 | |
| RAM (words) | 65536 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 80 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
STM32L433CCT3TR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the STM32L433CCT3TR is -40°C to 85°C (industrial grade) and -40°C to 125°C (extended grade).
-
The internal clock source for the STM32L433CCT3TR can be configured using the Clock Security System (CSS) and the Power Management Unit (PMU). The HSE (High-Speed External) clock, LSE (Low-Speed External) clock, HSI (High-Speed Internal) clock, and LSI (Low-Speed Internal) clock can be used as clock sources. The clock configuration is done using the RCC (Reset and Clock Control) registers.
-
The maximum current consumption of the STM32L433CCT3TR depends on the operating mode and frequency. In Run mode, the maximum current consumption is around 350 μA/MHz at 32 MHz with all peripherals enabled. In Low Power Run mode, the maximum current consumption is around 150 μA/MHz at 32 MHz with all peripherals enabled. In Sleep mode, the current consumption is around 20 μA.
-
The DMA controller on the STM32L433CCT3TR can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller has 12 channels, each of which can be configured to transfer data between a peripheral and memory. The DMA controller is configured using the DMA registers and the peripheral-specific registers.
-
The maximum frequency of the SPI interface on the STM32L433CCT3TR is 50 MHz in master mode and 45 MHz in slave mode.
