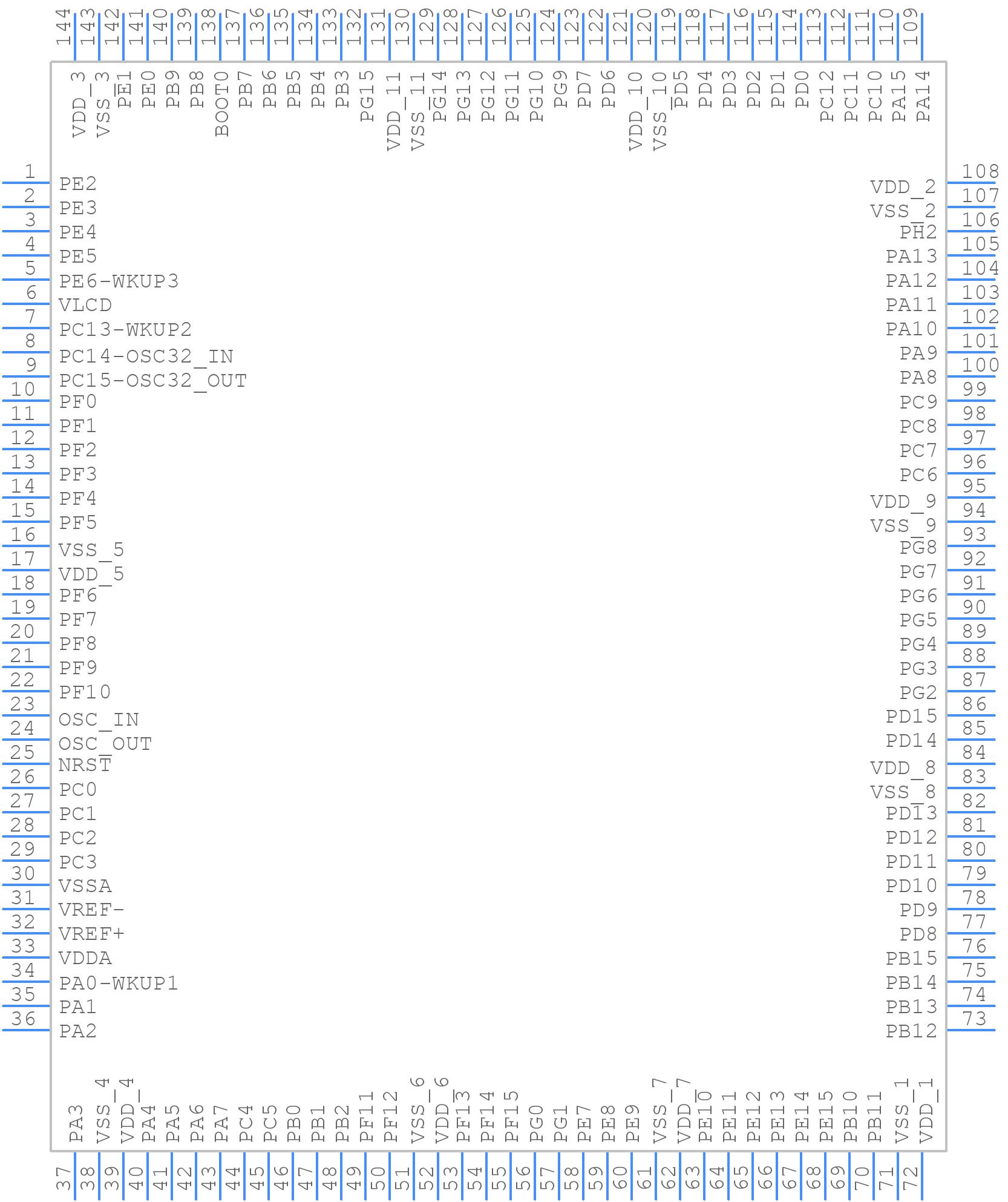

Part Symbol
-

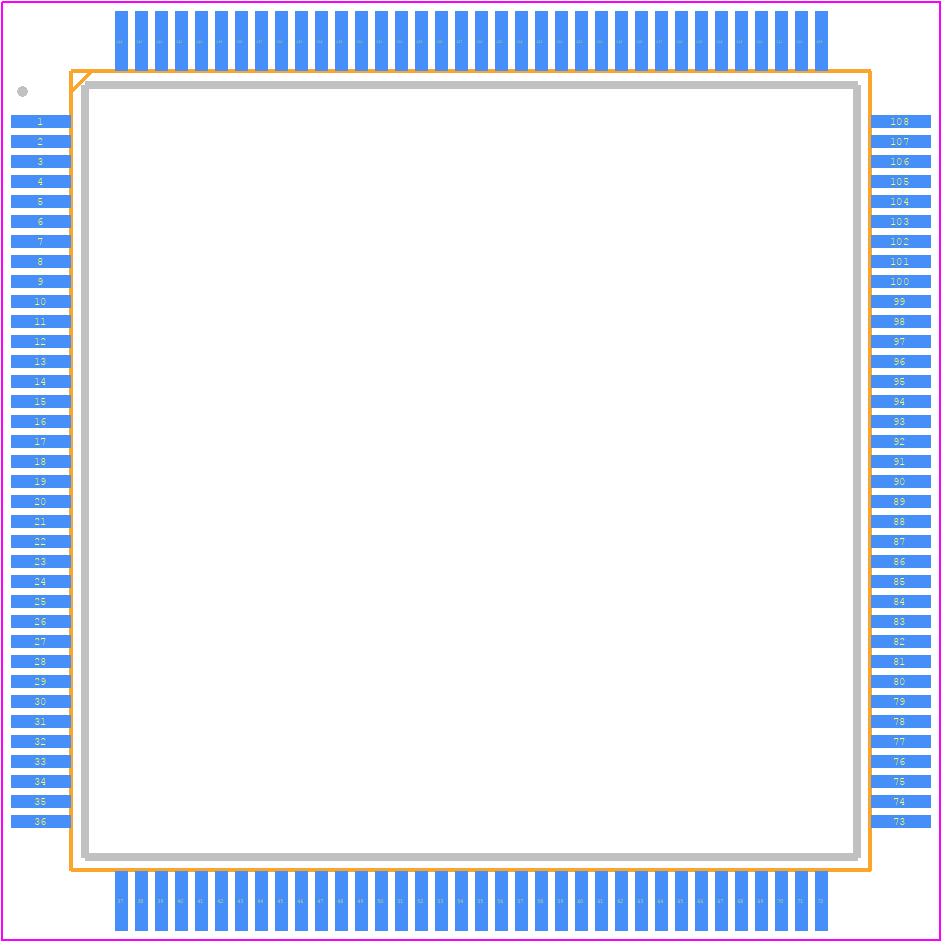

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32L162ZET6 by STMicroelectronics
Results Overview of STM32L162ZET6 by STMicroelectronics
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
STM32L162ZET6 Information
STM32L162ZET6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L162ZET6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
STM32L162ZET6-ND
|
DigiKey | IC MCU 32BIT 512KB FLASH 144LQFP Min Qty: 360 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$8.5931 | Buy Now |
|
DISTI #
STM32L162ZET6
|
Avnet Americas | MCU 32-Bit STM32 ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP Tray - Trays (Alt: STM32L162ZET6) RoHS: Compliant Min Qty: 360 Package Multiple: 360 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$8.0842 / $8.2526 | Buy Now |
|
DISTI #
511-STM32L162ZET6
|
Mouser Electronics | ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M3 MCU 512 Kbytes of Flash 32 MHz CPU, LCD, USB, 2xOp RoHS: Compliant | 356 |
|
$8.5900 / $13.1300 | Buy Now |
|
|
STMicroelectronics | Ultra-low-power Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 32 MHz CPU, LCD, USB, 2xOp-amp, AES COO: Philippines RoHS: Compliant Min Qty: 1 | 356 |
|
$8.4200 / $12.8900 | Buy Now |
|
DISTI #
STM32L162ZET6
|
Avnet Silica | MCU 32Bit STM32 ARM Cortex M3 RISC 512KB Flash 25V33V 144Pin LQFP Tray (Alt: STM32L162ZET6) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STM32L162ZET6
|
EBV Elektronik | MCU 32Bit STM32 ARM Cortex M3 RISC 512KB Flash 25V33V 144Pin LQFP Tray (Alt: STM32L162ZET6) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 14 Weeks, 0 Days | EBV - 240 |
|
Buy Now |
Part Details for STM32L162ZET6
STM32L162ZET6 CAD Models
STM32L162ZET6 Part Data Attributes
|
|
STM32L162ZET6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L162ZET6
STMicroelectronics
Ultra-low-power Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 32 MHz CPU, LCD, USB, 2xOp-amp, AES
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M3 | |
| Clock Frequency-Max | 32 MHz | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G144 | |
| Length | 20 mm | |
| Number of I/O Lines | 115 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 81920 | |
| ROM (words) | 524288 | |
| ROM Programmability | FLASH | |
| Speed | 32 MHz | |
| Supply Current-Max | 12.3 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.8 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
STM32L162ZET6 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L162ZET6 is 32 MHz.
-
The STM32L162ZET6 has 512 KB of flash memory.
-
Yes, the STM32L162ZET6 can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.
-
The power consumption of the STM32L162ZET6 in sleep mode is typically around 1.5 μA/MHz, but this can vary depending on the specific configuration and usage.
-
No, the STM32L162ZET6 does not have a built-in USB interface. However, it does have a USB device peripheral that can be used to implement a USB interface with an external transceiver.
