Microcontrollers and Processors / Microcontrollers / STM32L152C8U6A
Datasheets
STM32L152C8U6A by: STMicroelectronics

Ultra-low-power Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, LCD, USB

Part Details for STM32L152C8U6A by STMicroelectronics

Results Overview of STM32L152C8U6A by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare Telecommunications

STM32L152C8U6A Information

STM32L152C8U6A by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L152C8U6A

Part # Distributor Description Stock Price Buy
DISTI # 42Y1086
Newark 32 Bit Microcontroller, Ultra Low Power, Arm Cortex-M3, 32 Mhz, 64 Kb, 32 Kb, 48, Ufqfn Rohs Compliant: Yes |Stmicroelectronics STM32L152C8U6A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2949
  • 1 $6.1700
  • 10 $5.1600
  • 25 $4.9300
  • 50 $4.7800
  • 100 $4.6000
  • 250 $4.4900
$4.4900 / $6.1700 Buy Now
DISTI # 497-18956-ND
DigiKey IC MCU 32BIT 64KB FLASH 48UFQFPN Min Qty: 1 Lead time: 13 Weeks Container: Tray 1530
In Stock
  • 1 $4.6800
  • 10 $3.5740
  • 25 $3.2988
  • 100 $2.9960
  • 260 $2.8463
  • 520 $2.8453
$2.8453 / $4.6800 Buy Now
DISTI # STM32L152C8U6A
Avnet Americas MCU 32-Bit STM32 ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin UFQFPN EP Tray - Trays (Alt: STM32L152C8U6A) RoHS: Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,560 $2.8455
  • 3,120 $2.7761
  • 6,240 $2.7548
  • 9,360 $2.7406
  • 12,480 $2.7264
$2.7264 / $2.8455 Buy Now
DISTI # 511-STM32L152C8U6A
Mouser Electronics ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M3 MCU 64 Kbytes of Flash , 32 MHz CPU, LCD, USB RoHS: Compliant 1560
  • 1 $4.5300
  • 10 $3.4700
  • 25 $3.2000
  • 100 $2.9600
  • 250 $2.8500
  • 2,500 $2.8400
$2.8400 / $4.5300 Buy Now
STMicroelectronics Ultra-low-power Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, LCD, USB RoHS: Compliant Min Qty: 1 1560
  • 1 $4.5100
  • 10 $3.4500
  • 25 $3.1900
  • 100 $2.9200
  • 250 $2.7900
  • 500 $2.7900
$2.7900 / $4.5100 Buy Now
DISTI # STM32L152C8U6A
Avnet Silica MCU 32Bit STM32 ARM Cortex M3 RISC 64KB Flash 25V33V 48Pin UFQFPN EP Tray (Alt: STM32L152C8U6A) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days Silica - 260
Buy Now
DISTI # STM32L152C8U6A
EBV Elektronik MCU 32Bit STM32 ARM Cortex M3 RISC 64KB Flash 25V33V 48Pin UFQFPN EP Tray (Alt: STM32L152C8U6A) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days EBV - 520
Buy Now
LCSC ARM-M3 32MHz UFQFPN-48(7x7) Microcontrollers (MCU/MPU/SOC) ROHS 3
  • 1 $8.8621
  • 10 $7.6823
  • 30 $6.6564
  • 100 $6.0529
$6.0529 / $8.8621 Buy Now

Part Details for STM32L152C8U6A

STM32L152C8U6A CAD Models

  • Part Symbol

    Part Symbol

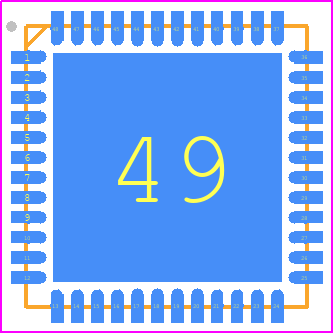

  • Footprint

    footprint

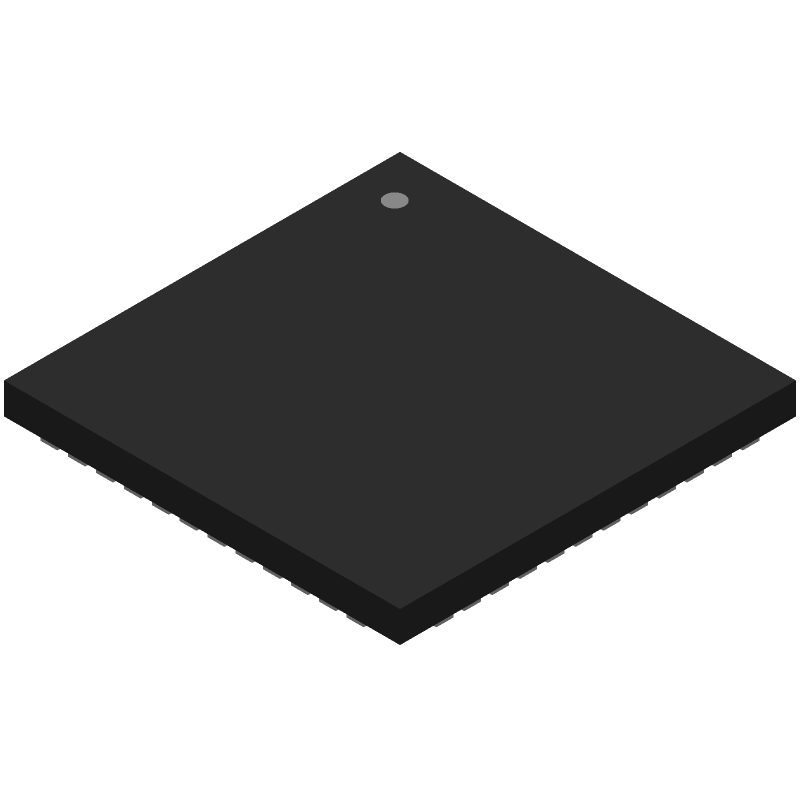

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L152C8U6A Part Data Attributes

Parametric Data
STM32L152C8U6A STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L152C8U6A STMicroelectronics Ultra-low-power Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, LCD, USB
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description UFQFPN-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M3
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQCC-N48
JESD-609 Code e3
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 7
Number of External Interrupts 16
Number of I/O Lines 37
Number of Serial I/Os 3
Number of Terminals 48
Number of Timers 6
On Chip Data RAM Width 32
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC48,.27SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
RAM (bytes) 32768
RAM (words) 8192
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 0.65 mm
Speed 32 MHz
Supply Current-Max 9.6 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time-Min SECONDS
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32L152C8U6A

This table gives cross-reference parts and alternative options found for STM32L152C8U6A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L152C8U6A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32L152C8U6AD STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U6AD
STM32L152C8U6 STMicroelectronics Check for Price Ultra-low-power Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, LCD, USB STM32L152C8U6A vs STM32L152C8U6
STM32L152C8U7ATR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U7ATR
STM32L152C8U6D STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, QCC48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, UFQFPN-48 STM32L152C8U6A vs STM32L152C8U6D
STM32L152C8U6TR STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, QCC48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, UFQFPN-48 STM32L152C8U6A vs STM32L152C8U6TR
STM32L152C8U6TTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U6TTR
STM32L152C8U7A STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U7A
STM32L152C8U7AD STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U7AD
STM32L152C8U6T STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U6T
Part Number Manufacturer Composite Price Description Compare
STM8L052C6T6 STMicroelectronics $1.1626 Ultra-low-power 8-bit MCU with 32 Kbytes Flash, 16 MHz CPU, integrated EEPROM STM32L152C8U6A vs STM8L052C6T6
STM32L152C8T6ADTR STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48 STM32L152C8U6A vs STM32L152C8T6ADTR
STM32L152CBU6ATR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152CBU6ATR
STM32L152C8T6T STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8T6T
STM32L152CBT7AD STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48 STM32L152C8U6A vs STM32L152CBT7AD
STM32L152C8U6ADTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152C8U6ADTR
STM32L152CBU6DTR STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, QCC48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, UFQFPN-48 STM32L152C8U6A vs STM32L152CBU6DTR
STM32L152C8T7AD STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48 STM32L152C8U6A vs STM32L152C8T7AD
STM32L152CBT6AD STMicroelectronics Check for Price 32-BIT, FLASH, 32MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-48 STM32L152C8U6A vs STM32L152CBT6AD
STM32L152CBT6T STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L152C8U6A vs STM32L152CBT6T

STM32L152C8U6A Related Parts

STM32L152C8U6A Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L152C8U6A is 32 MHz.

  • The STM32L152C8U6A has 64 KB of flash memory.

  • Yes, the STM32L152C8U6A can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.

  • No, the STM32L152C8U6A does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.

  • The STM32L152C8U6A has three UARTs (USART1, USART2, and USART3).
