Microcontrollers and Processors / Microcontrollers / STM32L151CCU6TR
Datasheets
STM32L151CCU6TR by: STMicroelectronics

Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp

Part Details for STM32L151CCU6TR by STMicroelectronics

Results Overview of STM32L151CCU6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STM32L151CCU6TR Information

STM32L151CCU6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L151CCU6TR

Part # Distributor Description Stock Price Buy
DISTI # 54AH7052
Newark Mcu, 32 Bit, 256Kb, 32Mhz, Ufqfpn-48, Product Range:Stm32 Family Stm32L1 Series Microcontrollers, Device Core:Arm Cortex-M3, Data Bus Width:32 Bit, Operating Frequency Max:32Mhz, Program Memory Size:256Kb, No. Of Pins:48Pins Rohs Compliant: Yes |Stmicroelectronics STM32L151CCU6TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 4635
  • 1 $5.5200
  • 10 $5.0600
  • 25 $5.0600
  • 50 $5.0600
  • 100 $5.0600
  • 250 $5.0600
  • 500 $5.0600
  • 1,000 $4.6700
$4.6700 / $5.5200 Buy Now
DISTI # 497-19017-1-ND
DigiKey IC MCU 32BIT 256KB FLSH 48UFQFPN Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3667
In Stock
  • 1 $6.9400
  • 10 $5.3460
  • 25 $4.9484
  • 100 $4.5110
  • 250 $4.3025
  • 500 $4.1768
  • 1,000 $4.0733
  • 2,500 $3.9641
$3.9641 / $6.9400 Buy Now
DISTI # STM32L151CCU6TR
Avnet Americas ARM MCU, STM32 Family STM32L1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 32 MHz, 256 KB - Tape and Reel (Alt: STM32L151CCU6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 2,500 $3.6812
  • 5,000 $3.5915
  • 10,000 $3.5482
  • 15,000 $3.5059
  • 20,000 $3.4647
$3.4647 / $3.6812 Buy Now
DISTI # 511-STM32L151CCU6TR
Mouser Electronics ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M3 MCU 256 Kbytes of Flash 32 MHz CPU, USB, 2xOp-amp RoHS: Compliant 13568
  • 1 $6.9400
  • 10 $5.3500
  • 25 $4.9500
  • 50 $4.9400
  • 100 $4.5100
  • 250 $4.3100
  • 500 $4.1800
  • 1,000 $4.0100
  • 2,500 $3.7200
$3.7200 / $6.9400 Buy Now
DISTI # V36:1790_06563974
Arrow Electronics MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 48-Pin UFQFPN EP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks Date Code: 2352 Americas - 5000
  • 2,500 $3.4700
$3.4700 Buy Now
STMicroelectronics Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp COO: France RoHS: Compliant Min Qty: 1 13568
  • 1 $6.8000
  • 10 $5.2400
  • 25 $4.8500
  • 50 $4.8400
  • 100 $4.4200
  • 250 $4.2200
  • 500 $4.1000
$4.1000 / $6.8000 Buy Now
DISTI # 89487195
Verical MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 48-Pin UFQFPN EP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2516 Americas - 7500
  • 2,500 $6.7861
$6.7861 Buy Now
DISTI # 86898439
Verical MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 48-Pin UFQFPN EP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2444 Americas - 2500
  • 2,500 $3.4700
$3.4700 Buy Now
DISTI # 86929179
Verical MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 48-Pin UFQFPN EP T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 Americas - 681
  • 10 $8.4275
  • 25 $8.0384
  • 50 $7.7149
  • 100 $7.4429
  • 250 $7.2120
  • 500 $7.0144
$7.0144 / $8.4275 Buy Now
ComSIT USA RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 32MHz, CMOS ECCN: 3A991.A.2 RoHS: Compliant Stock DE - 1090
Stock ES - 0
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # STM32L151CCU6TR
IBS Electronics ULTRA-LOW-POWER ARM CORTEX-M3 MCU WITH 256 KBYTES FLASH 32 MHZ CPU USB 2XOP-AMP Min Qty: 2500 Package Multiple: 1 0
  • 2,500 $4.8360
$4.8360 Buy Now
DISTI # STM32L151CCU6TR
Avnet Silica ARM MCU STM32 Family STM32L1 Series Microcontrollers ARM CortexM3 32 bit 32 MHz 256 KB (Alt: STM32L151CCU6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
Chip Stock   35775
RFQ
DISTI # STM32L151CCU6TR
EBV Elektronik ARM MCU STM32 Family STM32L1 Series Microcontrollers ARM CortexM3 32 bit 32 MHz 256 KB (Alt: STM32L151CCU6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days EBV - 35000
Buy Now
LCSC ARM-M3 32MHz UFQFPN-48(7x7) Microcontrollers (MCU/MPU/SOC) ROHS 17
  • 1 $13.5888
  • 10 $11.9368
  • 30 $10.9305
  • 100 $10.0856
$10.0856 / $13.5888 Buy Now
Win Source Electronics IC MCU 32BIT 256KB FLSH 48UFQFPN / ARM® Cortex®-M3 series Microcontroller IC 32-Bit Single-Core 32MHz 256KB (256K x 8) FLASH 48-UFQFPN (7x7) 9370
  • 18 $3.2324
  • 39 $3.0239
  • 60 $2.9196
  • 86 $2.7112
  • 111 $2.6068
  • 139 $2.5026
$2.5026 / $3.2324 Buy Now

Part Details for STM32L151CCU6TR

STM32L151CCU6TR CAD Models

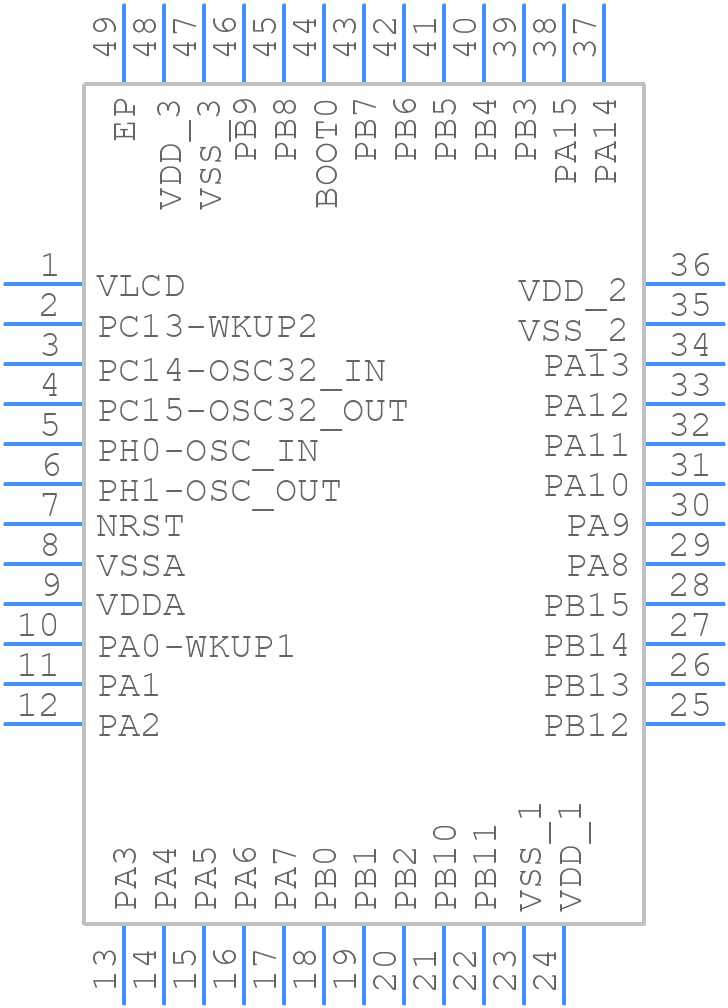

  • Part Symbol

    Part Symbol

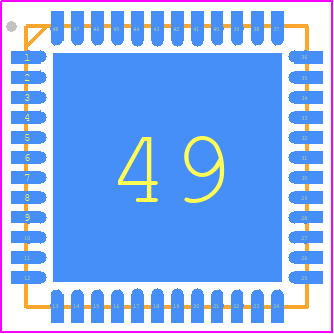

  • Footprint

    footprint

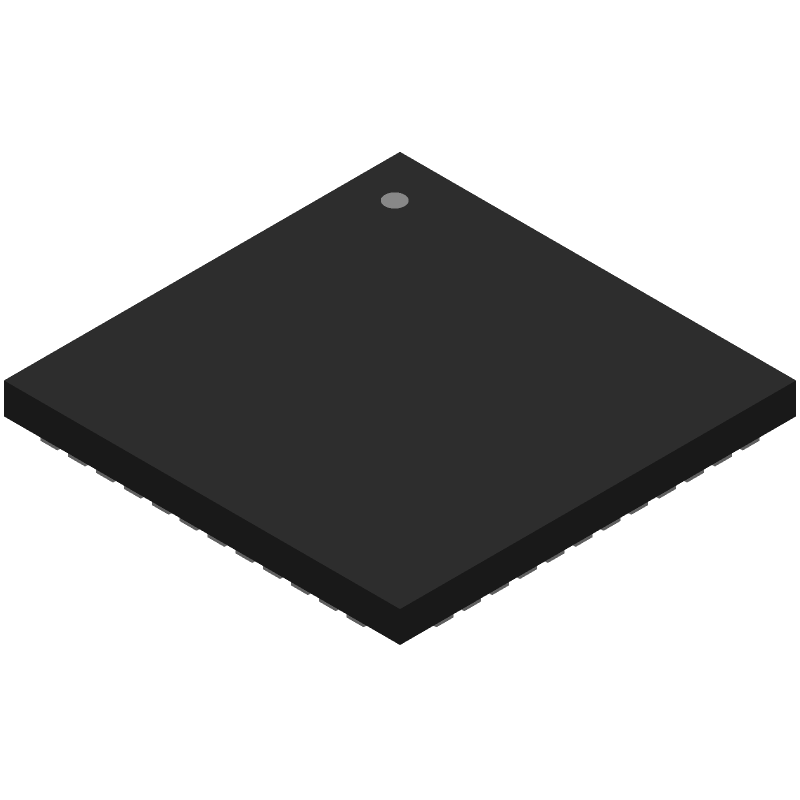

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L151CCU6TR Part Data Attributes

Parametric Data
STM32L151CCU6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L151CCU6TR STMicroelectronics Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description UFQFPN-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 24 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-XQCC-N48
Length 7 mm
Number of I/O Lines 37
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC48,.27SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
RAM (bytes) 32768
ROM (words) 262144
ROM Programmability FLASH
Seated Height-Max 0.65 mm
Speed 32 MHz
Supply Current-Max 12.3 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32L151CCU6TR

This table gives cross-reference parts and alternative options found for STM32L151CCU6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L151CCU6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32L151CCU7 STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,LLCC,48PIN,PLASTIC STM32L151CCU6TR vs STM32L151CCU7
STM32L151CCU7TR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,LLCC,48PIN,PLASTIC STM32L151CCU6TR vs STM32L151CCU7TR
Part Number Manufacturer Composite Price Description Compare
STM32L100C6U6A STMicroelectronics $3.8392 Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB STM32L151CCU6TR vs STM32L100C6U6A
STM32L151CCU6 STMicroelectronics $4.8856 Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L151CCU6TR vs STM32L151CCU6
STM32L151CCT6 STMicroelectronics $6.0984 Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L151CCU6TR vs STM32L151CCT6
STM32L152CCT6DTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L151CCU6TR vs STM32L152CCT6DTR
STM32L151CCT7 STMicroelectronics Check for Price Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L151CCU6TR vs STM32L151CCT7
STM32L100C6U6 STMicroelectronics Check for Price Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB STM32L151CCU6TR vs STM32L100C6U6
STM32L152CCU6D STMicroelectronics Check for Price Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L151CCU6TR vs STM32L152CCU6D
STM32L151CCU6DTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L151CCU6TR vs STM32L151CCU6DTR
STM32L152CCT6TR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L151CCU6TR vs STM32L152CCT6TR
STM32L151CCT7TR STMicroelectronics Check for Price Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L151CCU6TR vs STM32L151CCT7TR

STM32L151CCU6TR Related Parts

STM32L151CCU6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L151CCU6TR is 32 MHz.

  • The STM32L151CCU6TR has 256 KB of flash memory.

  • The power consumption of the STM32L151CCU6TR in low-power mode (Stop mode) is approximately 350 nA.

  • No, the STM32L151CCU6TR does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.

  • Yes, the STM32L151CCU6TR can operate at a voltage range of 1.8V to 3.6V.
