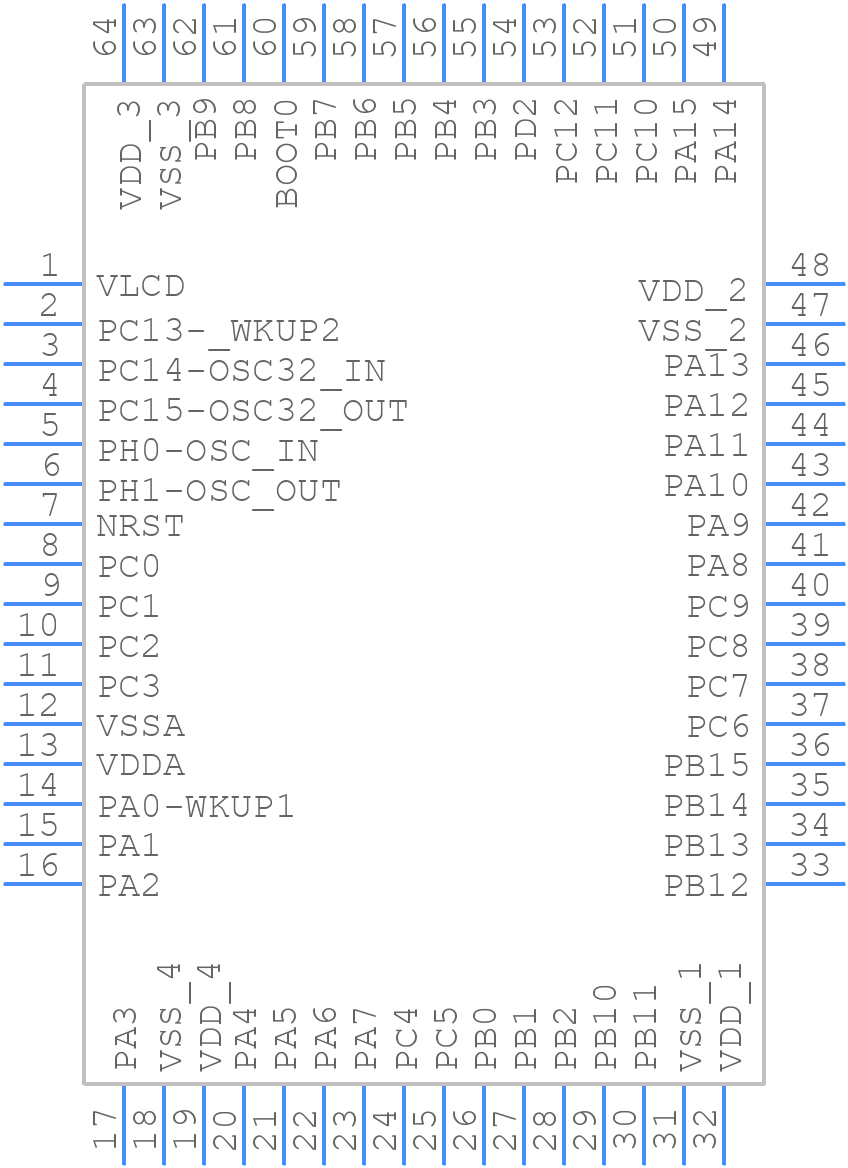

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32L100R8T6 by STMicroelectronics
Results Overview of STM32L100R8T6 by STMicroelectronics
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
STM32L100R8T6 Information
STM32L100R8T6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32L100R8T6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-17510-ND
|
DigiKey | IC MCU 32BIT 64KB FLASH 64LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray | Limited Supply - Call |
|
$3.6834 / $6.4900 | Buy Now |
|
DISTI #
STM32L100R8T6
|
Avnet Americas | MCU 32-bit STM32 ARM Cortex M3 RISC 64KB Flash 2.5/3.3V 64-Pin LQFP Tray - Trays (Alt: STM32L100R8T6) RoHS: Compliant Min Qty: 960 Package Multiple: 960 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$3.4080 / $3.4790 | Buy Now |
|
DISTI #
511-STM32L100R8T6
|
Mouser Electronics | ARM Microcontrollers - MCU Value Line M3 ARM 32 Kbytes 32 MHz RoHS: Compliant | 960 |
|
$3.5500 / $6.5000 | Buy Now |
|
|
STMicroelectronics | Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, LCD, USB RoHS: Compliant Min Qty: 1 | 960 |
|
$3.7800 / $6.3700 | Buy Now |
|
DISTI #
86930014
|
Verical | MCU 32-bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2442 | Americas - 2416 |
|
$3.5955 / $5.9282 | Buy Now |
|
DISTI #
STM32L100R8T6
|
Avnet Silica | MCU 32bit STM32 ARM Cortex M3 RISC 64KB Flash 2533V 64Pin LQFP Tray (Alt: STM32L100R8T6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days | Silica - 1120 |
|
Buy Now | |
|
DISTI #
STM32L100R8T6
|
EBV Elektronik | MCU 32bit STM32 ARM Cortex M3 RISC 64KB Flash 2533V 64Pin LQFP Tray (Alt: STM32L100R8T6) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018, Lead time:3-5days | 1220 Stock,1077 Available |
|
$3.9200 / $4.9800 | Buy Now |
Part Details for STM32L100R8T6
STM32L100R8T6 CAD Models
STM32L100R8T6 Part Data Attributes
|
|
STM32L100R8T6
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32L100R8T6
STMicroelectronics
Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 64 Kbytes of Flash memory, 32 MHz CPU, LCD, USB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | LQFP-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M3 | |
| Clock Frequency-Max | 24 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| Length | 10 mm | |
| Number of I/O Lines | 51 | |
| Number of Terminals | 64 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 8192 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 32 MHz | |
| Supply Current-Max | 11 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
STM32L100R8T6 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32L100R8T6 is 32 MHz.
-
The STM32L100R8T6 has 64 KB of flash memory.
-
Yes, the STM32L100R8T6 can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.
-
No, the STM32L100R8T6 does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.
-
Yes, the STM32L100R8T6 is rated for operation in the industrial temperature range of -40°C to 85°C.
