Microcontrollers and Processors / Microcontrollers / STM32L100C6U6
Datasheets
STM32L100C6U6 by: STMicroelectronics

Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB

Part Details for STM32L100C6U6 by STMicroelectronics

Results Overview of STM32L100C6U6 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

STM32L100C6U6 Information

STM32L100C6U6 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32L100C6U6

Part # Distributor Description Stock Price Buy
DISTI # 497-19671-ND
DigiKey IC MCU 32BIT 32KB FLASH 48UFQFPN Min Qty: 1 Lead time: 13 Weeks Container: Tray 1534
In Stock
  • 1 $5.1500
  • 10 $3.9480
  • 25 $3.6480
  • 100 $3.3184
  • 260 $3.1658
$3.1658 / $5.1500 Buy Now
DISTI # STM32L100C6U6
Avnet Americas MCU 32-bit STM32 ARM Cortex M3 RISC 32KB Flash 2.5/3.3V 48-Pin UFQFPN Tray - Trays (Alt: STM32L100C6U6) RoHS: Compliant Min Qty: 1560 Package Multiple: 1560 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,560 $3.1658
  • 3,120 $3.0885
  • 6,240 $3.0708
  • 9,360 $3.0550
  • 12,480 $3.0391
$3.0391 / $3.1658 Buy Now
DISTI # 511-STM32L100C6U6
Mouser Electronics ARM Microcontrollers - MCU Value Line M3 ARM 32 Kbytes 32 MHz RoHS: Compliant 0
Order Now
STMicroelectronics Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB COO: China RoHS: Compliant Min Qty: 1 0
  • 1 $4.7400
  • 10 $3.6500
  • 25 $3.1100
  • 100 $3.1100
  • 250 $3.1100
  • 500 $3.1100
$3.1100 / $4.7400 Buy Now
Future Electronics UQFN48, 32K FLASH, 4K RAM, AD 12 RoHS: Compliant pbFree: Yes Min Qty: 1560 Package Multiple: 1560 Lead time: 13 Weeks 0
  • 1,560 $2.9800
$2.9800 Buy Now
DISTI # STM32L100C6U6
Avnet Silica MCU 32bit STM32 ARM Cortex M3 RISC 32KB Flash 2533V 48Pin UFQFPN Tray (Alt: STM32L100C6U6) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32L100C6U6
EBV Elektronik MCU 32bit STM32 ARM Cortex M3 RISC 32KB Flash 2533V 48Pin UFQFPN Tray (Alt: STM32L100C6U6) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STM32L100C6U6

STM32L100C6U6 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

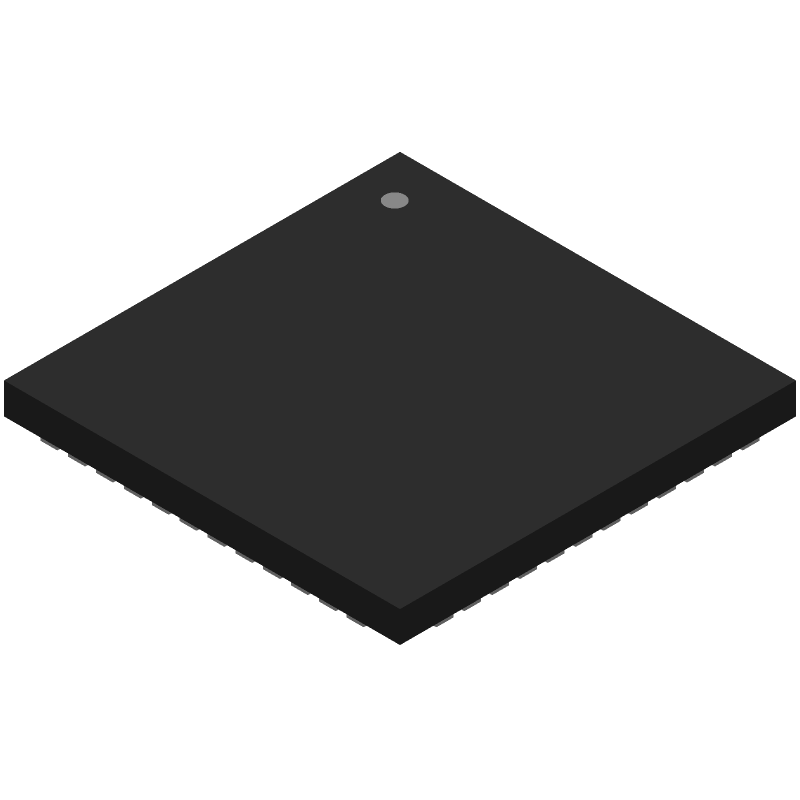

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32L100C6U6 Part Data Attributes

Parametric Data
STM32L100C6U6 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32L100C6U6 STMicroelectronics Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer STMICROELECTRONICS
Package Description UFQFPN-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 24 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-XQCC-N48
JESD-609 Code e3
Length 7 mm
Moisture Sensitivity Level 3
Number of I/O Lines 37
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC48,.27SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 4096
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 0.65 mm
Speed 32 MHz
Supply Current-Max 11 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32L100C6U6

This table gives cross-reference parts and alternative options found for STM32L100C6U6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32L100C6U6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32L100C6U6A STMicroelectronics $3.8392 Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB STM32L100C6U6 vs STM32L100C6U6A
STM32L152CCU6 STMicroelectronics $5.6991 Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L100C6U6 vs STM32L152CCU6
STM32L151CCT6 STMicroelectronics $6.0984 Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L100C6U6 vs STM32L151CCT6
STM32L151CCT6TR STMicroelectronics $7.2459 Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L100C6U6 vs STM32L151CCT6TR
STM32L100C6U6TR STMicroelectronics Check for Price Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB STM32L100C6U6 vs STM32L100C6U6TR
STM32L151CCU6DTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L100C6U6 vs STM32L151CCU6DTR
STM32L151CCT7 STMicroelectronics Check for Price Ultra-low-power Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 32 MHz CPU, USB, 2xOp-amp STM32L100C6U6 vs STM32L151CCT7
STM32L151CCT6DTR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L100C6U6 vs STM32L151CCT6DTR
STM32L100C6U6ATR STMicroelectronics Check for Price Ultra-low-power 32-bit Value Line Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 32 MHz CPU, LCD, USB STM32L100C6U6 vs STM32L100C6U6ATR
STM32L151CCU6D STMicroelectronics Check for Price RISC MICROCONTROLLER STM32L100C6U6 vs STM32L151CCU6D

STM32L100C6U6 Related Parts

STM32L100C6U6 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32L100C6U6 is 32 MHz.

  • The STM32L100C6U6 has 64 KB of flash memory.

  • Yes, the STM32L100C6U6 can operate at 1.8V, but it is not recommended as it may affect the device's performance and reliability.

  • The power consumption of the STM32L100C6U6 in sleep mode is typically around 1.5 μA/MHz, depending on the specific sleep mode and configuration.

  • No, the STM32L100C6U6 does not have a built-in USB interface. However, it can be connected to a USB interface using an external USB transceiver.
