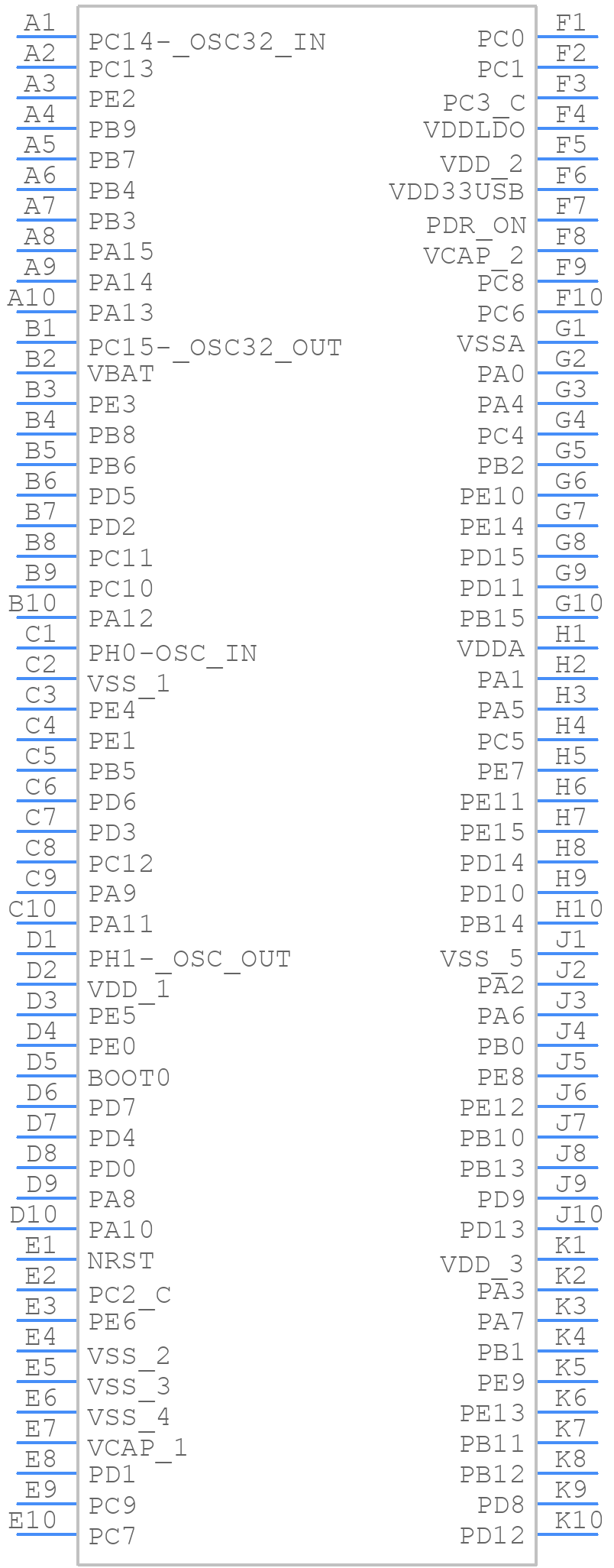

Part Symbol
-
Footprint
-

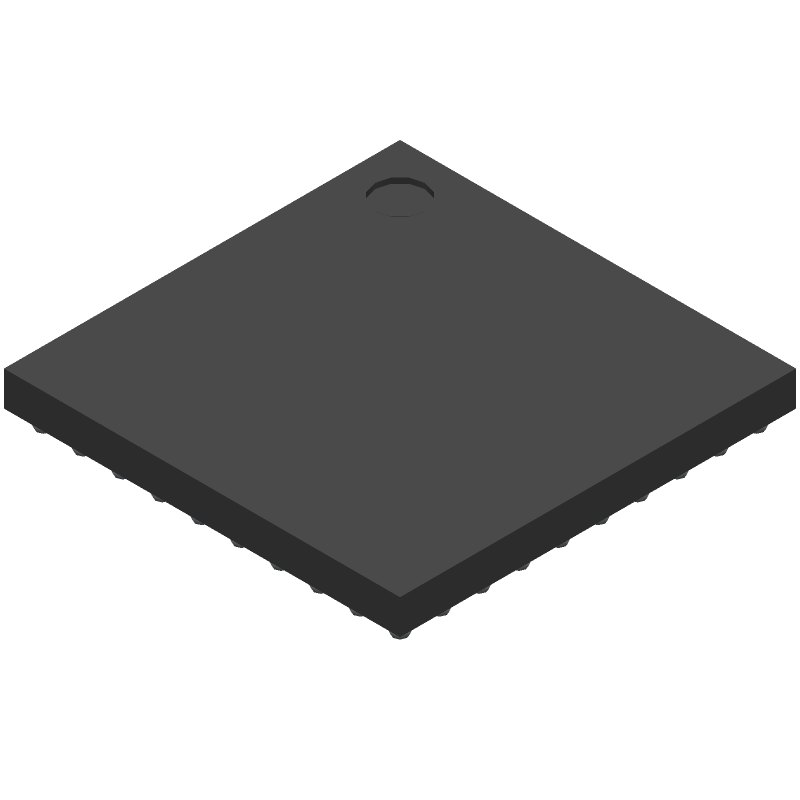

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32H743VIH6TR by STMicroelectronics
Results Overview of STM32H743VIH6TR by STMicroelectronics
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
STM32H743VIH6TR Information
STM32H743VIH6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32H743VIH6TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-STM32H743VIH6TR-ND
|
DigiKey | IC MCU 32BIT 2MB FLASH 100TFBGA Min Qty: 2500 Lead time: 15 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$9.9054 | Buy Now |
|
DISTI #
STM32H743VIH6TR
|
Avnet Americas | Microcontroller 32-Bit ARM Cortex-M7 RISC 2M-Bytes Flash 3.3V 100-Pin TFBGA T/R - Tape and Reel (Alt: STM32H743VIH6TR) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$8.7986 / $9.3485 | Buy Now |
|
DISTI #
511-STM32H743VIH6TR
|
Mouser Electronics | ARM Microcontrollers - MCU High-performance & DSP DP-FPU, Arm Cortex-M7 MCU 2MBytes of Flash 1MB RAM, 480 M RoHS: Compliant | 0 |
|
$9.7100 | Order Now |
|
|
STMicroelectronics | High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 2MBytes of Flash memory, 1MB RAM, 480 MHz CPU, Art Accelerator, L1 cache, external memory interface, large set of peripherals RoHS: Compliant Min Qty: 1 | 0 |
|
$10.7900 / $15.5300 | Buy Now |
|
DISTI #
STM32H743VIH6TR
|
Avnet Silica | Microcontroller 32Bit ARM CortexM7 RISC 2MBytes Flash 33V 100Pin TFBGA TR (Alt: STM32H743VIH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
DISTI #
STM32H743VIH6TR
|
EBV Elektronik | Microcontroller 32Bit ARM CortexM7 RISC 2MBytes Flash 33V 100Pin TFBGA TR (Alt: STM32H743VIH6TR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 2227 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 2MB FLASH 100TFBGA | 3760 |
|
$7.4032 / $11.1048 | Buy Now |
Part Details for STM32H743VIH6TR
STM32H743VIH6TR CAD Models
STM32H743VIH6TR Part Data Attributes
|
|
STM32H743VIH6TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32H743VIH6TR
STMicroelectronics
High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 2MBytes of Flash memory, 1MB RAM, 480 MHz CPU, Art Accelerator, L1 cache, external memory interface, large set of peripherals
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | TFBGA-100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 15 Weeks | |
| Date Of Intro | 2017-09-28 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | 8 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M7 | |
| Clock Frequency-Max | 48 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| Format | FLOATING-POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PBGA-B100 | |
| JESD-609 Code | e1 | |
| Length | 8 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 4 | |
| Number of I/O Lines | 82 | |
| Number of Serial I/Os | 11 | |
| Number of Terminals | 100 | |
| Number of Timers | 21 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA100,10X10,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 1085440 | |
| ROM (words) | 2097152 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.1 mm | |
| Speed | 480 MHz | |
| Supply Current-Max | 100 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Width | 8 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
STM32H743VIH6TR Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32H743VIH6TR is 480 MHz.
-
The STM32H743VIH6TR has 2MB of flash memory.
-
The maximum operating temperature range of the STM32H743VIH6TR is -40°C to 125°C.
-
Yes, the STM32H743VIH6TR has a built-in USB OTG FS interface.
-
The power consumption of the STM32H743VIH6TR in low-power mode (Stop mode) is approximately 1.5mA/MHz.
