Microcontrollers and Processors / Microcontrollers / STM32F411CCY6TR
Datasheets
STM32F411CCY6TR by: STMicroelectronics

High-performance access line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 100 MHz CPU, ART Accelerator

Part Details for STM32F411CCY6TR by STMicroelectronics

Results Overview of STM32F411CCY6TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

STM32F411CCY6TR Information

STM32F411CCY6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F411CCY6TR

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32F411CCY6CT-ND
DigiKey IC MCU 32BIT 256KB FLASH 49WLCSP Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) Temporarily Out of Stock
  • 1 $5.6500
  • 10 $4.3210
  • 25 $3.9896
  • 100 $3.6251
  • 250 $3.4513
  • 500 $3.3466
  • 1,000 $3.2603
  • 2,500 $3.1693
  • 5,000 $3.1145
$3.1145 / $5.6500 Buy Now
DISTI # STM32F411CCY6TR
Avnet Americas MCU 32-Bit STM32F ARM Cortex M4 RISC 256KB Flash 3.3V 49-Pin WLCSP T/R - Tape and Reel (Alt: STM32F411CCY6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Container: Reel 0
  • 5,000 $2.9488
  • 10,000 $2.9338
  • 20,000 $2.9187
  • 30,000 $2.9037
  • 40,000 $2.8886
$2.8886 / $2.9488 Buy Now
DISTI # 511-STM32F411CCY6TR
Mouser Electronics ARM Microcontrollers - MCU High-performance access line, Arm Cortex-M4 core DSP & FPU, 256 Kbytes of Flash RoHS: Compliant 0
  • 5,000 $3.1100
$3.1100 Order Now
DISTI # V72:2272_06563779
Arrow Electronics MCU 32-bit ARM Cortex M4 RISC 256KB Flash 3.3V 49-Pin WLCSP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2237 Container: Cut Strips Americas - 3049
  • 1 $3.3670
  • 10 $3.3160
  • 25 $3.2650
  • 100 $3.2130
  • 250 $3.1620
  • 500 $3.1110
  • 1,000 $3.0600
  • 3,000 $3.0090
$3.0090 / $3.3670 Buy Now
STMicroelectronics High-performance access line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 100 MHz CPU, ART Accelerator RoHS: Compliant Min Qty: 1 0
  • 10 $4.5800
  • 100 $3.9700
  • 250 $3.7600
  • 500 $3.3800
$3.3800 / $4.5800 Buy Now
DISTI # 88924199
Verical MCU 32-bit ARM Cortex M4 RISC 256KB Flash 3.3V 49-Pin WLCSP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 3049
  • 2 $3.3670
$3.3670 Buy Now
DISTI # STM32F411CCY6TR
Avnet Silica MCU 32Bit STM32F ARM Cortex M4 RISC 256KB Flash 33V 49Pin WLCSP TR (Alt: STM32F411CCY6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F411CCY6TR
EBV Elektronik MCU 32Bit STM32F ARM Cortex M4 RISC 256KB Flash 33V 49Pin WLCSP TR (Alt: STM32F411CCY6TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 16 Weeks, 0 Days EBV - 5000
Buy Now
Vyrian Peripheral ICs 3071
RFQ

Part Details for STM32F411CCY6TR

STM32F411CCY6TR CAD Models

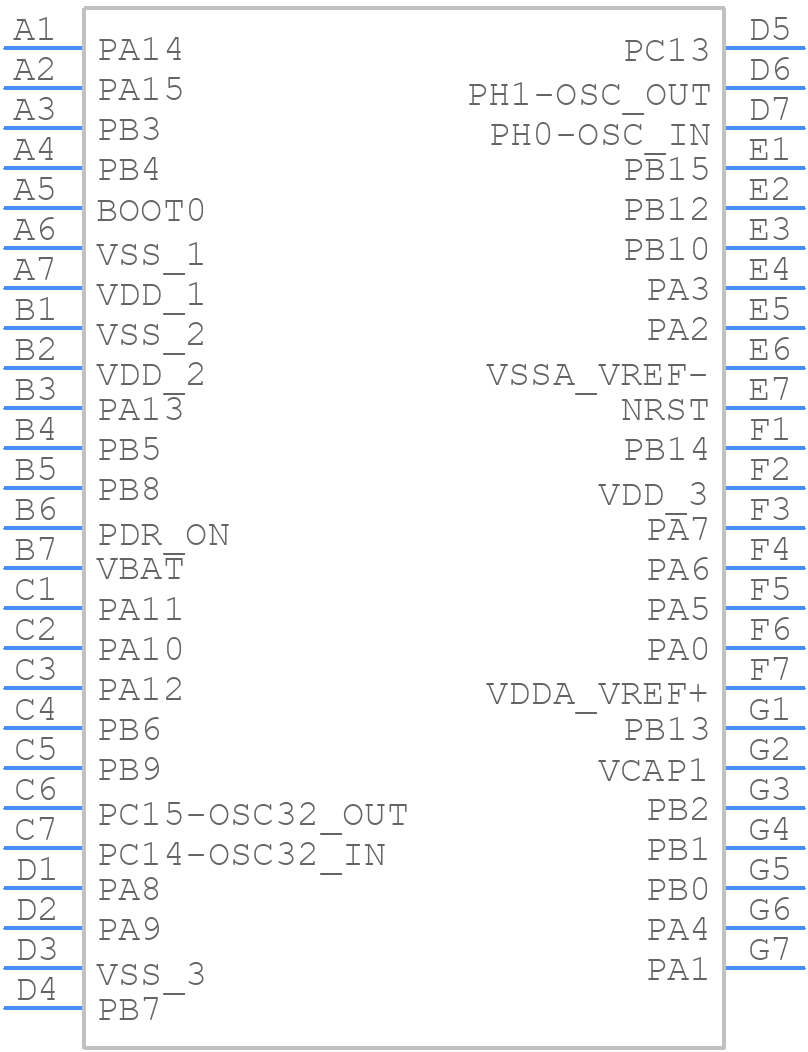

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

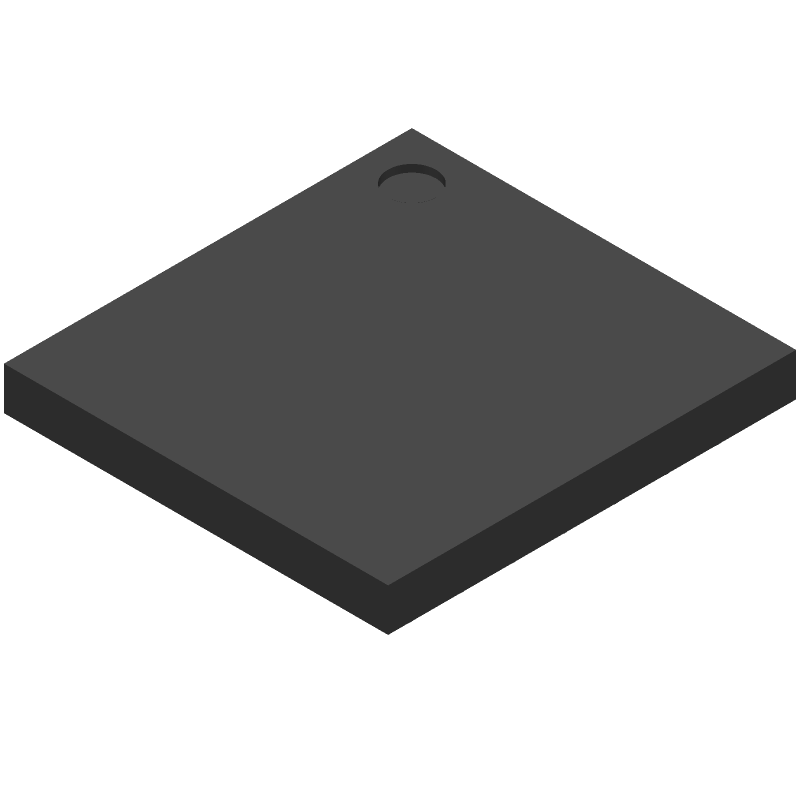

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F411CCY6TR Part Data Attributes

Parametric Data
STM32F411CCY6TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F411CCY6TR STMicroelectronics High-performance access line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 100 MHz CPU, ART Accelerator
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M4
Clock Frequency-Max 26 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache NO
JESD-30 Code R-PBGA-B49
Length 3.185 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 16
Number of I/O Lines 36
Number of Terminals 49
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA49,7X7,16
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
RAM (bytes) 131072
RAM (words) 65536
ROM (words) 262144
ROM Programmability FLASH
Seated Height-Max 0.585 mm
Speed 100 MHz
Supply Current-Max 34.5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form BALL
Terminal Pitch 0.4 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 2.999 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F411CCY6TR

This table gives cross-reference parts and alternative options found for STM32F411CCY6TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F411CCY6TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F411CCY7 STMicroelectronics Check for Price RISC Microcontroller STM32F411CCY6TR vs STM32F411CCY7
STM32F411CCY7TR STMicroelectronics Check for Price RISC Microcontroller STM32F411CCY6TR vs STM32F411CCY7TR

STM32F411CCY6TR Related Parts

STM32F411CCY6TR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F411CCY6TR is 100 MHz.

  • The STM32F411CCY6TR has 512 KB of flash memory.

  • The STM32F411CCY6TR can operate at 1.7V to 3.6V, but not 5V. It is not 5V tolerant.

  • Yes, the STM32F411CCY6TR has a built-in USB 2.0 full-speed interface.

  • The STM32F411CCY6TR has 5 UARTs.
