Microcontrollers and Processors / Microcontrollers / STM32F303ZDT7
Datasheets
STM32F303ZDT7 by: STMicroelectronics

Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 384 Kbytes of Flash memory, 72 MHz CPU, MPU, CCM, 12-bit ADC 5 MSPS, PGA, comparators

Part Details for STM32F303ZDT7 by STMicroelectronics

Results Overview of STM32F303ZDT7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Smart Cities Renewable Energy Robotics and Drones

STM32F303ZDT7 Information

STM32F303ZDT7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F303ZDT7

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32F303ZDT7-ND
DigiKey IC MCU 32BIT 384KB FLASH 144LQFP Min Qty: 360 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 360 $8.0919
$8.0919 Buy Now
DISTI # STM32F303ZDT7
Avnet Americas - Trays (Alt: STM32F303ZDT7) RoHS: Not Compliant Min Qty: 360 Package Multiple: 360 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 360 $7.9301
  • 720 $7.8896
  • 1,440 $7.8492
  • 2,160 $7.8087
  • 2,880 $7.7683
$7.7683 / $7.9301 Buy Now
DISTI # 511-STM32F303ZDT7
Mouser Electronics ARM Microcontrollers - MCU Mainstream Mixed signals MCUs Arm Cortex-M4 core DSP & FPU, 384 Kbytes of Flash RoHS: Compliant 0
  • 360 $8.0900
$8.0900 Order Now
STMicroelectronics Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 384 Kbytes of Flash memory, 72 MHz CPU, MPU, CCM, 12-bit ADC 5 MSPS, PGA, comparators COO: Taiwan RoHS: Compliant Min Qty: 1 0
  • 360 $8.2400
$8.2400 Buy Now
DISTI # STM32F303ZDT7
TME IC: STM32 ARM microcontroller, 72MHz, LQFP144, 2÷3.6VDC, Cmp: 7 Min Qty: 1 0
  • 1 $11.7000
  • 5 $10.7700
  • 30 $10.1400
  • 120 $9.0300
  • 240 $8.6400
  • 480 $8.5000
$8.5000 / $11.7000 RFQ
DISTI # STM32F303ZDT7
Avnet Silica (Alt: STM32F303ZDT7) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F303ZDT7
EBV Elektronik (Alt: STM32F303ZDT7) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STM32F303ZDT7

STM32F303ZDT7 CAD Models

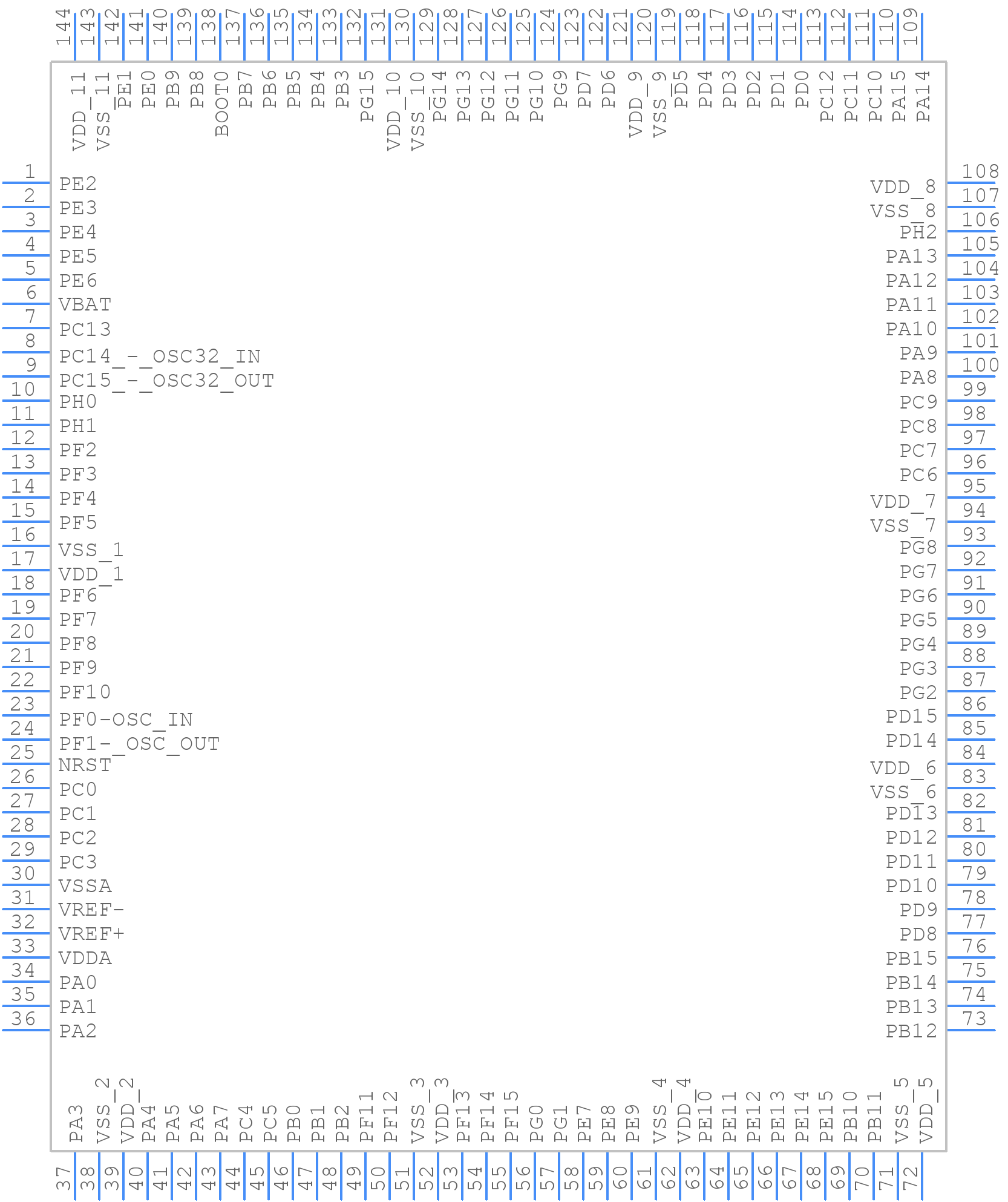

  • Part Symbol

    Part Symbol

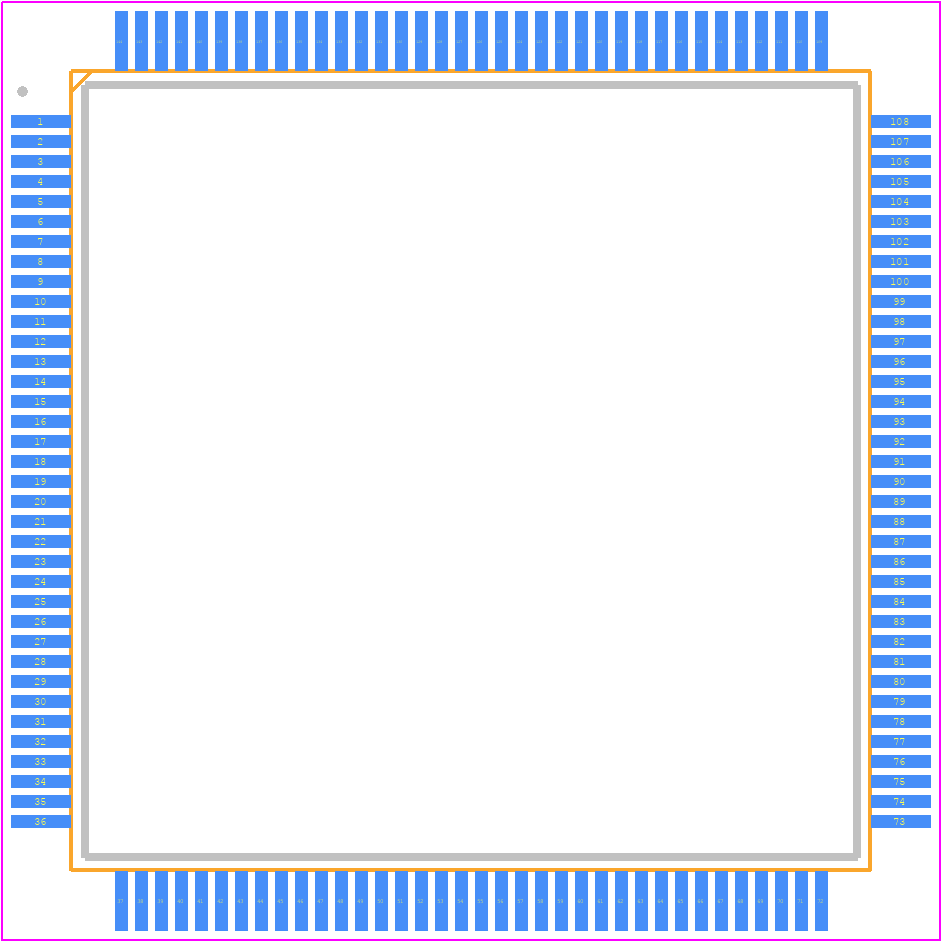

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F303ZDT7 Part Data Attributes

Parametric Data
STM32F303ZDT7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F303ZDT7 STMicroelectronics Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 384 Kbytes of Flash memory, 72 MHz CPU, MPU, CCM, 12-bit ADC 5 MSPS, PGA, comparators
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description QFP, QFP144,.87SQ,20
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width 24
Bit Size 32
CPU Family CORTEX-M4F
Clock Frequency-Max 32 MHz
DMA Channels YES
External Data Bus Width 32
JESD-30 Code S-PQFP-G144
Length 20 mm
Number of I/O Lines 115
Number of Terminals 144
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK
Qualification Status Not Qualified
RAM (bytes) 65536
ROM (words) 393216
ROM Programmability FLASH
Speed 72 MHz
Supply Current-Max 77.4 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 20 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F303ZDT7

This table gives cross-reference parts and alternative options found for STM32F303ZDT7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F303ZDT7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F303ZDT6 STMicroelectronics $8.6578 Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 384 Kbytes of Flash memory, 72 MHz CPU, MPU, CCM, 12-bit ADC 5 MSPS, PGA, comparators STM32F303ZDT7 vs STM32F303ZDT6
STM32F303ZDT7TR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F303ZDT7 vs STM32F303ZDT7TR
STM32F303ZDT6TR STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F303ZDT7 vs STM32F303ZDT6TR
STM32F303ZDT6XXX STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F303ZDT7 vs STM32F303ZDT6XXX
STM32F303ZDT7XXX STMicroelectronics Check for Price RISC MICROCONTROLLER STM32F303ZDT7 vs STM32F303ZDT7XXX
