Microcontrollers and Processors / Microcontrollers / STM32F301C8T7TR
Datasheets
STM32F301C8T7TR by: STMicroelectronics

Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp

Part Details for STM32F301C8T7TR by STMicroelectronics

Results Overview of STM32F301C8T7TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

STM32F301C8T7TR Information

STM32F301C8T7TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F301C8T7TR

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32F301C8T7TR-ND
DigiKey IC MCU 32BIT 64KB FLASH 48LQFP Min Qty: 2400 Lead time: 13 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,400 $3.0044
$3.0044 Buy Now
DISTI # STM32F301C8T7TR
Avnet Americas MCU 32-Bit ARM Cortex M4 RISC 64KB Flash 2V to 3.6V 48-Pin LQFP T/R - Tape and Reel (Alt: STM32F301C8T7TR) RoHS: Not Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 2,400 $2.9443
  • 4,800 $2.9292
  • 9,600 $2.9142
  • 14,400 $2.8992
  • 19,200 $2.8842
$2.8842 / $2.9443 Buy Now
DISTI # 511-STM32F301C8T7TR
Mouser Electronics ARM Microcontrollers - MCU Mainstream Mixed signals MCUs Arm Cortex-M4 core DSP FPU 64 Kbytes 72 MHz CPU 12 RoHS: Compliant 0
  • 2,400 $2.9200
$2.9200 Order Now
DISTI # STM32F301C8T7TR
IBS Electronics MCU 32-BIT ARM CORTEX M4 RISC 64KB FLASH 2V TO 3.6V 48-PIN LQFP T/R Min Qty: 2400 Package Multiple: 1 0
  • 2,400 $3.6920
$3.6920 Buy Now
DISTI # STM32F301C8T7TR
Avnet Silica MCU 32Bit ARM Cortex M4 RISC 64KB Flash 2V to 36V 48Pin LQFP TR (Alt: STM32F301C8T7TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
Cytech Systems Limited IC MCU 32BIT 64KB FLASH 48LQFP 7200
RFQ
DISTI # STM32F301C8T7TR
EBV Elektronik MCU 32Bit ARM Cortex M4 RISC 64KB Flash 2V to 36V 48Pin LQFP TR (Alt: STM32F301C8T7TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STM32F301C8T7TR

STM32F301C8T7TR CAD Models

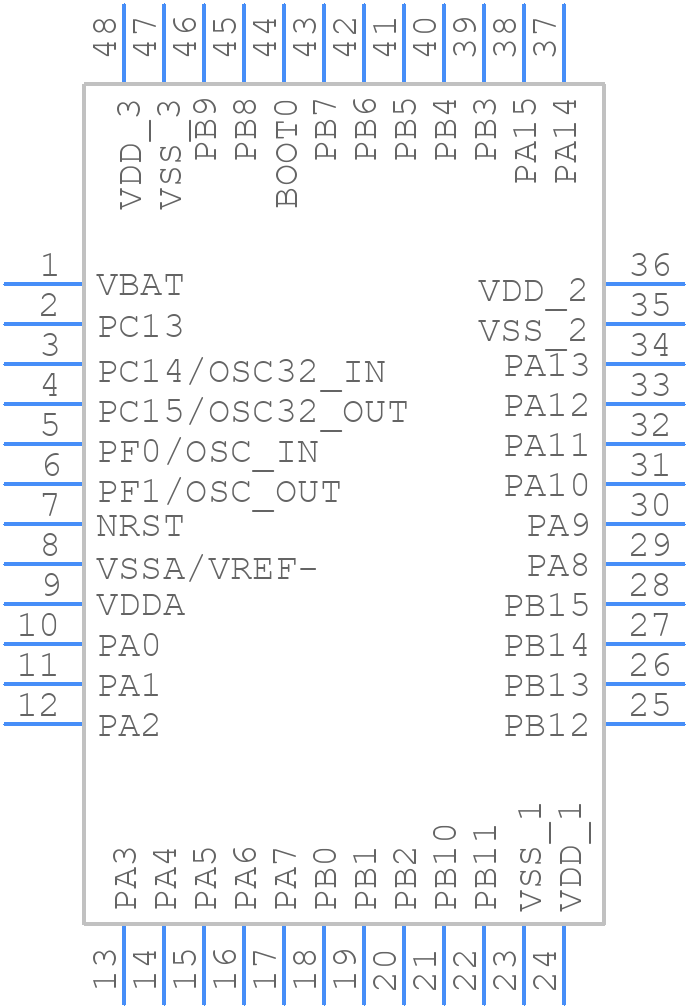

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F301C8T7TR Part Data Attributes

Parametric Data
STM32F301C8T7TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F301C8T7TR STMicroelectronics Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Package Description LQFP-48
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan YES
CPU Family CORTEX-M4
Clock Frequency-Max 32 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G48
JESD-609 Code e3
Length 7 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 7
Number of I/O Lines 37
Number of Serial I/Os 3
Number of Terminals 48
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
RAM (bytes) 16384
ROM (words) 65536
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 72 MHz
Supply Current-Max 52 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F301C8T7TR

This table gives cross-reference parts and alternative options found for STM32F301C8T7TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F301C8T7TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F301C8T7 STMicroelectronics $2.3807 Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp STM32F301C8T7TR vs STM32F301C8T7
STM32F301C8T6 STMicroelectronics $3.8245 Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp STM32F301C8T7TR vs STM32F301C8T6
STM32F301C8T6TR STMicroelectronics $5.0819 Mainstream Mixed signals MCUs Arm Cortex-M4 core with DSP and FPU, 64 Kbytes of Flash memory, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp STM32F301C8T7TR vs STM32F301C8T6TR
