Microcontrollers and Processors / Microcontrollers / STM32F207IGT7
Datasheets
STM32F207IGT7 by: STMicroelectronics

High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet

Part Details for STM32F207IGT7 by STMicroelectronics

Results Overview of STM32F207IGT7 by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

STM32F207IGT7 Information

STM32F207IGT7 by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F207IGT7

Part # Distributor Description Stock Price Buy
DISTI # 497-17912-ND
DigiKey IC MCU 32BIT 1MB FLASH 176LQFP Min Qty: 1 Lead time: 15 Weeks Container: Tray 444
In Stock
  • 1 $18.6600
  • 10 $14.8560
  • 40 $13.5068
  • 120 $12.7540
  • 280 $12.3129
  • 520 $12.0510
$12.0510 / $18.6600 Buy Now
DISTI # STM32F207IGT7
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 1024KB Flash 2.5V/3.3V 176-Pin LQFP Tray - Trays (Alt: STM32F207IGT7) RoHS: Compliant Min Qty: 40 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Tray 400
  • 40 $12.2010
  • 50 $12.1387
  • 90 $12.0765
  • 200 $11.1998
  • 400 $11.1418
$11.1418 / $12.2010 Buy Now
DISTI # 511-STM32F207IGT7
Mouser Electronics ARM Microcontrollers - MCU Hi-perf ARM Cortex M3 MCU 1 Mb RoHS: Compliant 240
  • 1 $18.6600
  • 10 $14.8500
  • 25 $11.4600
  • 50 $11.4100
  • 100 $11.3700
  • 400 $11.3600
$11.3600 / $18.6600 Buy Now
DISTI # 70520757
RS Microcontrollers, ARM, - MCU Hi-perf ARM Cortex M3 MCU 1 Mb Min Qty: 1 Package Multiple: 1 Container: Bulk 0
  • 1 $28.8600
  • 5 $27.4400
  • 10 $25.9900
  • 20 $24.5500
$24.5500 / $28.8600 RFQ
STMicroelectronics High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet COO: Taiwan RoHS: Compliant Min Qty: 1 240
  • 1 $18.2900
  • 10 $14.5500
  • 25 $11.2300
  • 50 $11.1800
  • 100 $11.1400
  • 250 $11.1400
  • 400 $11.1300
$11.1300 / $18.2900 Buy Now
Future Electronics STM32F Series 1 MB Flash 132 kB RAM ARM Based 32-Bit Microcontroller - LQFP-176 Min Qty: 40 Package Multiple: 40 1200
null
  • 40 $10.1900
  • 80 $10.1400
  • 120 $10.1100
  • 200 $10.0700
  • 400 $9.9900
$9.9900 / $10.1900 Buy Now
DISTI # STM32F207IGT7
TME IC: STM32 ARM microcontroller, 120MHz, LQFP176, 1.8÷3.6VDC Min Qty: 1 0
  • 1 $17.4400
  • 5 $16.0000
  • 25 $15.4900
  • 80 $13.6400
  • 160 $13.2300
  • 240 $12.9300
  • 480 $12.7200
  • 960 $12.3100
$12.3100 / $17.4400 RFQ
DISTI # SMC-STM32F207IGT7
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 401
RFQ
DISTI # STM32F207IGT7
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 1024KB Flash 25V33V 176Pin LQFP Tray (Alt: STM32F207IGT7) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F207IGT7
EBV Elektronik MCU 32bit STM32F ARM Cortex M3 RISC 1024KB Flash 25V33V 176Pin LQFP Tray (Alt: STM32F207IGT7) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 16 Weeks, 0 Days EBV - 240
Buy Now

Part Details for STM32F207IGT7

STM32F207IGT7 CAD Models

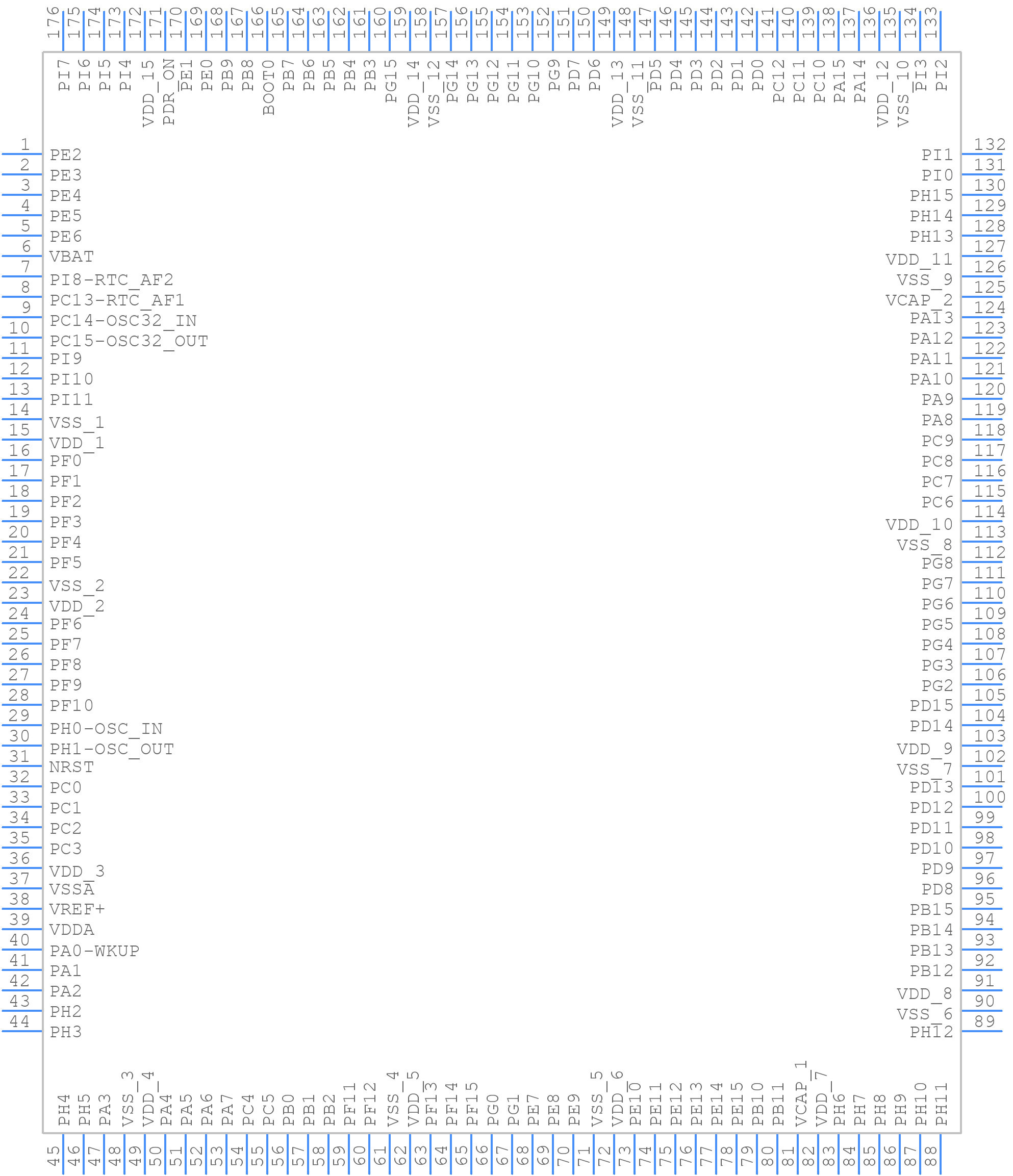

  • Part Symbol

    Part Symbol

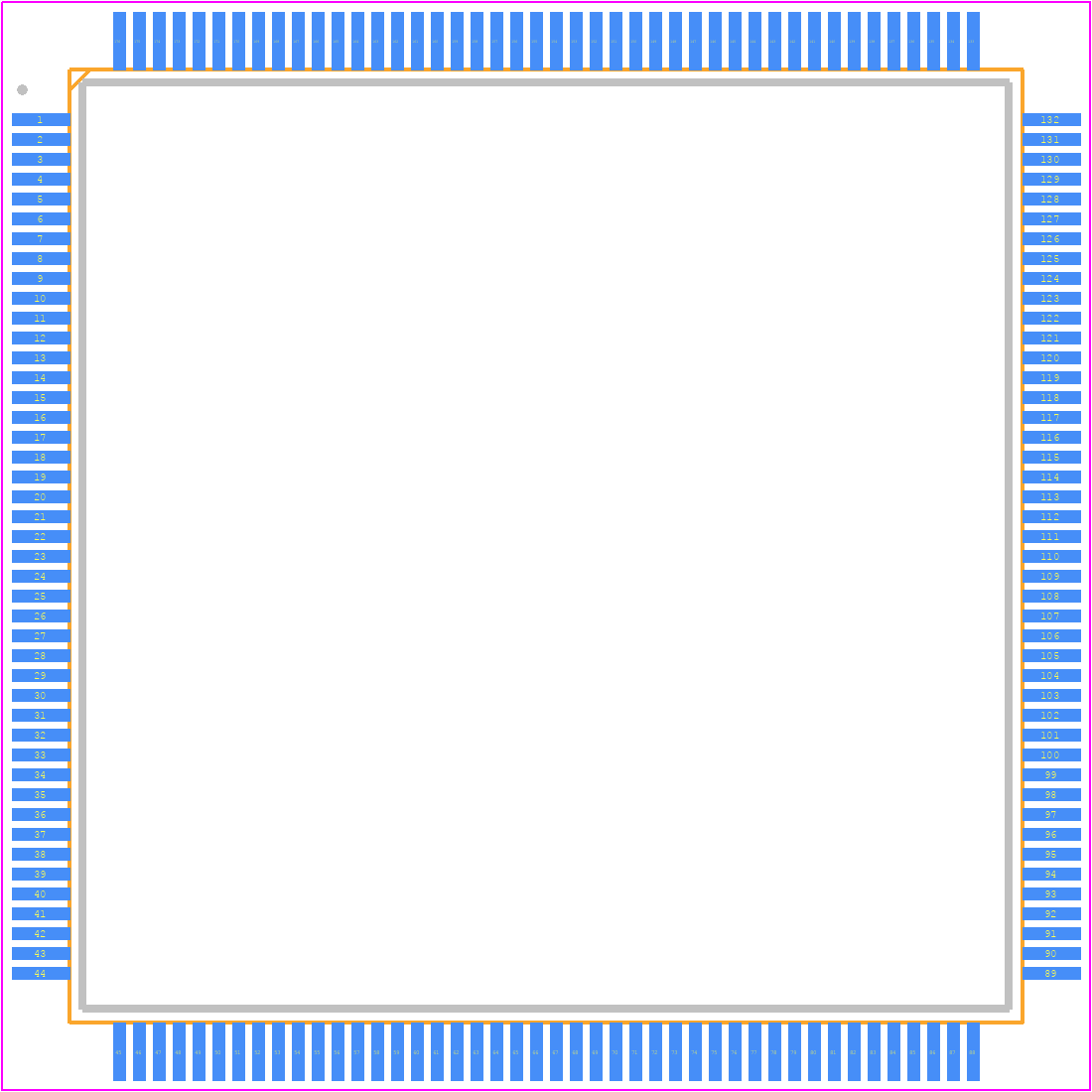

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F207IGT7 Part Data Attributes

Parametric Data
STM32F207IGT7 STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F207IGT7 STMicroelectronics High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description LQFP-176
Pin Count 176
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width 24
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 26 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width 32
JESD-30 Code S-PQFP-G176
JESD-609 Code e3
Length 24 mm
Moisture Sensitivity Level 3
Number of DMA Channels 2
Number of I/O Lines 140
Number of Terminals 176
Number of Timers 17
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP176,1.0SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 131072
ROM (words) 1048576
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 120 MHz
Supply Current-Max 93 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 24 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F207IGT7

This table gives cross-reference parts and alternative options found for STM32F207IGT7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F207IGT7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F207IGH6 STMicroelectronics $12.6591 High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet STM32F207IGT7 vs STM32F207IGH6
STM32F207IGT6 STMicroelectronics $12.7472 High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet STM32F207IGT7 vs STM32F207IGT6
STM32F207IGH6TR STMicroelectronics Check for Price High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet STM32F207IGT7 vs STM32F207IGH6TR
STM32F207IGH7 STMicroelectronics Check for Price High-performance Arm Cortex-M3 MCU with 1 Mbyte of Flash memory, 120 MHz CPU, ART Accelerator, Ethernet STM32F207IGT7 vs STM32F207IGH7

STM32F207IGT7 Related Parts

STM32F207IGT7 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F207IGT7 is 120 MHz.

  • The STM32F207IGT7 has 1 MB of flash memory.

  • Yes, the STM32F207IGT7 can be used with an external crystal oscillator. The oscillator frequency range is 4-32 MHz.

  • The power consumption of the STM32F207IGT7 depends on the operating mode. In Run mode, the current consumption is around 350 mA at 120 MHz. In Sleep mode, the current consumption is around 2 mA.

  • Yes, the STM32F207IGT7 has a built-in USB OTG (On-The-Go) interface that supports both device and host modes.
