STM32F100VET7B by: STMicroelectronics

Mainstream Value line, Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions

Part Details for STM32F100VET7B by STMicroelectronics

Results Overview of STM32F100VET7B by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32F100VET7B Information

STM32F100VET7B by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F100VET7B

Part # Distributor Description Stock Price Buy
DISTI # 99W9771
Newark Microcontroller Mcu, 32 Bit, Cortex-M3, 24Mhz, Lqfp-100, Product Range:Stm32 Family Stm32F1 Series Microcontrollers, Device Core:Arm Cortex-M3, Data Bus Width:32 Bit, Operating Frequency Max:24Mhz, Program Memory Size:512Kb Rohs Compliant: Yes |Stmicroelectronics STM32F100VET7B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $6.8500
$6.8500 Buy Now
DISTI # STM32F100VET7B-ND
DigiKey IC MCU 32BIT 512KB FLASH 100LQFP Min Qty: 540 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 540 $6.0235
$6.0235 Buy Now
DISTI # STM32F100VET7B
Avnet Americas MCU 32-bit STM32F ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 100-Pin LQFP Tray - Trays (Alt: STM32F100VET7B) RoHS: Compliant Min Qty: 540 Package Multiple: 540 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 540 $5.3791
  • 1,080 $5.2479
  • 2,160 $5.1847
  • 3,240 $5.1230
  • 4,320 $5.0627
$5.0627 / $5.3791 Buy Now
DISTI # 511-STM32F100VET7B
Mouser Electronics ARM Microcontrollers - MCU ARM Cortex M3 512kB 16 Timers ADC DAC RoHS: Compliant 0
  • 540 $6.0200
  • 1,080 $5.9600
$5.9600 / $6.0200 Order Now
DISTI # 70520739
RS Microcontrollers, ARM, - MCU ARM Cortex M3 512kB 16 Timers ADC DAC Min Qty: 10 Package Multiple: 1 Container: Bulk 0
  • 10 $6.1800
  • 50 $6.0700
  • 200 $5.5900
  • 500 $4.7200
$4.7200 / $6.1800 RFQ
DISTI # STM32F100VET7B
Avnet Silica MCU 32bit STM32F ARM Cortex M3 RISC 512KB Flash 25V33V 100Pin LQFP Tray (Alt: STM32F100VET7B) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F100VET7B
EBV Elektronik MCU 32bit STM32F ARM Cortex M3 RISC 512KB Flash 25V33V 100Pin LQFP Tray (Alt: STM32F100VET7B) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 14 Weeks, 0 Days EBV - 0
Buy Now

Part Details for STM32F100VET7B

STM32F100VET7B CAD Models

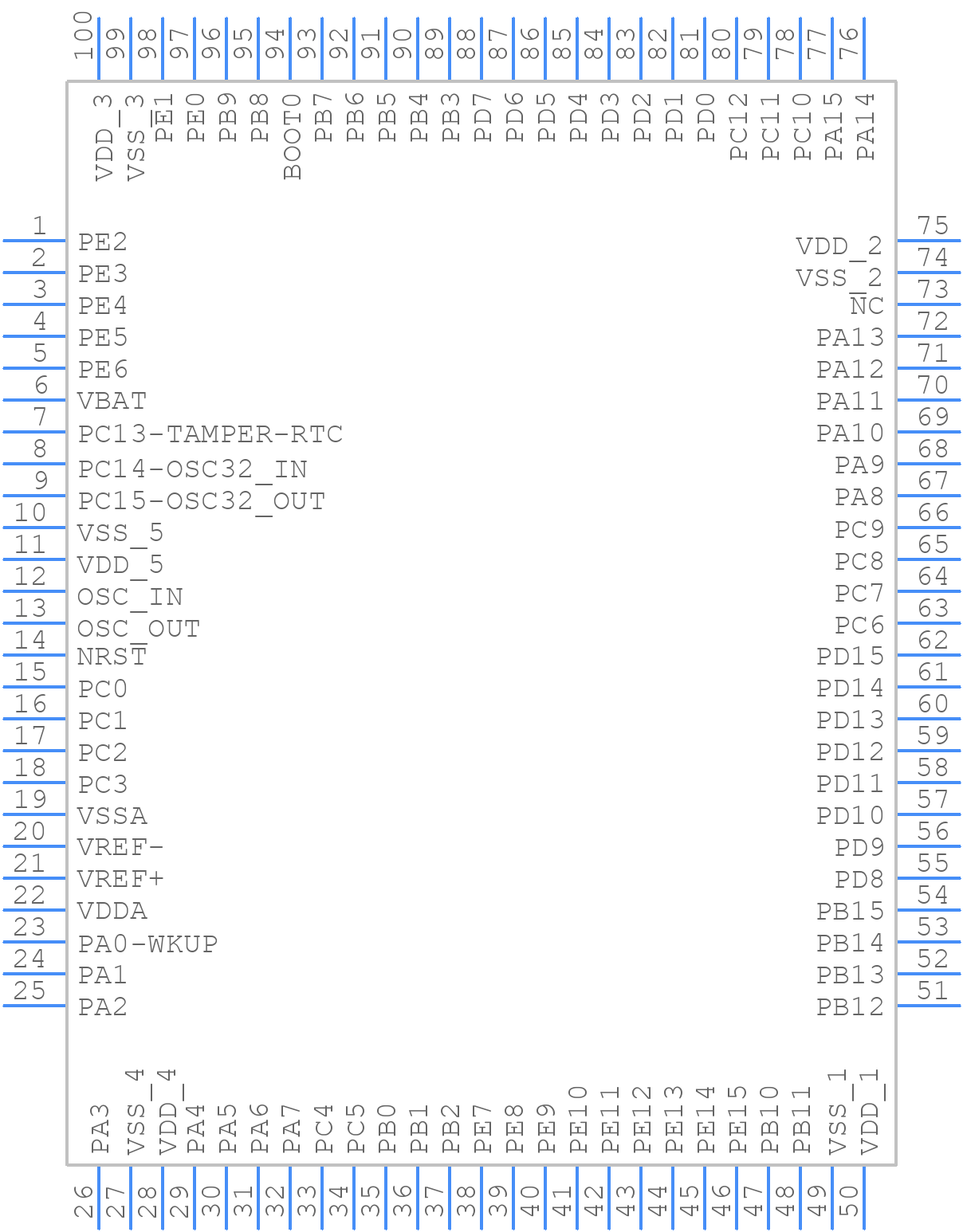

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F100VET7B Part Data Attributes

Parametric Data
STM32F100VET7B STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F100VET7B STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Pin Count 100
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 24 MHz
DAC Channels NO
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G100
Length 14 mm
Number of DMA Channels 12
Number of I/O Lines 80
Number of Terminals 100
Number of Timers 16
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Qualification Status Not Qualified
RAM (bytes) 32768
ROM (words) 524288
ROM Programmability FLASH
Speed 24 MHz
Supply Current-Max 20 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F100VET7B

This table gives cross-reference parts and alternative options found for STM32F100VET7B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F100VET7B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F100VET6B STMicroelectronics $3.4267 Mainstream Value line, Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100VET7B vs STM32F100VET6B
STM32F100VET6BTR STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100VET7B vs STM32F100VET6BTR
STM32F100VET6 STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100VET7B vs STM32F100VET6
STM32F100VET6BXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,100PIN,PLASTIC STM32F100VET7B vs STM32F100VET6BXXXTR
STM32F100VET6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100VET7B vs STM32F100VET6BXXX
STM32F100VET7BXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,100PIN,PLASTIC STM32F100VET7B vs STM32F100VET7BXXXTR
Part Number Manufacturer Composite Price Description Compare
STM32F100C4T6B STMicroelectronics $2.3087 Mainstream Value line, Arm Cortex-M3 MCU with 16 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100VET7B vs STM32F100C4T6B
STM32F100VET7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100VET7B vs STM32F100VET7BXXX
STM32F100V6T6B STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100VET7B vs STM32F100V6T6B
STM32F100CBT6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100VET7B vs STM32F100CBT6BXXX
STM32F100VDT6BTR STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 384 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100VET7B vs STM32F100VDT6BTR
STM32F100VDT7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100VET7B vs STM32F100VDT7BXXX
STM32F100V6T7BTR STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100VET7B vs STM32F100V6T7BTR
STM32F100C4T7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100VET7B vs STM32F100C4T7BXXX
STM32F100C4T7B STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 16 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100VET7B vs STM32F100C4T7B
STM32F100VCT7BTR STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100VET7B vs STM32F100VCT7BTR

STM32F100VET7B Related Parts

STM32F100VET7B Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F100VET7B is 24 MHz, but it can be overclocked to 36 MHz with a reduced voltage supply.

  • The clock settings for the STM32F100VET7B can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The RCC register is used to select the clock source, while the PWR register is used to configure the voltage regulator and power modes.

  • The BOOT0 and BOOT1 pins on the STM32F100VET7B are used to select the boot mode of the device. BOOT0 is used to select between the internal flash memory and an external memory, while BOOT1 is used to select the boot mode (flash or RAM).

  • The USART peripherals on the STM32F100VET7B can be used for serial communication. To use them, you need to configure the USART clock, enable the USART peripheral, set the baud rate, and configure the data bits, parity, and stop bits. You can then use the USART to transmit and receive data.

  • The NVIC on the STM32F100VET7B is used to handle interrupts generated by peripherals. It allows you to prioritize interrupts, enable and disable interrupts, and handle interrupt requests. The NVIC is used to improve the performance and responsiveness of the system.
