Microcontrollers and Processors / Microcontrollers / STM32F100C6T7BTR
Datasheets
STM32F100C6T7BTR by: STMicroelectronics

Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions

Part Details for STM32F100C6T7BTR by STMicroelectronics

Results Overview of STM32F100C6T7BTR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32F100C6T7BTR Information

STM32F100C6T7BTR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F100C6T7BTR

Part # Distributor Description Stock Price Buy
DISTI # 497-STM32F100C6T7BTR-ND
DigiKey IC MCU 32BIT 32KB FLASH 48LQFP Min Qty: 2400 Lead time: 13 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,400 $2.4446
$2.4446 Buy Now
DISTI # STM32F100C6T7BTR
Avnet Americas MCU 32-Bit ARM Cortex M3 RISC 32KB Flash 2V to 3.6V 48-Pin LQFP T/R - Tape and Reel (Alt: STM32F100C6T7BTR) RoHS: Not Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 2,400 $2.2456
  • 4,800 $2.1909
  • 9,600 $2.1645
  • 14,400 $2.1387
  • 19,200 $2.1135
$2.1135 / $2.2456 Buy Now
DISTI # 511-STM32F100C6T7BTR
Mouser Electronics ARM Microcontrollers - MCU Mainstream Value line, Arm Cortex-M3 MCU w/ 32 Kbytes Flash, 24 MHz CPU RoHS: Compliant 0
  • 2,400 $2.3800
$2.3800 Order Now
DISTI # V36:1790_25572425
Arrow Electronics MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 48-Pin LQFP T/R RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks Date Code: 2405 Americas - 4800
  • 2,400 $2.1830
  • 4,800 $2.1590
$2.1590 / $2.1830 Buy Now
STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions COO: China RoHS: Compliant Min Qty: 1 0
  • 1 $4.7100
  • 10 $4.2300
  • 100 $3.4700
  • 250 $3.2900
  • 500 $2.9600
$2.9600 / $4.7100 Buy Now
DISTI # 78404398
Verical MCU 32-bit ARM Cortex M3 RISC 32KB Flash 2.5V/3.3V 48-Pin LQFP T/R RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Date Code: 2405 Americas - 4800
  • 2,400 $2.1830
  • 4,800 $2.1590
$2.1590 / $2.1830 Buy Now
DISTI # STM32F100C6T7BTR
Avnet Silica MCU 32Bit ARM Cortex M3 RISC 32KB Flash 2V to 36V 48Pin LQFP TR (Alt: STM32F100C6T7BTR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now

Part Details for STM32F100C6T7BTR

STM32F100C6T7BTR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

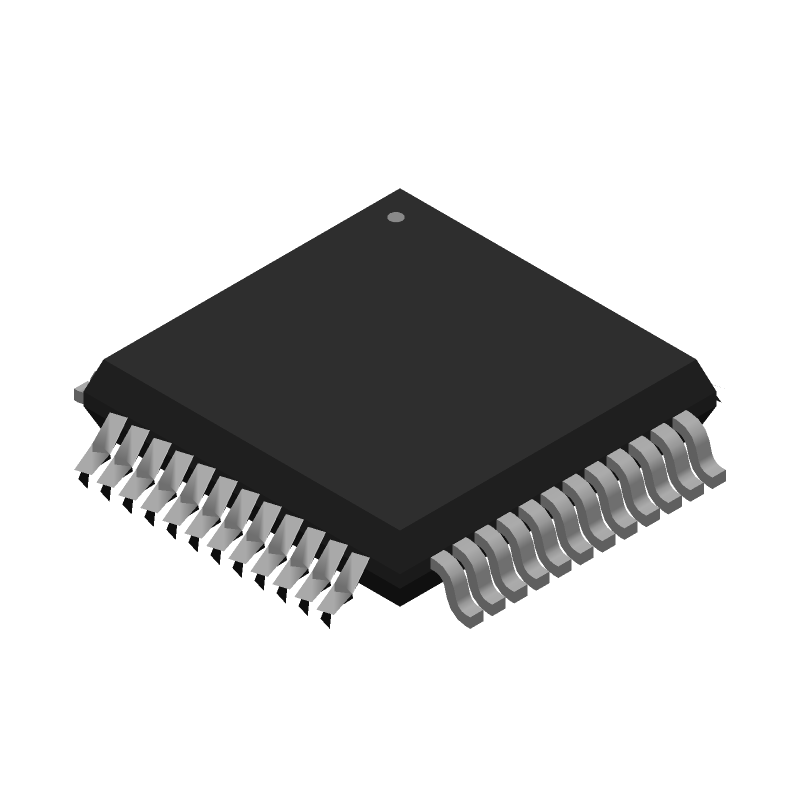

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F100C6T7BTR Part Data Attributes

Parametric Data
STM32F100C6T7BTR STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F100C6T7BTR STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description LQFP-48
Pin Count 48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
Boundary Scan NO
CPU Family CORTEX-M3
Clock Frequency-Max 24 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G48
Length 7 mm
Number of I/O Lines 37
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
RAM (bytes) 4096
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 24 MHz
Supply Current-Max 15.7 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F100C6T7BTR

This table gives cross-reference parts and alternative options found for STM32F100C6T7BTR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F100C6T7BTR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F100C6T6B STMicroelectronics $2.3913 Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100C6T6B
STM32F100VBT7B STMicroelectronics $2.4463 Mainstream Value line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100VBT7B
STM32F100VBT6B STMicroelectronics $2.9434 Mainstream Value line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100VBT6B
STM32F100C6T7BXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,48PIN,PLASTIC STM32F100C6T7BTR vs STM32F100C6T7BXXXTR
STM32F100VBT7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100C6T7BTR vs STM32F100VBT7BXXX
STM32F100VBT7BXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,100PIN,PLASTIC STM32F100C6T7BTR vs STM32F100VBT7BXXXTR
Part Number Manufacturer Composite Price Description Compare
STM32F100C6T6BTR STMicroelectronics $2.7162 Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100C6T6BTR
STM32F100VCT6 STMicroelectronics $5.2183 Mainstream value line, Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100VCT6
STM32F100C6T7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C6T7BTR vs STM32F100C6T7BXXX
STM32F100VBT6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100C6T7BTR vs STM32F100VBT6BXXX
STM32F100C6T7B STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100C6T7B
STM32F100V4T6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100C6T7BTR vs STM32F100V4T6BXXX
STM32F100VET7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100C6T7BTR vs STM32F100VET7BXXX
STM32F100C4T7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C6T7BTR vs STM32F100C4T7BXXX
STM32F100VDT7B STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 384 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7BTR vs STM32F100VDT7B
STM32F100C4T7BTR STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C6T7BTR vs STM32F100C4T7BTR

STM32F100C6T7BTR Related Parts

STM32F100C6T7BTR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F100C6T7BTR is 24 MHz, but it can be overclocked to 36 MHz with a reduced voltage range.

  • The clock settings can be configured using the Clock Control Register (RCC) in the STM32F100C6T7BTR. You can use the STM32CubeMX software or write your own code to configure the clock settings.

  • The STM32F100C6T7BTR has 32 KB of Flash memory and 8 KB of SRAM.

  • No, the STM32F100C6T7BTR is a 3.3V device and should not be used with a 5V power supply. Using a 5V power supply can damage the device.

  • The STM32F100C6T7BTR can be programmed using a variety of methods, including the ST-Link/V2 debugger, the UART bootloader, or the IAP (In-Application Programming) protocol.
