Microcontrollers and Processors / Microcontrollers / STM32F100C6T7B
Datasheets
STM32F100C6T7B by: STMicroelectronics

Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions

Part Details for STM32F100C6T7B by STMicroelectronics

Results Overview of STM32F100C6T7B by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

STM32F100C6T7B Information

STM32F100C6T7B by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for STM32F100C6T7B

Part # Distributor Description Stock Price Buy
DISTI # STM32F100C6T7B-ND
DigiKey IC MCU 32BIT 32KB FLASH 48LQFP Min Qty: 1500 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 1,500 $2.4804
$2.4804 Buy Now
DISTI # STM32F100C6T7B
Avnet Americas ARM MCU, STM32 Family STM32F1 Series Microcontrollers, ARM Cortex-M3, 32 bit, 24 MHz, 32 KB - Trays (Alt: STM32F100C6T7B) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 1,500 $2.4308
  • 3,000 $2.4184
  • 6,000 $2.4060
  • 9,000 $2.3936
  • 12,000 $2.3812
$2.3812 / $2.4308 Buy Now
DISTI # 511-STM32F100C6T7B
Mouser Electronics ARM Microcontrollers - MCU 32B ARM Cortex-M3 Value line 32KB Flsh RoHS: Compliant 0
  • 1,500 $2.4200
$2.4200 Order Now
STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions COO: China RoHS: Compliant Min Qty: 1 0
  • 1 $4.7100
  • 10 $4.2300
  • 100 $3.4700
  • 250 $3.2900
  • 500 $2.9600
$2.9600 / $4.7100 Buy Now
DISTI # STM32F100C6T7B
Avnet Silica ARM MCU STM32 Family STM32F1 Series Microcontrollers ARM CortexM3 32 bit 24 MHz 32 KB (Alt: STM32F100C6T7B) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # STM32F100C6T7B
EBV Elektronik ARM MCU STM32 Family STM32F1 Series Microcontrollers ARM CortexM3 32 bit 24 MHz 32 KB (Alt: STM32F100C6T7B) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 14 Weeks, 0 Days EBV - 1250
Buy Now

Part Details for STM32F100C6T7B

STM32F100C6T7B CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

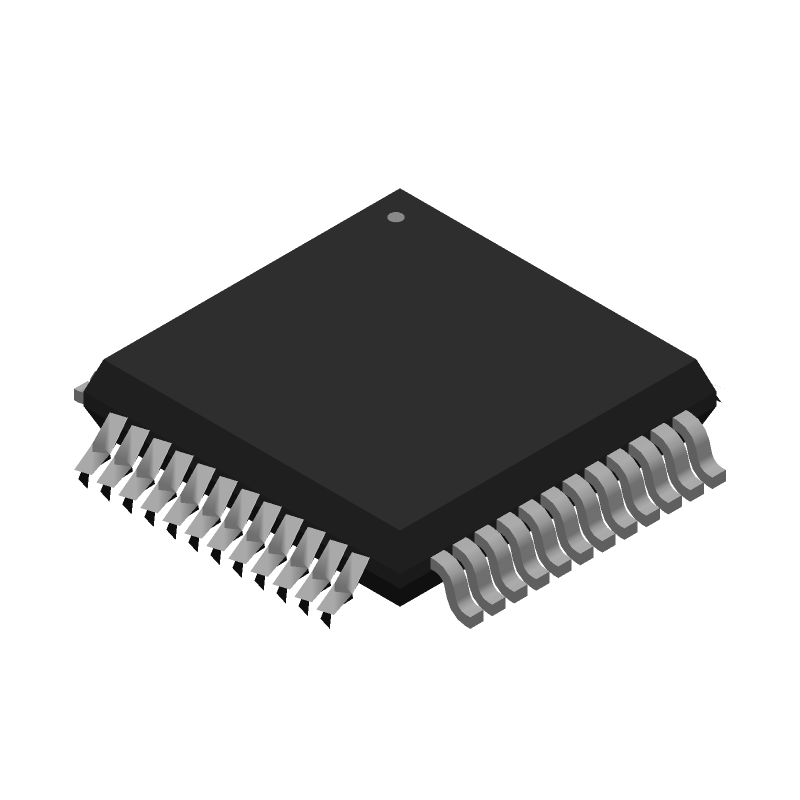

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STM32F100C6T7B Part Data Attributes

Parametric Data
STM32F100C6T7B STMicroelectronics
Buy Now Datasheet
Compare Parts:
STM32F100C6T7B STMicroelectronics Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code QFP
Package Description LQFP-48
Pin Count 48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer STMicroelectronics
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family CORTEX-M3
Clock Frequency-Max 24 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G48
JESD-609 Code e4
Length 7 mm
Moisture Sensitivity Level 3
Number of I/O Lines 37
Number of Terminals 48
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 4096
ROM (words) 32768
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 24 MHz
Supply Current-Max 15.7 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 7 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for STM32F100C6T7B

This table gives cross-reference parts and alternative options found for STM32F100C6T7B. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of STM32F100C6T7B, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
STM32F100C6T6B STMicroelectronics $2.3913 Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100C6T6B
STM32F100VBT7B STMicroelectronics $2.4463 Mainstream Value line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100VBT7B
STM32F100VBT6B STMicroelectronics $2.9434 Mainstream Value line, Arm Cortex-M3 MCU with 128 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100VBT6B
STM32F100C6T7BXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,48PIN,PLASTIC STM32F100C6T7B vs STM32F100C6T7BXXXTR
STM32F100VBT7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100C6T7B vs STM32F100VBT7BXXX
STM32F100VBT7BXXXTR STMicroelectronics Check for Price IC,MICROCONTROLLER,32-BIT,CORTEX-M3 CPU,CMOS,QFP,100PIN,PLASTIC STM32F100C6T7B vs STM32F100VBT7BXXXTR
STM32F100C6T7BTR STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100C6T7BTR
Part Number Manufacturer Composite Price Description Compare
STM32F100C6T6BTR STMicroelectronics $2.7162 Mainstream Value line, Arm Cortex-M3 MCU with 32 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100C6T6BTR
STM32F100VCT6 STMicroelectronics $5.2183 Mainstream value line, Arm Cortex-M3 MCU with 256 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100VCT6
STM32F100C6T7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C6T7B vs STM32F100C6T7BXXX
STM32F100VBT6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100C6T7B vs STM32F100VBT6BXXX
STM32F100V4T6BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, ROHS COMPLIANT, LQFP-100 STM32F100C6T7B vs STM32F100V4T6BXXX
STM32F100VET7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100C6T7B vs STM32F100VET7BXXX
STM32F100C4T7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C6T7B vs STM32F100C4T7BXXX
STM32F100VDT7B STMicroelectronics Check for Price Mainstream Value line, Arm Cortex-M3 MCU with 384 Kbytes of Flash memory, 24 MHz CPU, motor control and CEC functions STM32F100C6T7B vs STM32F100VDT7B
STM32F100C4T7BTR STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7 MM, ROHS COMPLIANT, LQFP-48 STM32F100C6T7B vs STM32F100C4T7BTR
STM32F100VDT7BXXX STMicroelectronics Check for Price 32-BIT, FLASH, 24MHz, RISC MICROCONTROLLER, PQFP100, 14 X 14 MM, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-100 STM32F100C6T7B vs STM32F100VDT7BXXX

STM32F100C6T7B Related Parts

STM32F100C6T7B Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the STM32F100C6T7B is 24 MHz, which is the frequency of the internal oscillator.

  • The clock settings for the STM32F100C6T7B can be configured using the Clock Control Register (RCC_CR) and the Clock Configuration Register (RCC_CFGR).

  • The BOOT0 and BOOT1 pins are used to select the boot mode of the microcontroller. BOOT0 is used to select between the internal flash and the system memory, while BOOT1 is used to select between the internal flash and the external memory.

  • The USART peripheral on the STM32F100C6T7B can be used for asynchronous communication. To use it, you need to configure the USART clock, enable the USART peripheral, and set the baud rate and data bits.

  • The NVIC is used to handle interrupts generated by the peripherals. It allows the microcontroller to prioritize and handle interrupts efficiently.
