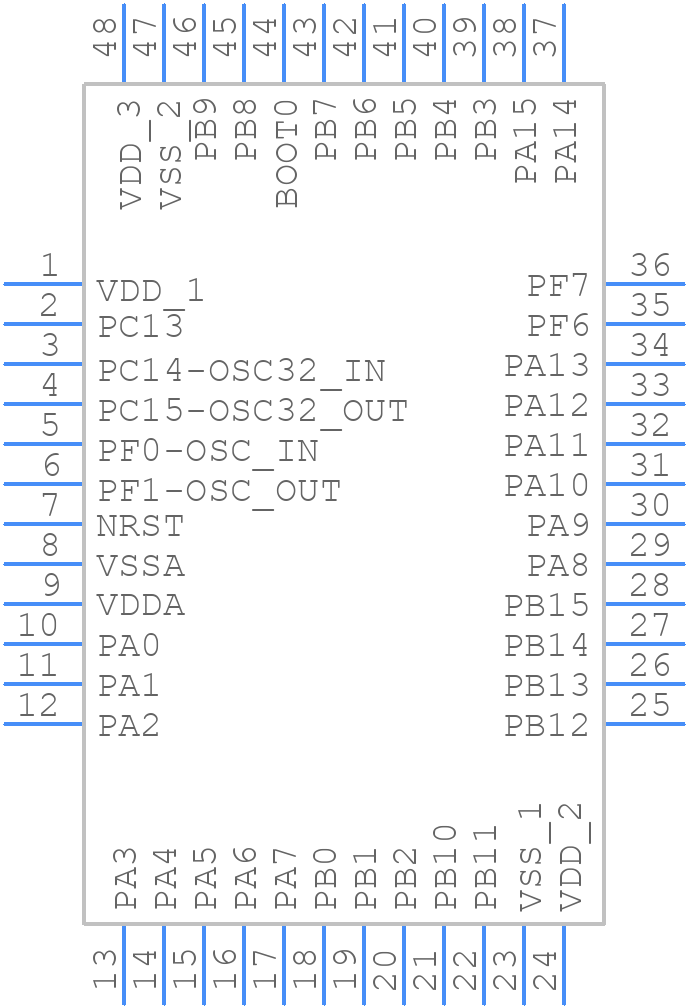

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STM32F030C8T6TR by STMicroelectronics
Results Overview of STM32F030C8T6TR by STMicroelectronics
- Distributor Offerings: (32 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STM32F030C8T6TR Information
STM32F030C8T6TR by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM32F030C8T6TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75X0273
|
Newark | Mcu, 32Bit, Cortex-M0, 48Mhz, Lqfp-48, Product Range:Stm32 Family Stm32F0 Series Microcontrollers, Device Core:Arm Cortex-M0, Data Bus Width:32 Bit, Operating Frequency Max:48Mhz, Program Memory Size:64Kb, No. Of Pins:48Pins Rohs Compliant: Yes |Stmicroelectronics STM32F030C8T6TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1703 |
|
$1.5200 / $1.6600 | Buy Now |
|
DISTI #
497-17331-1-ND
|
DigiKey | IC MCU 32BIT 64KB FLASH 48LQFP Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
12992 In Stock |
|
$1.2302 / $2.4400 | Buy Now |
|
DISTI #
STM32F030C8T6TR
|
Avnet Americas | ARM MCU, Value Line, STM32 Family STM32F0 Series Microcontrollers, ARM Cortex-M0, 32 bit, 48 MHz - Tape and Reel (Alt: STM32F030C8T6TR) RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks, 0 Days Container: Reel | 16800 |
|
$1.0815 / $1.1491 | Buy Now |
|
DISTI #
75X0273
|
Avnet Americas | ARM MCU, Value Line, STM32 Family STM32F0 Series Microcontrollers, ARM Cortex-M0, 32 bit, 48 MHz - Product that comes on tape, but is not reeled (Alt: 75X0273) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 3 Days Container: Ammo Pack | 1703 Partner Stock |
|
$1.6100 / $2.1500 | Buy Now |
|
DISTI #
511-STM32F030C8T6TR
|
Mouser Electronics | ARM Microcontrollers - MCU Mainstream Arm Cortex-M0 Value line MCU 64 Kbytes of Flash , 48 MHz CPU RoHS: Compliant | 11825 |
|
$1.2300 / $2.4400 | Buy Now |
|
DISTI #
V79:2366_27121570
|
Arrow Electronics | MCU 32-bit ARM Cortex M0 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2139 | Americas - 104200 |
|
$1.0757 | Buy Now |
|
DISTI #
V36:1790_06561131
|
Arrow Electronics | MCU 32-bit ARM Cortex M0 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP T/R RoHS: Compliant Min Qty: 2400 Package Multiple: 2400 Lead time: 13 Weeks Date Code: 2508 | Americas - 2400 |
|
$1.0601 / $1.1435 | Buy Now |
|
DISTI #
V72:2272_06561131
|
Arrow Electronics | MCU 32-bit ARM Cortex M0 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2234 Container: Cut Strips | Americas - 18 |
|
$1.1790 / $1.7060 | Buy Now |
|
DISTI #
70521131
|
RS | STM32F030C8T6TR,32bit ARM Cortex M0 Microcontroller,48MHz,64kb Flash,48-Pin LQFP Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$2.5700 / $3.0300 | RFQ |
|
|
STMicroelectronics | Mainstream Arm Cortex-M0 Value line MCU with 64 Kbytes of Flash memory, 48 MHz CPU RoHS: Compliant Min Qty: 1 | 11825 |
|
$1.3300 / $2.3900 | Buy Now |
Part Details for STM32F030C8T6TR
STM32F030C8T6TR CAD Models
STM32F030C8T6TR Part Data Attributes
|
|
STM32F030C8T6TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STM32F030C8T6TR
STMicroelectronics
Mainstream Arm Cortex-M0 Value line MCU with 64 Kbytes of Flash memory, 48 MHz CPU
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M0 | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 39 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 8192 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 48 MHz | |
| Supply Current-Max | 23.2 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
STM32F030C8T6TR Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the STM32F030C8T6TR is 48 MHz.
-
The STM32F030C8T6TR has 64 KB of flash memory.
-
No, the STM32F030C8T6TR is a 3.3V device and should not be used with a 5V power supply. Using a 5V power supply can damage the device.
-
The clock settings on the STM32F030C8T6TR can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). Refer to the STM32F030C8T6TR datasheet and the STM32F0xx Standard Peripheral Library documentation for more information.
-
Yes, the STM32F030C8T6TR can be used with an external crystal oscillator. The device has an internal oscillator and a phase-locked loop (PLL) that can be used to generate the clock signal.
