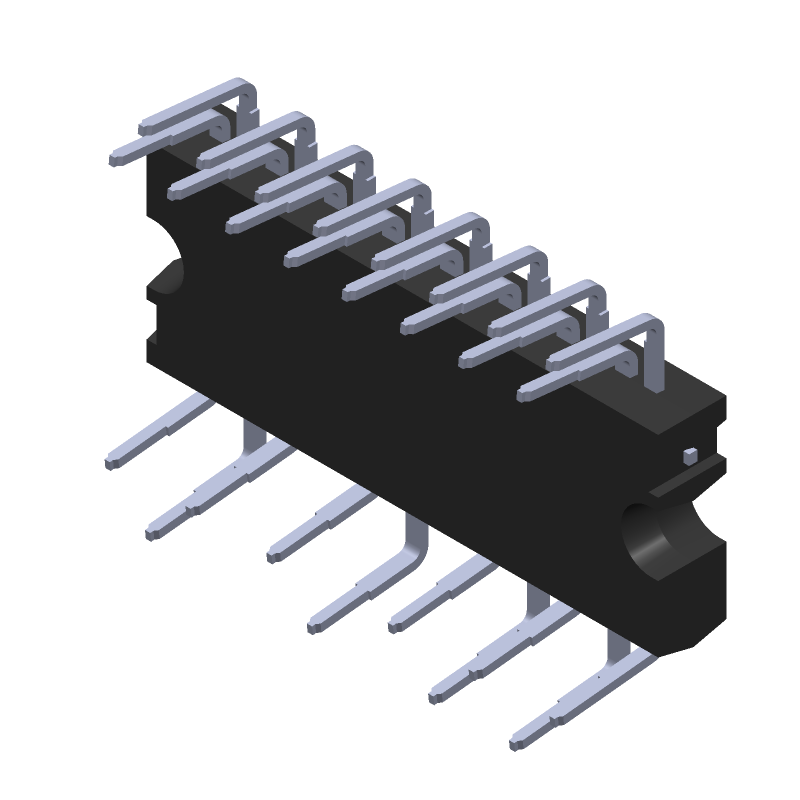

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STGIPQ5C60T-HZ by STMicroelectronics
Results Overview of STGIPQ5C60T-HZ by STMicroelectronics
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
STGIPQ5C60T-HZ Information
STGIPQ5C60T-HZ by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for STGIPQ5C60T-HZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79Y9463
|
Newark | Ipm Module, Igbt, 600V, 5A, N2Dip, Ipm Power Device:Igbt, Voltage Rating (Vces/Vdss):600V, Current Rating (Ic/Id):5A, Isolation Voltage:1.5Kv, Ipm Case Style:N2Dip, Ipm Series:Sllimm-Nano, Product Range:Sllimm Nano 2Nd Series Rohs Compliant: Yes |Stmicroelectronics STGIPQ5C60T-HZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 329 |
|
$7.3500 / $11.6300 | Buy Now |
|
DISTI #
497-16313-5-ND
|
DigiKey | SLLIMM NANO 2ND SERIES IPM, 3-PH Min Qty: 1 Lead time: 16 Weeks Container: Tube |
325 In Stock |
|
$4.6250 / $10.0400 | Buy Now |
|
DISTI #
STGIPQ5C60T-HZ
|
Avnet Americas | Intelligent Power Module (IPM), IGBT, 600 V, 5 A, 1.5 kV, N2DIP, SLLIMM-nano - Rail/Tube (Alt: STGIPQ5C60T-HZ) RoHS: Compliant Min Qty: 15 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tube | 360 |
|
$4.4048 / $4.7138 | Buy Now |
|
DISTI #
511-STGIPQ5C60T-HZ
|
Mouser Electronics | IGBT Modules SLLIMM nano 2nd series IPM, 3-phase inverter, 5 A, 600 V short-circuit rugged IG RoHS: Compliant | 311 |
|
$4.6200 / $9.1300 | Buy Now |
|
|
STMicroelectronics | SLLIMM nano 2nd series IPM, 3-phase inverter, 5 A, 600 V, short-circuit rugged IGBT COO: China RoHS: Compliant Min Qty: 1 | 311 |
|
$4.5300 / $8.9500 | Buy Now |
|
DISTI #
83647525
|
Verical | IPM IGBT 600V 5A 26-Pin N2DIP Tube Min Qty: 6 Package Multiple: 1 | Americas - 360 |
|
$4.6000 / $8.5400 | Buy Now |
|
DISTI #
STGIPQ5C60T-HZ
|
TME | IC: driver, IGBT three-phase bridge,NTC thermistor, 5A, Ch: 6 Min Qty: 1 | 0 |
|
$8.4600 / $11.9000 | RFQ |
|
DISTI #
STGIPQ5C60T-HZ
|
Avnet Silica | Intelligent Power Module IPM IGBT 600 V 5 A 15 kV N2DIP SLLIMMnano (Alt: STGIPQ5C60T-HZ) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 17 Weeks, 0 Days | Silica - 4485 |
|
Buy Now | |
|
DISTI #
STGIPQ5C60T-HZ
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 360 |
|
$4.6200 / $8.5400 | Buy Now |
|
DISTI #
STGIPQ5C60T-HZ
|
EBV Elektronik | Intelligent Power Module IPM IGBT 600 V 5 A 15 kV N2DIP SLLIMMnano (Alt: STGIPQ5C60T-HZ) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 17 Weeks, 0 Days | EBV - 90 |
|
Buy Now |
Part Details for STGIPQ5C60T-HZ
STGIPQ5C60T-HZ CAD Models
STGIPQ5C60T-HZ Part Data Attributes
|
|
STGIPQ5C60T-HZ
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STGIPQ5C60T-HZ
STMicroelectronics
SLLIMM nano 2nd series IPM, 3-phase inverter, 5 A, 600 V short-circuit rugged IGBTs
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | DIP-26 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | AC MOTOR CONTROLLER | |
| JESD-30 Code | R-XDFM-T26 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 26 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DFM | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 13.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
STGIPQ5C60T-HZ Frequently Asked Questions (FAQ)
-
The maximum junction temperature that the STGIPQ5C60T-HZ can withstand is 175°C.
-
To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
-
The recommended gate drive voltage for the STGIPQ5C60T-HZ is between 10V and 15V, with a maximum voltage of 20V.
-
Yes, the STGIPQ5C60T-HZ can be used in a parallel configuration to increase current handling, but it's essential to ensure proper synchronization and thermal management to avoid uneven current sharing.
-
The maximum switching frequency that the STGIPQ5C60T-HZ can handle is 100 kHz, but it's recommended to operate at a lower frequency to ensure reliable operation.
