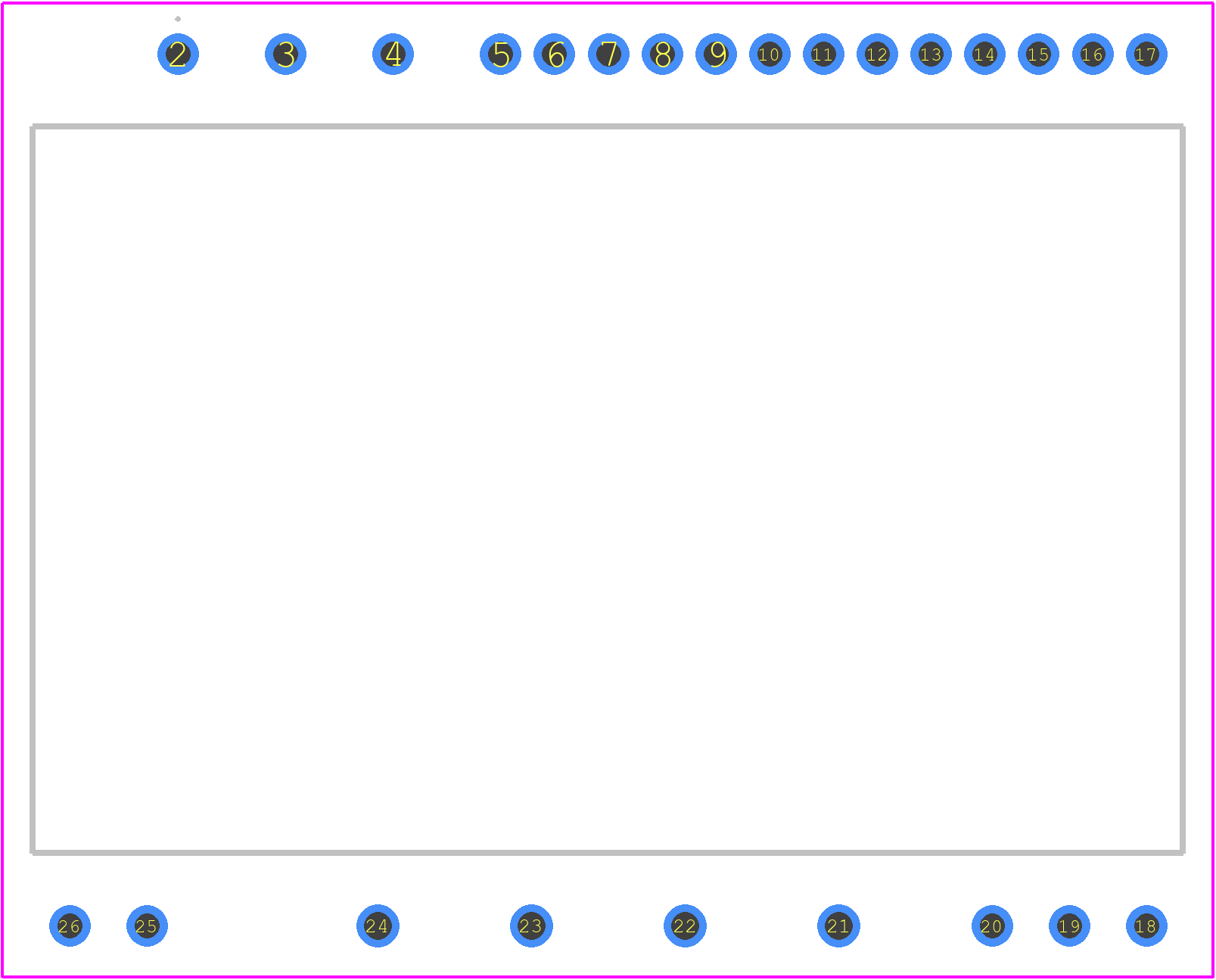

Footprint
-

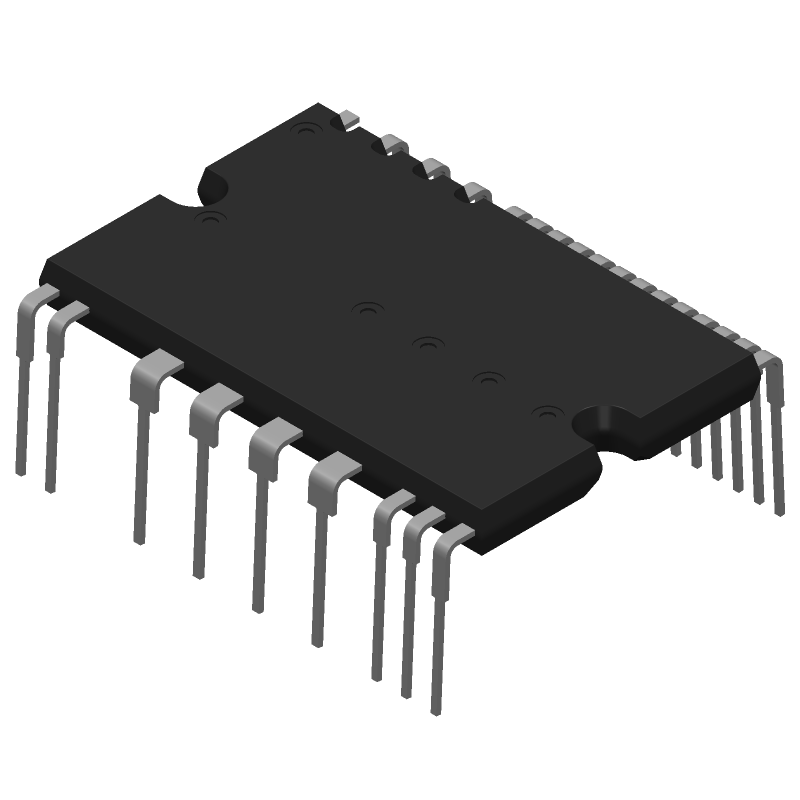

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STGIF5CH60TS-L by STMicroelectronics
Results Overview of STGIF5CH60TS-L by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
STGIF5CH60TS-L Information
STGIF5CH60TS-L by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for STGIF5CH60TS-L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AJ2837
|
Newark | Igbt, 600V, 8A, Sdip2B, Continuous Collector Current:8A, Collector Emitter Saturation Voltage:600V, Power Dissipation:30W, Operating Temperature Max:175°C, Igbt Termination:Solder, Collector Emitter Voltage Max:- Rohs Compliant: Yes |Stmicroelectronics STGIF5CH60TS-L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 153 |
|
$8.7200 / $13.6300 | Buy Now |
|
DISTI #
497-16115-5-ND
|
DigiKey | SLLIMM(TM) - 2ND SERIES IPM, 3-P Min Qty: 1 Lead time: 16 Weeks Container: Tube |
126 In Stock |
|
$5.4625 / $11.4000 | Buy Now |
|
DISTI #
STGIF5CH60TS-L
|
Avnet Americas | SLLIMM 3-phase Inverter 26-Pin SDIP2F Tube - Rail/Tube (Alt: STGIF5CH60TS-L) RoHS: Compliant Min Qty: 156 Package Multiple: 156 Lead time: 16 Weeks, 0 Days Container: Tube | 0 |
|
$5.2024 / $5.5316 | Buy Now |
|
DISTI #
511-STGIF5CH60TS-L
|
Mouser Electronics | IGBT Modules SLLIMM 2nd series IPM, 3-phase inverter, 8 A, 600 V short-circuit rugged IGBTs RoHS: Compliant | 120 |
|
$5.4600 / $10.9000 | Buy Now |
|
DISTI #
E02:0323_09170445
|
Arrow Electronics | IPM IGBT 600V 8A 26-Pin SDIP2F Tube Min Qty: 156 Package Multiple: 13 Lead time: 16 Weeks Date Code: 2437 | Europe - 728 |
|
$5.6140 / $5.9983 | Buy Now |
|
|
STMicroelectronics | SLLIMM 2nd series IPM, 3-phase inverter, 8 A, 600 V short-circuit rugged IGBTs COO: China RoHS: Compliant Min Qty: 1 | 120 |
|
$5.3500 / $10.9100 | Buy Now |
|
DISTI #
84985878
|
Verical | IPM IGBT 600V 8A 26-Pin SDIP2F Tube Min Qty: 156 Package Multiple: 156 Date Code: 2437 | Americas - 624 |
|
$5.6489 / $5.9416 | Buy Now |
|
DISTI #
STGIF5CH60TS-L
|
TME | IC: driver, IGBT three-phase bridge,NTC thermistor, SLLIMM 2nd Min Qty: 1 | 0 |
|
$10.6700 / $14.8800 | RFQ |
|
DISTI #
STGIF5CH60TS-L
|
IBS Electronics | SLLIMM™, 2ND SERIES 600V 8A 3-PHASE INVERTER SHORT-CIRCUIT RUGGED IGBT-SDIP2F-26L Min Qty: 2 Package Multiple: 1 | 0 |
|
$7.1630 / $7.4880 | Buy Now |
|
DISTI #
STGIF5CH60TS-L
|
Avnet Silica | SLLIMM 3phase Inverter 26Pin SDIP2F Tube (Alt: STGIF5CH60TS-L) RoHS: Compliant Min Qty: 13 Package Multiple: 13 Lead time: 17 Weeks, 0 Days | Silica - 689 |
|
Buy Now |
Part Details for STGIF5CH60TS-L
STGIF5CH60TS-L CAD Models
STGIF5CH60TS-L Part Data Attributes
|
|
STGIF5CH60TS-L
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STGIF5CH60TS-L
STMicroelectronics
SLLIMM 2nd series IPM, 3-phase inverter, 8 A, 600 V short-circuit rugged IGBTs
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | AC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDFM-T26 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Terminals | 26 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 16 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DFM | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Supply Voltage-Max (Vsup) | 16.5 V | |
| Supply Voltage-Min (Vsup) | 13.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
STGIF5CH60TS-L Frequently Asked Questions (FAQ)
-
The maximum junction temperature for the STGIF5CH60TS-L is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
-
To ensure proper cooling, make sure to provide a sufficient heat sink and thermal interface material between the device and the heat sink. The heat sink should be designed to dissipate the maximum power dissipation of the device, which is 250W for the STGIF5CH60TS-L.
-
The recommended gate resistor value for the STGIF5CH60TS-L is between 10Ω and 20Ω. However, the optimal value may vary depending on the specific application and switching frequency.
-
Yes, the STGIF5CH60TS-L is a high-reliability device that meets the requirements for automotive and industrial applications. It's qualified according to the AEC-Q101 standard and has a high mean time between failures (MTBF).
-
To protect the device from overvoltage and overcurrent, use a suitable voltage regulator and overcurrent protection circuit. The device also has built-in protection features such as overvoltage protection and overtemperature protection.
