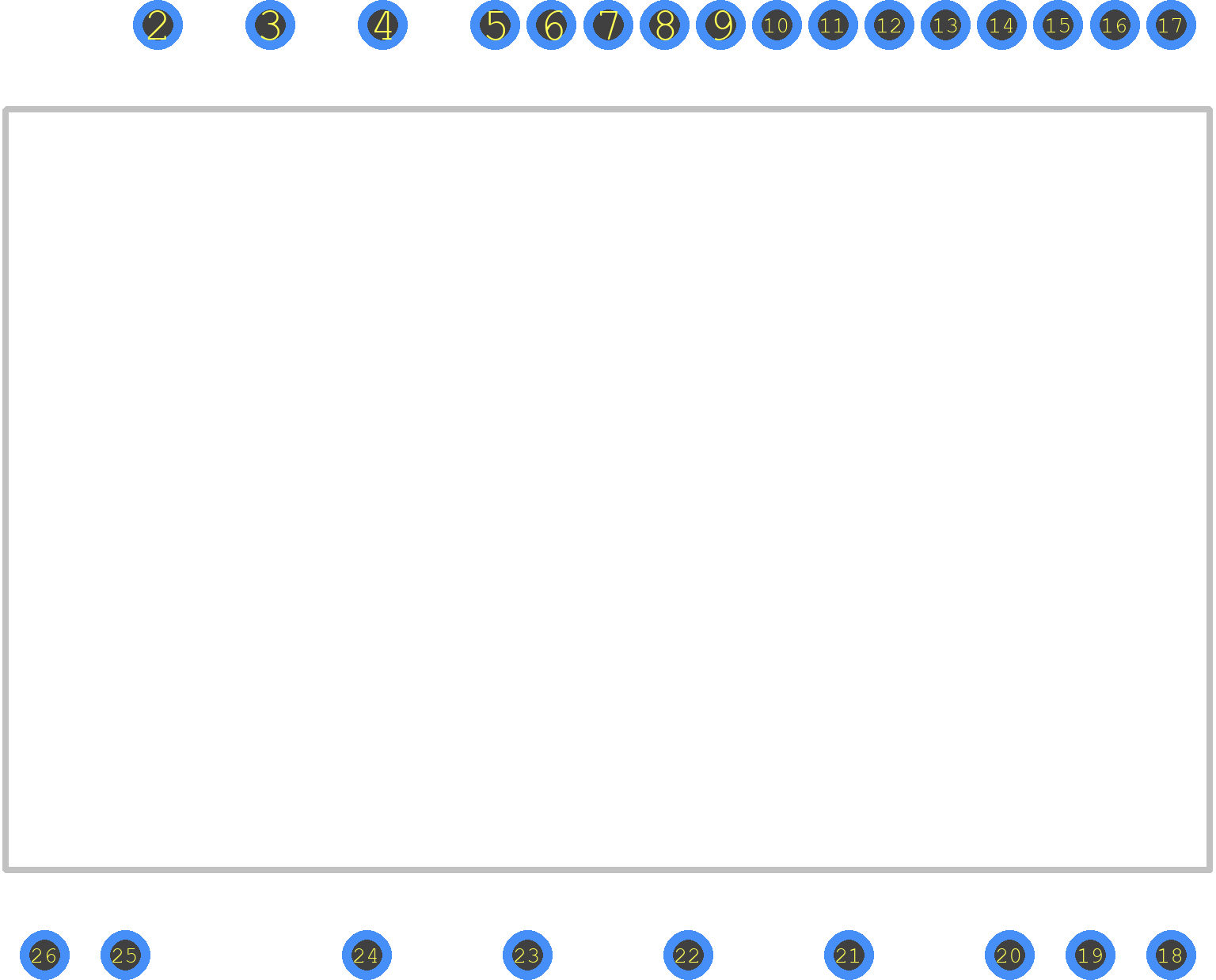

Footprint
-

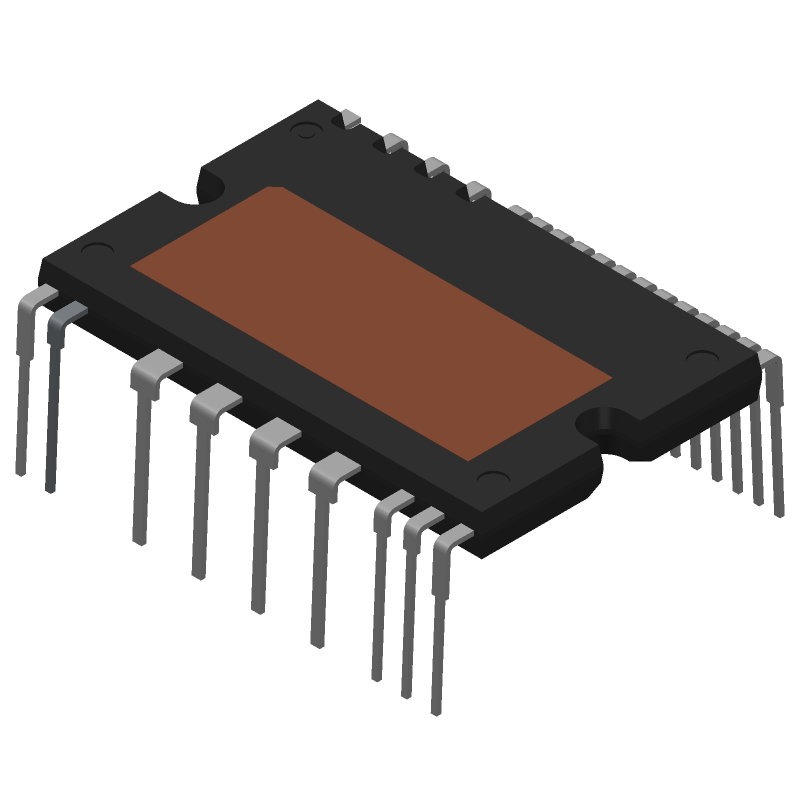

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STGIB10CH60TS-L by STMicroelectronics
Results Overview of STGIB10CH60TS-L by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
STGIB10CH60TS-L Information
STGIB10CH60TS-L by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for STGIB10CH60TS-L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2506883
|
Farnell | IGBT MODULE, 600V, 10A, SDIP2B-26 RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Each | 5 |
|
$9.2300 / $14.4492 | Buy Now |
|
DISTI #
497-16111-5-ND
|
DigiKey | SLLIMM(TM) - 2ND SERIES IPM, 3-P Min Qty: 1 Lead time: 16 Weeks Container: Tube |
167 In Stock |
|
$7.5000 / $14.5400 | Buy Now |
|
DISTI #
STGIB10CH60TS-L
|
Avnet Americas | Trans IGBT Chip N-CH 600V 15A 26-Pin SDIP2B Tube - Rail/Tube (Alt: STGIB10CH60TS-L) RoHS: Compliant Min Qty: 156 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tube | 316 |
|
$7.1429 / $7.5949 | Buy Now |
|
DISTI #
511-STGIB10CH60TS-L
|
Mouser Electronics | IGBT Modules SLLIMM 2nd,3phs 10A,600V shrt-crct RoHS: Compliant | 152 |
|
$7.5000 / $13.2600 | Buy Now |
|
DISTI #
V36:1790_13796371
|
Arrow Electronics | IPM IGBT 600V 15A 26-Pin SDIP2B EP Tube Min Qty: 156 Package Multiple: 156 Lead time: 16 Weeks Date Code: 2447 | Americas - 27768 |
|
$7.1870 / $7.2140 | Buy Now |
|
DISTI #
E02:0323_08821619
|
Arrow Electronics | IPM IGBT 600V 15A 26-Pin SDIP2B EP Tube Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2422 | Europe - 19937 |
|
$7.7242 / $8.9990 | Buy Now |
|
|
STMicroelectronics | SLLIMM 2nd series IPM, 3-phase inverter, 15 A, 600 V short-circuit rugged IGBTs RoHS: Compliant Min Qty: 1 | 152 |
|
$7.3500 / $13.5500 | Buy Now |
|
DISTI #
81753278
|
Verical | IPM IGBT 600V 15A 26-Pin SDIP2B EP Tube Min Qty: 1 Package Multiple: 1 Date Code: 2422 | Americas - 19937 |
|
$7.7677 / $9.0496 | Buy Now |
|
DISTI #
STGIB10CH60TS-L
|
TME | IC: driver, IGBT three-phase bridge,NTC thermistor, SLLIMM 2nd Min Qty: 1 | 0 |
|
$10.0000 / $13.4300 | RFQ |
|
DISTI #
STGIB10CH60TS-L
|
Avnet Silica | Trans IGBT Chip NCH 600V 15A 26Pin SDIP2B Tube (Alt: STGIB10CH60TS-L) RoHS: Compliant Min Qty: 13 Package Multiple: 13 Lead time: 17 Weeks, 0 Days | Silica - 13 |
|
Buy Now |
Part Details for STGIB10CH60TS-L
STGIB10CH60TS-L CAD Models
STGIB10CH60TS-L Part Data Attributes
|
|
STGIB10CH60TS-L
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STGIB10CH60TS-L
STMicroelectronics
SLLIMM 2nd series IPM, 3-phase inverter, 15 A, 600 V short-circuit rugged IGBTs
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | Module-26 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | AC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDMA-T26 | |
| JESD-609 Code | e3 | |
| Length | 38 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 26 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 30 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 6 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 13.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 24 mm |
STGIB10CH60TS-L Frequently Asked Questions (FAQ)
-
The maximum junction temperature for the STGIB10CH60TS-L is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
-
To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the device to dissipate heat efficiently.
-
The recommended gate resistor value for the STGIB10CH60TS-L is between 10 ohms and 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the application note or contact STMicroelectronics support for more information.
-
Yes, the STGIB10CH60TS-L is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
-
To protect the STGIB10CH60TS-L from ESD, it's essential to follow proper handling and storage procedures. Use an anti-static wrist strap or mat, and ensure the device is stored in an anti-static bag or container. Additionally, ensure the device is properly grounded during handling and assembly.
