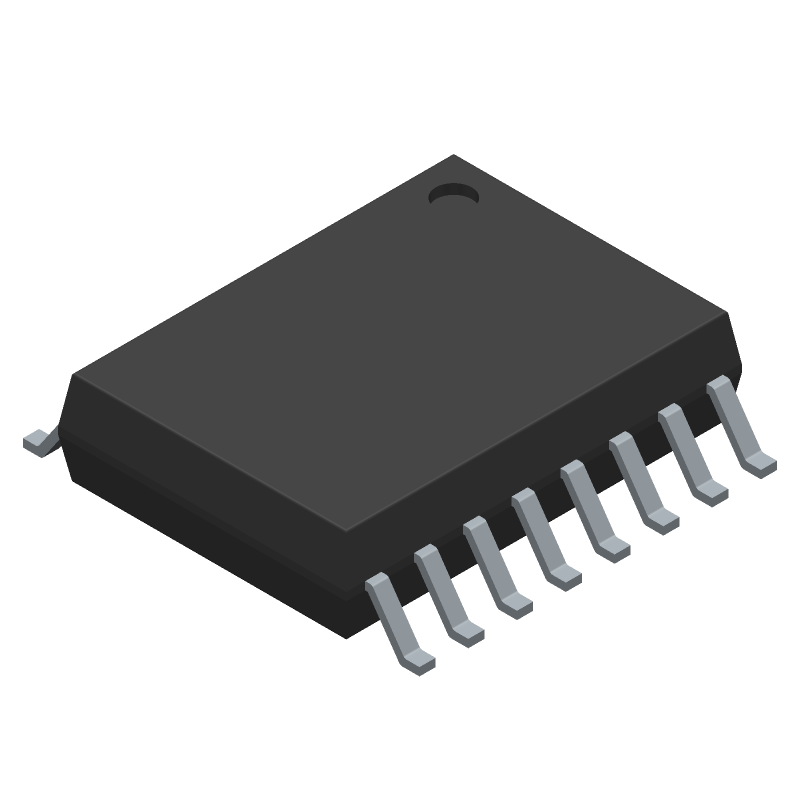

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ST232CWR by STMicroelectronics
Results Overview of ST232CWR by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ST232CWR Information
ST232CWR by STMicroelectronics is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ST232CWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70390584
|
RS | Line Transmitter/Receiver, SOP16 Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4900 / $0.6800 | RFQ |
|
|
Bristol Electronics | 290 |
|
RFQ | ||
|
|
Bristol Electronics | 264 |
|
RFQ | ||
|
|
Bristol Electronics | 150 |
|
RFQ | ||
|
|
Quest Components | LINE TRANSCEIVER, 2 FUNC, 2 DRIVER, 2 RCVR, PDSO16 | 232 |
|
$0.5438 / $1.0875 | Buy Now |
|
|
Quest Components | LINE TRANSCEIVER, 2 FUNC, 2 DRIVER, 2 RCVR, PDSO16 | 211 |
|
$0.6250 / $1.2500 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 59 |
|
$2.5000 / $3.8500 | Buy Now |
|
|
Vyrian | Interface ICs | 1250 |
|
RFQ |
Part Details for ST232CWR
ST232CWR CAD Models
ST232CWR Part Data Attributes
|
|
ST232CWR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ST232CWR
STMicroelectronics
5V POWERED MULTI-CHANNEL RS-232 DRIVERS AND RECEIVERS, [0oC, 70oC] TEMPERATURE RANGE
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | LEAD FREE, SOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.0002 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0032 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 1000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 10 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for ST232CWR
This table gives cross-reference parts and alternative options found for ST232CWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ST232CWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ST232CW | STMicroelectronics | Check for Price | 5V POWERED MULTI-CHANNEL RS-232 DRIVERS AND RECEIVERS, [0oC, 70oC] TEMPERATURE RANGE | ST232CWR vs ST232CW |
| ST232CT | STMicroelectronics | Check for Price | DUAL LINE TRANSCEIVER, PDSO16, TSSOP-16 | ST232CWR vs ST232CT |
| ST232BN | STMicroelectronics | Check for Price | 5V POWERED MULTI-CHANNEL RS-232 DRIVERS AND RECEIVERS, [-40oC, 85oC] TEMPERATURE RANGE | ST232CWR vs ST232BN |
ST232CWR Frequently Asked Questions (FAQ)
-
The ST232CWR can operate in a temperature range of -40°C to 85°C.
-
To ensure reliable data transmission, make sure to use a stable power supply, use a proper grounding system, and implement error-checking mechanisms such as checksums or CRCs.
-
Yes, the ST232CWR has built-in noise filtering and can operate in noisy environments. However, it's still recommended to use proper shielding and grounding techniques to minimize electromagnetic interference.
-
The ST232CWR can transmit data at a maximum rate of 1 Mbps.
-
The ST232CWR can be configured for half-duplex or full-duplex operation by setting the corresponding pins and registers. Refer to the datasheet for specific configuration details.
