SSW-150-22-S-S by: Samtec Inc

Board Connector, 50 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Locking, Black Insulator, Socket,

Part Details for SSW-150-22-S-S by Samtec Inc

Results Overview of SSW-150-22-S-S by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

SSW-150-22-S-S Information

SSW-150-22-S-S by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC11000DR Texas Instruments Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85
74AC11008PWR Texas Instruments Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85
74AC11138N Texas Instruments 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85

Price & Stock for SSW-150-22-S-S

Part # Distributor Description Stock Price Buy
DISTI # 83P2057
Newark Connector, Receptacle, 50 Contacts, 1 Row, 2.54 Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:50Contacts, Connector Mounting:Through Hole Mount, Product Range:Ssw Series Rohs Compliant: Yes |Samtec SSW-150-22-S-S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 545
  • 1 $9.2400
  • 10 $8.8600
  • 100 $7.3200
  • 500 $6.1900
  • 1,000 $5.4000
  • 2,500 $5.1300
$5.1300 / $9.2400 Buy Now
DISTI # SSW-150-22-S-S-ND
DigiKey CONN RCPT 50POS 0.1 GOLD PCB Min Qty: 1 Lead time: 6 Weeks Container: Bulk 87
In Stock
  • 1 $7.4700
  • 10 $7.3170
  • 25 $7.1668
  • 50 $6.9076
  • 100 $5.1570
  • 500 $4.5240
$4.5240 / $7.4700 Buy Now
DISTI # SSW-150-22-S-S
Avnet Americas PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 50 Contacts, Through Hole Mount, SSW Series - Bulk (Alt: SSW-150-22-S-S) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk 545 Factory Stock
  • 1 $7.3206
  • 10 $7.1341
  • 30 $6.3209
  • 50 $6.1744
  • 100 $4.9507
$4.9507 / $7.3206 Buy Now
DISTI # 200-SSW15022SS
Mouser Electronics Headers & Wire Housings Tiger Buy(TM) Socket Strip with PCB Tails RoHS: Compliant 0
  • 1 $7.4700
  • 10 $7.3200
  • 25 $7.1700
  • 50 $6.9100
  • 100 $5.1600
  • 500 $4.4800
  • 1,000 $3.4100
  • 2,000 $2.9600
$2.9600 / $7.4700 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 5 $9.4200
  • 25 $7.6600
  • 50 $7.5400
  • 100 $5.6300
  • 250 $5.3900
  • 500 $4.6000
  • 1,000 $3.4900
  • 2,500 $3.0400
$3.0400 / $9.4200 Buy Now
DISTI # 85139074
Verical Conn Socket Strip SKT 50 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 545
  • 2 $7.4700
$7.4700 Buy Now
DISTI # 5cd91fb7cd7c1c4c3878e608
Samtec Tiger Buy™ Socket Strip with PCB Tails, .100" Pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk 545
  • 1 $7.4700
  • 10 $7.3200
  • 25 $7.1700
  • 50 $6.9100
  • 100 $5.1600
  • 500 $4.4800
  • 1,000 $3.4100
  • 2,000 $2.9600
$2.9600 / $7.4700 Buy Now
Powell Electronics Variable Height PCB Header Strips, 0.100 Min Qty: 1 360
  • 1 $7.4700
  • 10 $7.3200
  • 25 $7.1700
  • 50 $6.9100
  • 100 $5.1600
$5.1600 / $7.4700 Buy Now
DISTI # 000000000000062652
Sager Headers & Wire Housings Tiger Buy Socket Strip with PCB Tails, .100 Pitch Min Qty: 1 545
  • 1 $7.4700
  • 10 $7.3200
  • 25 $7.1700
  • 50 $6.9100
  • 100 $5.1600
  • 500 $4.4800
$4.4800 / $7.4700 Buy Now
Master Electronics   RoHS: Compliant 0
  • 5 $9.4200
  • 25 $7.6600
  • 50 $7.5400
  • 100 $5.6300
  • 250 $5.3900
  • 500 $4.6000
  • 1,000 $3.4900
  • 2,500 $3.0400
$3.0400 / $9.4200 Buy Now

Part Details for SSW-150-22-S-S

SSW-150-22-S-S CAD Models

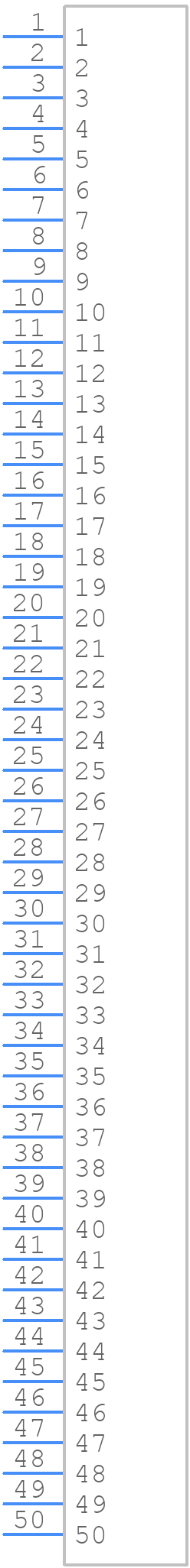

  • Part Symbol

    Part Symbol

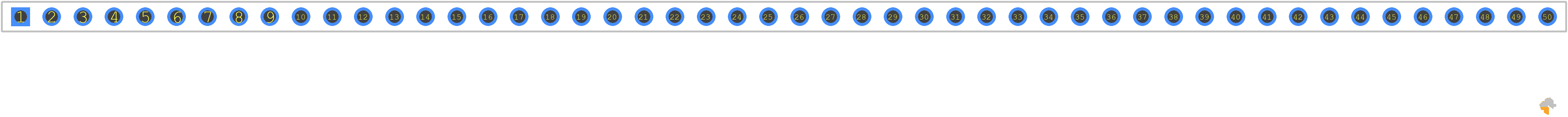

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SSW-150-22-S-S Part Data Attributes

Parametric Data
SSW-150-22-S-S Samtec Inc
Buy Now Datasheet
Compare Parts:
SSW-150-22-S-S Samtec Inc Board Connector, 50 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Locking, Black Insulator, Socket,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Body Breadth 0.095 inch
Body Depth 0.335 inch
Body Length 5.02 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD OVER NICKEL
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 10 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 100 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max .834 N
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 6.3 A
Reference Standard UL, CSA
Terminal Length 0.194 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 50
UL Flammability Code 94V-0
