Memory / Flash Memories / SST49LF080A-33-4C-WHE
Datasheets
SST49LF080A-33-4C-WHE by:

1M X 8 FLASH 3V PROM, 120 ns, PDSO32, 8 X 14 MM, ROHS COMPLIANT, MO-142BA, TSOP-32

Part Details for SST49LF080A-33-4C-WHE by Microchip Technology Inc

Results Overview of SST49LF080A-33-4C-WHE by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Computing and Data Storage

SST49LF080A-33-4C-WHE Information

SST49LF080A-33-4C-WHE by Microchip Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for SST49LF080A-33-4C-WHE

Part # Distributor Description Stock Price Buy
DISTI # 70388551
RS 3.0 to 3.6V 8Mbit LPC Firmware Flash Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 0
  • 1 $16.7500
  • 5 $15.9200
  • 10 $15.0800
  • 20 $14.2400
$14.2400 / $16.7500 RFQ
Bristol Electronics   Min Qty: 1 51
  • 1 $11.2000
  • 4 $7.2800
  • 8 $5.6000
  • 24 $5.2270
  • 49 $4.8530
$4.8530 / $11.2000 Buy Now
Quest Components FLASH, 1MX8, 120NS, PDSO32 40
  • 1 $15.0000
  • 4 $7.5000
  • 28 $7.0000
$7.0000 / $15.0000 Buy Now
NAC 3.0V to 3.6V 8Mbit LPC Firmware Flash - Package: 32 TSOP 8x14mm TRAY RoHS: Compliant Min Qty: 1 Package Multiple: 208 Container: Tray 0
RFQ

Part Details for SST49LF080A-33-4C-WHE

SST49LF080A-33-4C-WHE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

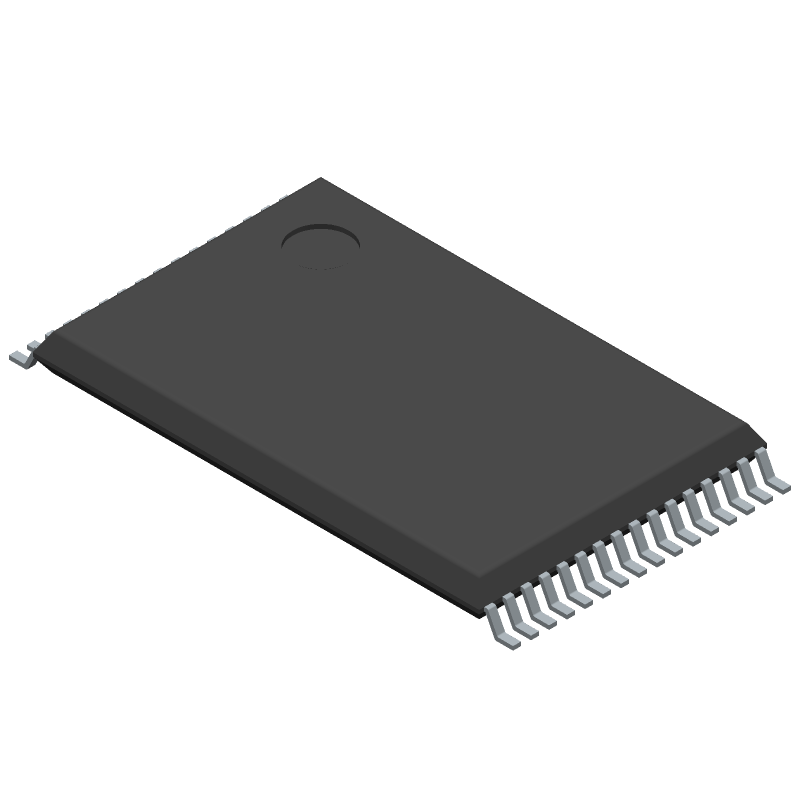

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SST49LF080A-33-4C-WHE Part Data Attributes

Parametric Data
SST49LF080A-33-4C-WHE Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
SST49LF080A-33-4C-WHE Microchip Technology Inc 1M X 8 FLASH 3V PROM, 120 ns, PDSO32, 8 X 14 MM, ROHS COMPLIANT, MO-142BA, TSOP-32
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code TSOP1
Pin Count 32
Reach Compliance Code compliant
ECCN Code 3A991.B.1.A
HTS Code 8542.32.00.51
Samacsys Manufacturer Microchip
Access Time-Max 120 ns
Boot Block TOP
Clock Frequency-Max (fCLK) 33 MHz
Command User Interface YES
Data Polling YES
Data Retention Time-Min 100
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-G32
JESD-609 Code e3
Length 12.4 mm
Memory Density 8388608 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Sectors/Size 256
Number of Terminals 32
Number of Words 1048576 words
Number of Words Code 1000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 1MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP32,.56,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Programming Voltage 3 V
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Sector Size 4K
Standby Current-Max 0.0001 A
Supply Current-Max 0.024 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Toggle Bit YES
Type NOR TYPE
Width 8 mm

Alternate Parts for SST49LF080A-33-4C-WHE

This table gives cross-reference parts and alternative options found for SST49LF080A-33-4C-WHE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SST49LF080A-33-4C-WHE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
SST49LF008A-33-4C-WHE-T Microchip Technology Inc Check for Price IC,EEPROM,NOR FLASH,1MX8,CMOS,TSSOP,32PIN,PLASTIC SST49LF080A-33-4C-WHE vs SST49LF008A-33-4C-WHE-T
SST49LF008C-33-4C-WHE Microchip Technology Inc Check for Price 1M X 8 FLASH 3V PROM, 11 ns, PDSO32, 8 X 14 MM, ROHS COMPLIANT, MO-142BA, TSOP1-32 SST49LF080A-33-4C-WHE vs SST49LF008C-33-4C-WHE
SST49LF008C-33-4C-WH Silicon Storage Technology Check for Price Flash, 1MX8, 11ns, PDSO32, 8 X 14 MM, MO-142BA, TSOP1-32 SST49LF080A-33-4C-WHE vs SST49LF008C-33-4C-WH
SST49LF080A-33-4C-WHE-T Microchip Technology Inc Check for Price SST49LF080A-33-4C-WHE-T SST49LF080A-33-4C-WHE vs SST49LF080A-33-4C-WHE-T
Part Number Manufacturer Composite Price Description Compare
SST49LF008A-33-4C-EIE Microchip Technology Inc $3.8880 1M X 8 FLASH 3V PROM, 120 ns, PDSO40, 10 X 20 MM, ROHS COMPLIANT, MO-142CD, TSOP1-40 SST49LF080A-33-4C-WHE vs SST49LF008A-33-4C-EIE
SST49LF080A-33-4C-WH Silicon Storage Technology Check for Price Flash, 1MX8, 11ns, PDSO32, 8 X 14 MM, MO-142BA, TSOP1-32 SST49LF080A-33-4C-WHE vs SST49LF080A-33-4C-WH
M27V801-180K1 STMicroelectronics Check for Price 1MX8 OTPROM, 180ns, PQCC32, PLASTIC, LCC-32 SST49LF080A-33-4C-WHE vs M27V801-180K1
AT27C080-10JI Atmel Corporation Check for Price OTP ROM, 1MX8, 100ns, CMOS, PQCC32, PLASTIC, MS-016AE, LCC-32 SST49LF080A-33-4C-WHE vs AT27C080-10JI
LHF00L07 Sharp Corp Check for Price Flash, 1MX8, 15ns, PQCC32, 11.40 X 14 MM, PLASTIC, LCC-32 SST49LF080A-33-4C-WHE vs LHF00L07
AM27C080-255JI AMD Check for Price OTP ROM, 1MX8, 250ns, CMOS, PQCC32, PLASTIC, LCC-32 SST49LF080A-33-4C-WHE vs AM27C080-255JI
M27C801-90K1X STMicroelectronics Check for Price 1MX8 OTPROM, 90ns, PQCC32, PLASTIC, LCC-32 SST49LF080A-33-4C-WHE vs M27C801-90K1X
M27C801-150K1X STMicroelectronics Check for Price 1MX8 OTPROM, 100ns, PQCC32, PLASTIC, LCC-32 SST49LF080A-33-4C-WHE vs M27C801-150K1X
MX23C8000QC-15 Macronix International Co Ltd Check for Price MASK ROM, 1MX8, 150ns, CMOS, PQCC32, PLASTIC, MS-016, LCC-32 SST49LF080A-33-4C-WHE vs MX23C8000QC-15
M27C801-45K6X STMicroelectronics Check for Price 1MX8 OTPROM, 45ns, PQCC32, PLASTIC, LCC-32 SST49LF080A-33-4C-WHE vs M27C801-45K6X

SST49LF080A-33-4C-WHE Related Parts

SST49LF080A-33-4C-WHE Frequently Asked Questions (FAQ)

  • The SST49LF080A-33-4C-WHE has an operating temperature range of -40°C to +85°C.

  • The hold pin (HOLD#) should be driven low to allow read and write operations. When driven high, the device enters a 'hold' state, allowing the host to pause the current operation.

  • The write protect pin (WP#) is used to prevent accidental writes to the device. When driven low, the device is write-protected, and when driven high, the device is writable.

  • The device's status can be determined by monitoring the ready/busy pin (RDY/BUSY#). When low, the device is busy, and when high, the device is ready.

  • The recommended power-up sequence is to apply VCC first, followed by the input signals (e.g., CE#, OE#, WE#, etc.).
