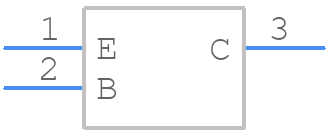

Part Symbol
-
Footprint
-

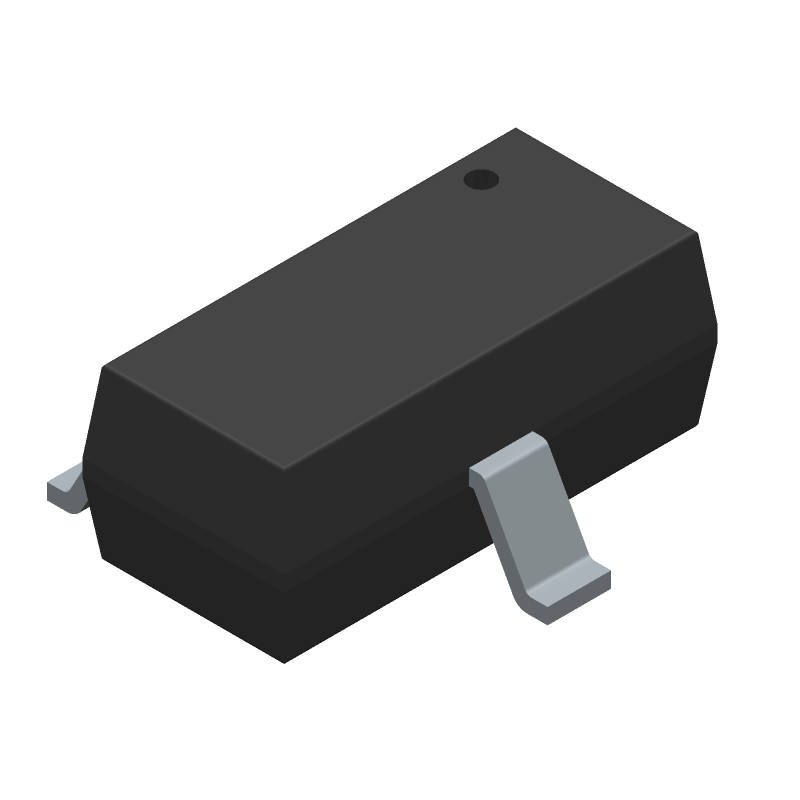

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SST4401T116 by ROHM Semiconductor
Results Overview of SST4401T116 by ROHM Semiconductor
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
SST4401T116 Information
SST4401T116 by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SST4401T116
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
SST4401T116CT-ND
|
DigiKey | TRANS NPN 40V 0.6A SST3 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3339 In Stock |
|
$0.0625 / $0.4400 | Buy Now |
|
DISTI #
SST4401T116
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 40 V, 150 mA, 200 mW, SOT-23, Surface Mount - Tape and Reel (Alt: SST4401T116) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
755-SST4401T116
|
Mouser Electronics | Bipolar Transistors - BJT NPN 40V 0.6A RoHS: Compliant | 6769 |
|
$0.0640 / $0.4300 | Buy Now |
|
DISTI #
63345948
|
Verical | Trans GP BJT NPN 40V 0.6A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 562 Package Multiple: 1 Date Code: 2201 | Americas - 2653 |
|
$0.1262 / $0.1345 | Buy Now |
|
DISTI #
62443796
|
Verical | Trans GP BJT NPN 40V 0.6A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 674 Package Multiple: 1 Date Code: 2221 | Americas - 2575 |
|
$0.1620 / $0.2560 | Buy Now |
|
|
Bristol Electronics | 18262 |
|
RFQ | ||
|
|
Quest Components | 600 MA, 40 V, NPN, SI, SMALL SIGNAL TRANSISTOR | 6272 |
|
$0.0810 / $0.4050 | Buy Now |
|
|
Quest Components | 600 MA, 40 V, NPN, SI, SMALL SIGNAL TRANSISTOR | 2122 |
|
$0.1480 / $0.7400 | Buy Now |
|
|
Quest Components | 600 MA, 40 V, NPN, SI, SMALL SIGNAL TRANSISTOR | 1793 |
|
$0.0628 / $0.1396 | Buy Now |
|
|
Quest Components | 600 MA, 40 V, NPN, SI, SMALL SIGNAL TRANSISTOR | 1140 |
|
$0.0402 / $0.1340 | Buy Now |
Part Details for SST4401T116
SST4401T116 CAD Models
SST4401T116 Part Data Attributes
|
|
SST4401T116
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
SST4401T116
ROHM Semiconductor
Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SST3, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Collector Current-Max (IC) | 0.6 A | |
| Collector-Base Capacitance-Max | 7 pF | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 40 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz | |
| Turn-off Time-Max (toff) | 255 ns | |
| Turn-on Time-Max (ton) | 35 ns | |
| VCEsat-Max | 0.6 V |
