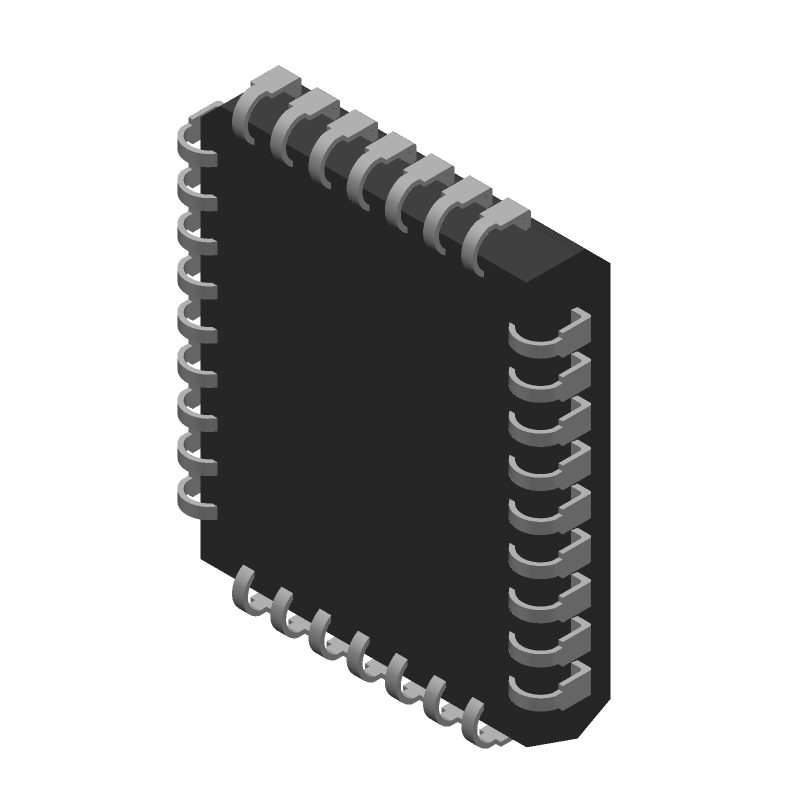

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SST39VF020-70-4I-NHE by Silicon Storage Technology
Results Overview of SST39VF020-70-4I-NHE by Silicon Storage Technology
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
SST39VF020-70-4I-NHE Information
SST39VF020-70-4I-NHE by Silicon Storage Technology is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for SST39VF020-70-4I-NHE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip 1 Exchange | INSTOCK | 175 |
|
RFQ |
Part Details for SST39VF020-70-4I-NHE
SST39VF020-70-4I-NHE CAD Models
SST39VF020-70-4I-NHE Part Data Attributes
|
|
SST39VF020-70-4I-NHE
Silicon Storage Technology
Buy Now
Datasheet
|
Compare Parts:
SST39VF020-70-4I-NHE
Silicon Storage Technology
Flash, 256KX8, 70ns, PQCC32, ROHS COMPLIANT, PLASTIC, MS-016AE, LCC-32
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | SILICON STORAGE TECHNOLOGY INC | |
| Part Package Code | QFJ | |
| Package Description | ROHS COMPLIANT, PLASTIC, MS-016AE, LCC-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | SILICON STORAGE TECHNOLOGY | |
| Access Time-Max | 70 ns | |
| Command User Interface | YES | |
| Data Polling | YES | |
| JESD-30 Code | R-PQCC-J32 | |
| JESD-609 Code | e3 | |
| Length | 13.97 mm | |
| Memory Density | 2097152 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 8 | |
| Number of Functions | 1 | |
| Number of Sectors/Size | 64 | |
| Number of Terminals | 32 | |
| Number of Words | 262144 words | |
| Number of Words Code | 256000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC32,.5X.6 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 2.7 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.556 mm | |
| Sector Size | 4K | |
| Standby Current-Max | 0.000015 A | |
| Supply Current-Max | 0.03 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Toggle Bit | YES | |
| Type | NOR TYPE | |
| Width | 11.43 mm |
Alternate Parts for SST39VF020-70-4I-NHE
This table gives cross-reference parts and alternative options found for SST39VF020-70-4I-NHE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of SST39VF020-70-4I-NHE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SST39VF020-70-4I-WHE-T | Microchip Technology Inc | Check for Price | Flash, 256KX8, 70ns, PDSO32 | SST39VF020-70-4I-NHE vs SST39VF020-70-4I-WHE-T |
| SST39VF020-70-4C-WHE | Microchip Technology Inc | Check for Price | 256K X 8 FLASH 2.7V PROM, 70 ns, PDSO32, 8 X 14 MM, ROHS COMPLIANT, MO-142BA, TSOP1-32 | SST39VF020-70-4I-NHE vs SST39VF020-70-4C-WHE |
