Memory / Flash Memories / SST26VF032BA-104I/MF
Datasheets
SST26VF032BA-104I/MF by: Microchip Technology Inc

FLASH 2.7V PROM

Part Details for SST26VF032BA-104I/MF by Microchip Technology Inc

Results Overview of SST26VF032BA-104I/MF by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

SST26VF032BA-104I/MF Information

SST26VF032BA-104I/MF by Microchip Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for SST26VF032BA-104I/MF

Part # Distributor Description Stock Price Buy
DISTI # 53X3514
Newark Sqi Flash, 32Mbit, 104Mhz, Wdfn-8, Flash Memory Type:Serial Nor, Memory Configuration:-, Interfaces:Spi, Sdi, Sqi, Ic Case/Package:Wdfn, No. Of Pins:8Pins, Clock Frequency Max:104Mhz, Access Time:-, Supply Voltage Min:2.7V Rohs Compliant: Yes |Microchip SST26VF032BA-104I/MF RoHS: Compliant Min Qty: 294 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.3600
$2.3600 Buy Now
DISTI # SST26VF032BA-104I/MF-ND
DigiKey IC FLASH 32MBIT SPI/QUAD 8WDFN Min Qty: 1 Lead time: 4 Weeks Container: Tube 420
In Stock
  • 1 $2.5300
  • 25 $2.4616
  • 100 $2.3587
$2.3587 / $2.5300 Buy Now
DISTI # SST26VF032BA-104I/MF
Avnet Americas Flash Serial 3V 32Mbit 32M x 1Bit 8-Pin WDFN EP - Rail/Tube (Alt: SST26VF032BA-104I/MF) RoHS: Compliant Min Qty: 294 Package Multiple: 98 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 1 $2.4600
  • 25 $2.3900
  • 100 $2.2900
$2.2900 / $2.4600 Buy Now
DISTI # 579-T26VF032BA104IMF
Mouser Electronics NOR Flash 32Mb 2.7V-3.6V SQI Flash Memory RoHS: Compliant 4464
  • 1 $2.4600
  • 25 $2.3900
  • 98 $2.2900
$2.2900 / $2.4600 Buy Now
DISTI # V99:2348_06508015
Arrow Electronics NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8-Pin WDFN EP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2132 Americas - 3
  • 1 $3.7975
  • 25 $3.7276
  • 98 $3.6278
$3.6278 / $3.7975 Buy Now
DISTI # SST26VF032BA-104I/MF
Microchip Technology Inc 32 Mbit SQI flash, TDFN-S, Projected EOL: 2039-02-03 COO: Taiwan, Thailand ECCN: 3A991.b.1.a RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 201245
  • 1 $2.4600
  • 25 $2.3900
  • 100 $2.2900
  • 1,000 $2.1600
  • 5,000 $2.0400
$2.0400 / $2.4600 Buy Now
Onlinecomponents.com Flash Memory - Serial (SPI, Dual SPI, Quad SPI) - 2.5V/3V/3.3V - 32 Mbit (4M x 8) - 8-Pin WDFN EP - Tube RoHS: Compliant 362 In Stock
201194 Factory Stock
  • 10 $3.5800
  • 25 $3.5200
  • 50 $3.4700
  • 74 $3.4200
  • 147 $2.5800
  • 221 $2.4000
  • 294 $2.3500
$2.3500 / $3.5800 Buy Now
DISTI # 82783769
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8-Pin WDFN EP Tube RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 2341 Americas - 392
  • 13 $2.0000
  • 50 $1.9800
$1.9800 / $2.0000 Buy Now
DISTI # 65657309
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8-Pin WDFN EP Tube RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2245 Americas - 360
  • 20 $4.6554
  • 30 $4.4955
  • 50 $4.4317
  • 80 $4.2911
  • 150 $3.1813
$3.1813 / $4.6554 Buy Now
DISTI # 79356105
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8-Pin WDFN EP Tube RoHS: Compliant Min Qty: 196 Package Multiple: 98 Americas - 294
  • 196 $4.1732
$4.1732 Buy Now
DISTI # 59283115
Verical NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 8-Pin WDFN EP Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2132 Americas - 3
  • 3 $3.7975
  • 25 $3.7276
  • 98 $3.6278
$3.6278 / $3.7975 Buy Now
Rochester Electronics SST26VF032BA - 32Mb 2.3V TO 3.6V SQI Flash Memory RoHS: Compliant Status: Active Min Qty: 1 100
  • 25 $2.2600
  • 100 $2.1500
  • 500 $2.0300
  • 1,000 $1.9200
  • 10,000 $1.8100
$1.8100 / $2.2600 Buy Now
NAC 32Mb 2.3V TO 3.6V SQI Flash Memory - Package: 8 TDFN-S 6x5x0.8mm TUBE RoHS: Compliant Min Qty: 1 Package Multiple: 98 Container: Tube 294
  • 1 $2.6500
  • 100 $2.3900
  • 500 $2.2100
  • 1,000 $2.1500
$2.1500 / $2.6500 Buy Now
DISTI # SST26VF032BA-104I/MF
Avnet Silica Flash Serial 3V 32Mbit 32M x 1Bit 8Pin WDFN EP (Alt: SST26VF032BA-104I/MF) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # SST26VF032BA-104I/MF
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 392
  • 1 $2.0400
  • 10 $2.0000
  • 50 $1.9800
  • 1,176 $1.9700
$1.9700 / $2.0400 Buy Now
DISTI # SST26VF032BA-104I/MF
EBV Elektronik Flash Serial 3V 32Mbit 32M x 1Bit 8Pin WDFN EP (Alt: SST26VF032BA-104I/MF) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
LCSC SPI 104MHz WSON-8-EP(5x6) NOR FLASH ROHS 10
  • 1 $3.4035
  • 10 $3.3220
  • 30 $3.2677
  • 100 $3.2119
$3.2119 / $3.4035 Buy Now
Master Electronics Flash Memory - Serial (SPI, Dual SPI, Quad SPI) - 2.5V/3V/3.3V - 32 Mbit (4M x 8) - 8-Pin WDFN EP - Tube RoHS: Compliant 362 In Stock
201194 Factory Stock
  • 10 $3.5800
  • 25 $3.5200
  • 50 $3.4700
  • 74 $3.4200
  • 147 $2.5800
  • 221 $2.4000
  • 294 $2.3500
$2.3500 / $3.5800 Buy Now
Vyrian Memory ICs 25975
RFQ

Part Details for SST26VF032BA-104I/MF

SST26VF032BA-104I/MF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

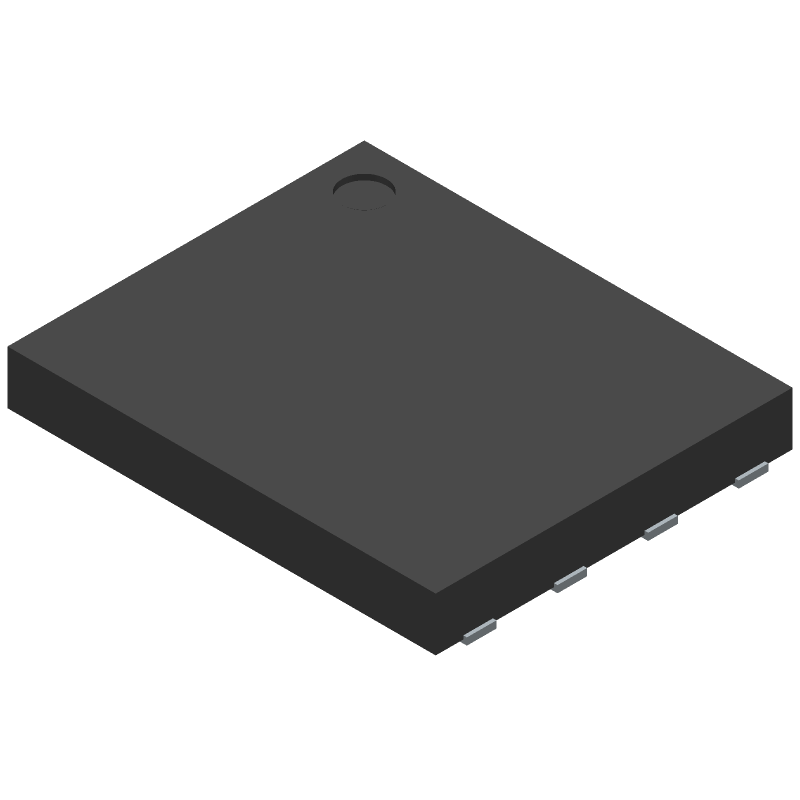

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SST26VF032BA-104I/MF Part Data Attributes

Parametric Data
SST26VF032BA-104I/MF Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
SST26VF032BA-104I/MF Microchip Technology Inc FLASH 2.7V PROM
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code 3A991.B.1.A
HTS Code 8542.32.00.51
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Clock Frequency-Max (fCLK) 104 MHz
Data Retention Time-Min 100
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-N8
JESD-609 Code e3
Length 6 mm
Memory Density 33554432 bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 8
Number of Words 4194304 words
Number of Words Code 4000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 4MX8
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Parallel/Serial SERIAL
Programming Voltage 3 V
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 0.8 mm
Serial Bus Type SPI
Standby Current-Max 0.000045 A
Supply Current-Max 0.03 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position DUAL
Type NOR TYPE
Width 5 mm
Write Protection HARDWARE/SOFTWARE

SST26VF032BA-104I/MF Frequently Asked Questions (FAQ)

  • The SST26VF032BA-104I/MF has an operating temperature range of -40°C to +85°C.

  • The HOLD# signal should be kept high during power-up and power-down to prevent any unwanted data corruption or bus contention.

  • The recommended clock frequency for the SST26VF032BA-104I/MF is up to 104 MHz.

  • The WP# signal should be tied high to enable write operations. Tying it low will put the device in a read-only mode.

  • The RESET# signal is used to reset the device and put it in a known state. It should be asserted low for at least 10 ns to ensure a proper reset.
