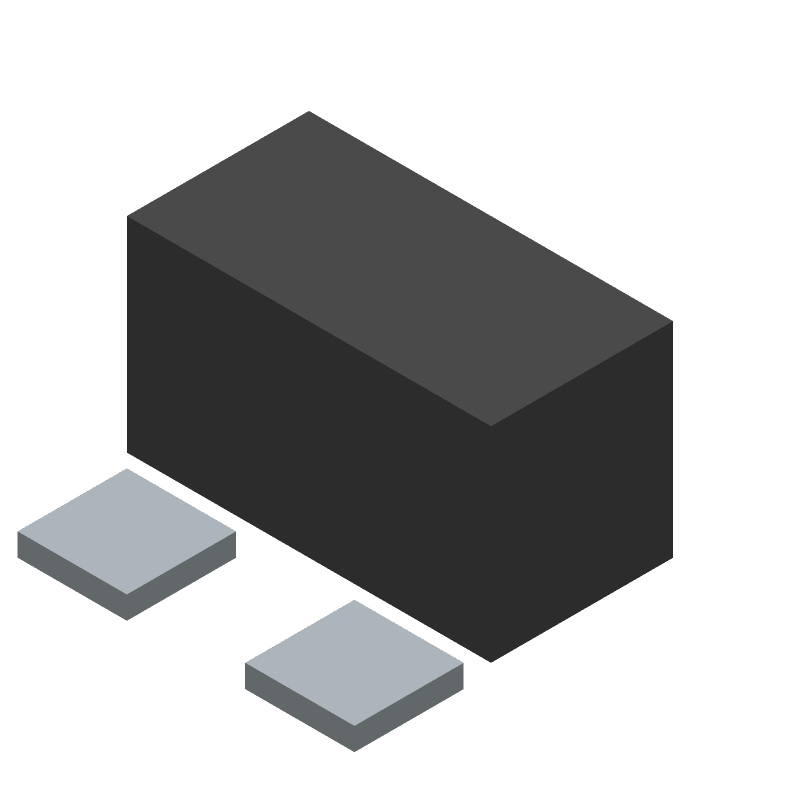

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for SSM3J15FS,LF(T by Toshiba America Electronic Components
Results Overview of SSM3J15FS,LF(T by Toshiba America Electronic Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
SSM3J15FS,LF(T Information
SSM3J15FS,LF(T by Toshiba America Electronic Components is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for SSM3J15FS,LF(T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AM3019
|
Newark | Mosfet, P-Channel, 30V, 0.1A, Sot-416 Rohs Compliant: Yes |Toshiba SSM3J15FS, LF(T RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2390 |
|
$0.0380 / $0.1900 | Buy Now |
|
DISTI #
83692563
|
Verical | Trans MOSFET P-CH Si 30V 0.1A 3-Pin SSM T/R RoHS: Compliant Min Qty: 1127 Package Multiple: 1 Date Code: 2427 | Americas - 3905 |
|
$0.0523 / $0.0699 | Buy Now |
|
|
Quest Components | 771 |
|
$0.2120 / $0.5300 | Buy Now |
Part Details for SSM3J15FS,LF(T
SSM3J15FS,LF(T CAD Models
SSM3J15FS,LF(T Part Data Attributes
|
|
SSM3J15FS,LF(T
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
SSM3J15FS,LF(T
Toshiba America Electronic Components
Small Signal Field-Effect Transistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Toshiba | |
| Configuration | SINGLE WITH BUILT-IN DIODE AND RESISTOR | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 0.1 A | |
| Drain-source On Resistance-Max | 12 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 3.5 pF | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation Ambient-Max | 0.1 W | |
| Power Dissipation-Max (Abs) | 0.1 W | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
SSM3J15FS,LF(T Frequently Asked Questions (FAQ)
-
Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
-
Toshiba recommends using a soldering iron with a temperature of 350°C or less, and a soldering time of 3 seconds or less. The device should be soldered using a fluxless soldering process.
-
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it is recommended to keep the input voltage within the recommended operating range of 3.3V ± 10% to ensure reliable operation.
-
Toshiba recommends using an ESD wrist strap or mat during handling and assembly, and storing the devices in an ESD-protected package. The device has an internal ESD protection diode, but external protection is still recommended.
-
The recommended operating temperature range for the SSM3J15FS,LF is -40°C to 125°C. However, the device can operate up to 150°C with derated specifications.
